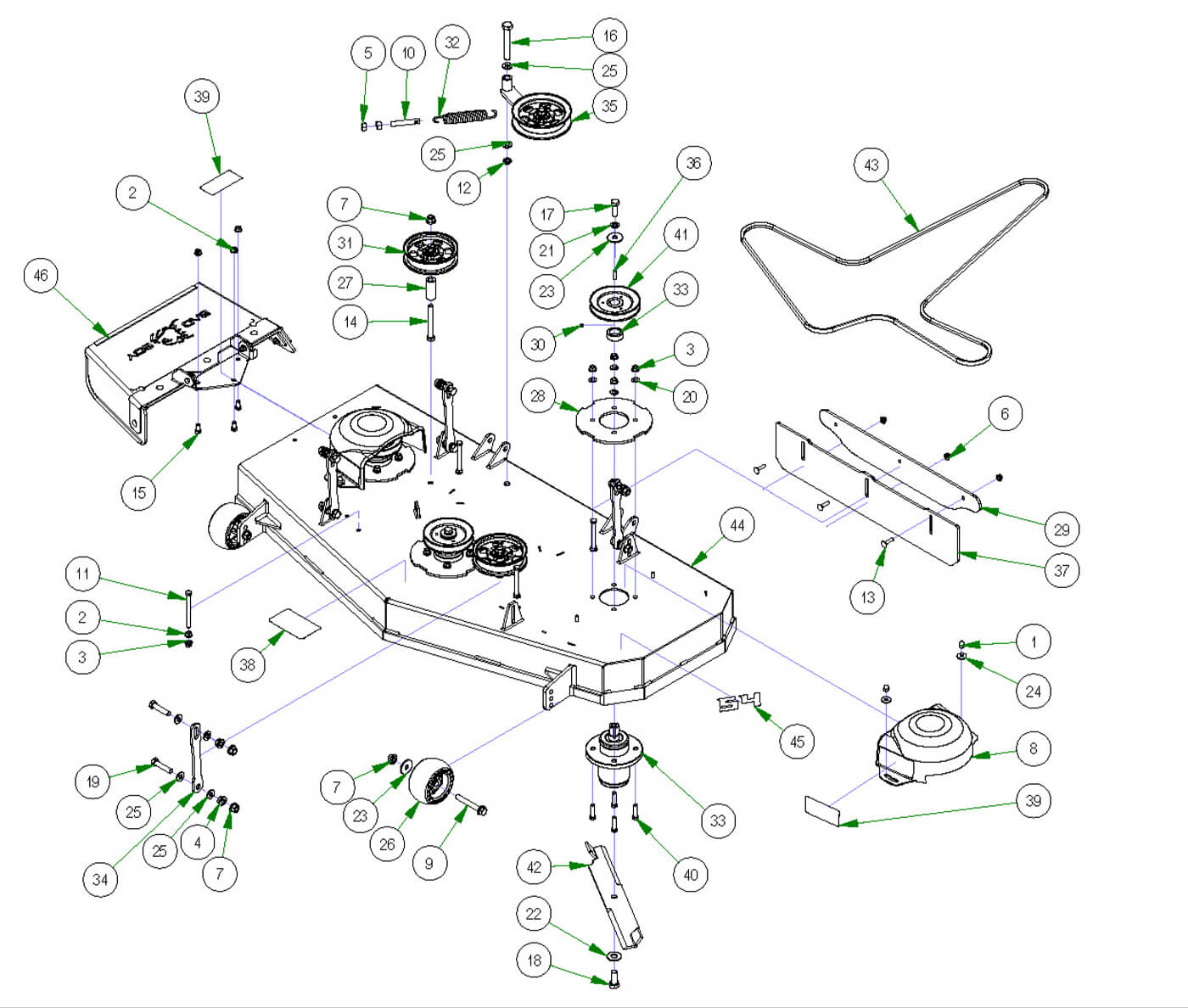

54" Deck
Parts Index
- 1 Acorn Nut-Pulley Cover (Qty 4)
- 2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 7)
- 3 3/8 Nylock Flange Nut (Qty 16)
- 4 1/2-13 Hex Fange Nuts Zinc w/ (Qty 8)
- 5 1/2-13 Hex Nuts Zinc (Qty 2)
- 6 5/16-18 Nylon Flange Nut (Qty 3)
- 7 1/2-13 Nylon Insert Flange Nut (Qty 14)
- 8 Raider Pulley Cover (Qty 2)
- 9 Deck Wheel Bolt (Qty 4)
- 10 All Thread (Qty 1)
- 11 3/8-16 X 4-1/4 GR 5 Hex Bolt (Qty 4)
- 12 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 13 5/16-18 X 1-1/4 Carriage Bolt (Qty 3)
- 14 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 2)
- 15 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 16 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 17 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 18 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 19 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 8)
- 21 1/2 Lockwasher Zinc (Qty 3)
- 22 5/8 Flat Washer (Qty 3)
- 23 1/2 Belleville Washer #K2000-G (Qty 7)
- 24 .360 ID Black Plastic Washer (Qty 4)
- 25 .505 ID X 1 OD X .128 THK Washer (Qty 18)
- 26 Deck Wheel (Qty 4)
- 27 2019 Stand On Stationary Idler Spacer (Qty 2)
- 28 Deck Spindle Support Plate 60"--Orange (Qty 3)
- 29 2023 4' & 5' Striping Kit Plate--Orange (Qty 1)
- 30 5/16-24 x 1/4 Set Screw (Qty 3)
- 31 5 3/4 Idler Pulley-Capitol (Qty 2)
- 32 2020 Cable ACS Torsion Spring (Qty 1)
- 33 Commercial Cast Iron Spindle (Qty 3)
- 35 2019 Revolt Deck Idler (Qty 1)
- 36 1/4 x 1 Square Key (Qty 3)
- 37 2023 MZ Stripe Kit Rubber (Qty 1)
- 38 2017 MZ Magnum 48"/ 42" Deck Route Decal (Qty 1)
- 39 Danger Decal-Spindle/Discharge (Qty 3)
- 40 3/8 x 1 1/2 Bolt (Qty 13)
- 41 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (Qty 3)
- 42 54" Blade for Avenger/ZT/Mav/Outlaw/Revolt (Qty 3)
- 43 2020 54" Walk Behind / 48" MZ Deck Belt (Qty 1)
- 45 MY24 54" Deck Decal (Qty 1)
- 46 2017 54"/60" ZT/Mav Chute Assembly (Qty 1)
-
1#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 7Regular price $1.49 USDRegular priceUnit price per
-
3#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 16Regular price $1.49 USDRegular priceUnit price per
-
4#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
5#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
6#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
7#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 14Regular price $1.39 USDRegular priceUnit price per
-
8#014-4000-00
Pulley Cover
Qty Used: 2Regular price $26.53 USDRegular priceUnit price per
-
9#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 4Regular price $5.89 USDRegular priceUnit price per
-
10#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
11#018-2005-00
3/8-16 X 4-1/4 GR 5 Hex Bolt
Qty Used: 4Regular price $2.59 USDRegular priceUnit price per
-
12#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
13#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
14#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
15#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
16#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
17#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
18#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
19#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 8Regular price $1.39 USDRegular priceUnit price per
-
21#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
22#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
23#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 7Regular price $4.69 USDRegular priceUnit price per
-
24#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
25#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 18Regular price $0.69 USDRegular priceUnit price per
-
26#022-1000-00
Deck Wheel
Qty Used: 4Regular price $15.99 USDRegular priceUnit price per
-
27#025-0032-00
2019 Stand On Stationary Idler Spacer
Qty Used: 2Regular price $7.69 USDRegular priceUnit price per
-
28#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 3Regular price $13.26 USDRegular priceUnit price per
-
29#026-0307-00
2023 4' & 5' Striping Kit Plate--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
30#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
31#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 2Regular price $33.16 USDRegular priceUnit price per
-
32#034-2000-00
2020 Cable ACS Torsion Spring
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
33#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 3Regular price $291.91 USDRegular priceUnit price per
-
35#039-6945-19
2019 Revolt Deck Idler
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
36#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
37#084-5005-00
2023 MZ Stripe Kit Rubber
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
38#091-0393-00
2017 MZ Magnum 48"/ 42" Deck Route Decal
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
39#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 3Regular price $2.91 USDRegular priceUnit price per
-
40#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 13Regular price $0.79 USDRegular priceUnit price per
-
41#033-6006-00
5.25" Deck Pulley-54" ZT/Maverick/Outlaw
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
42#038-0001-00
54\" Blade for Avenger/ZT/Mav/Outlaw/Revolt
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-

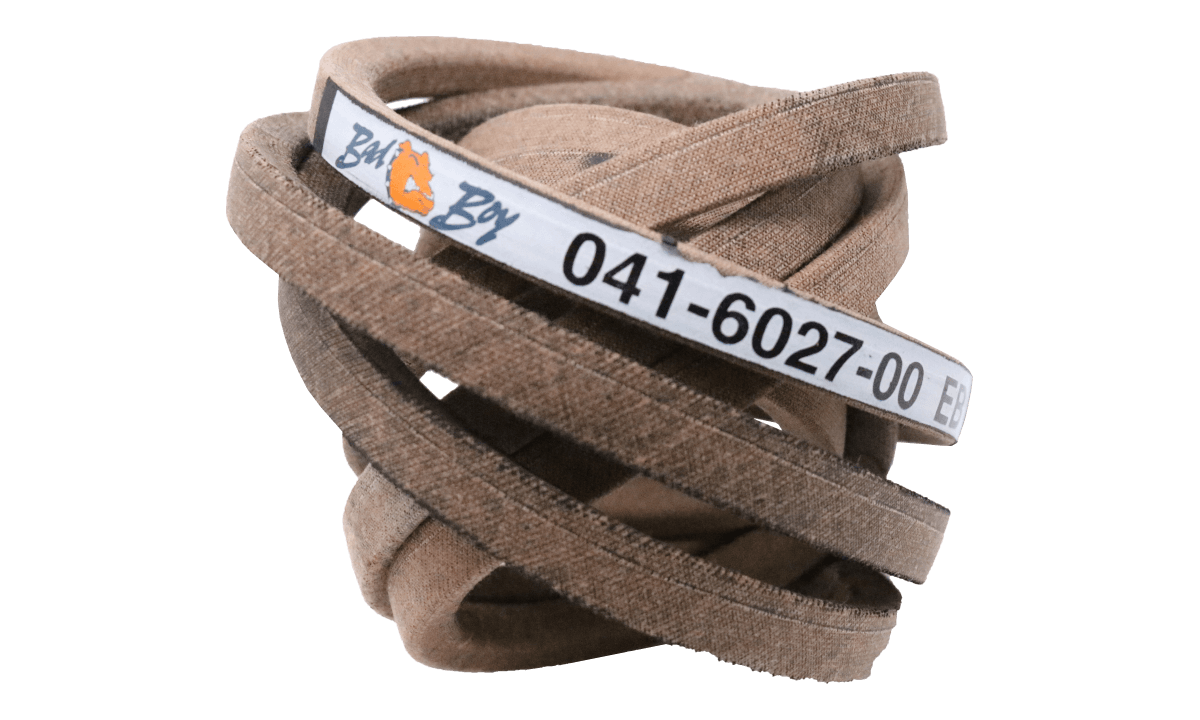

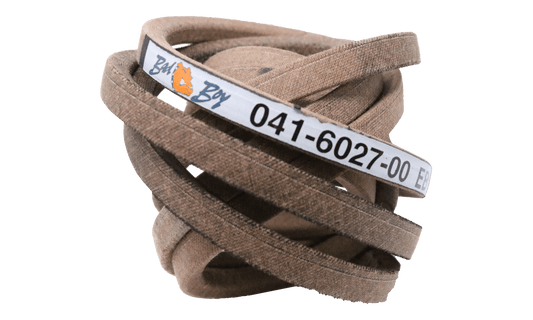

43#041-6027-00
2020 54" Walk Behind / 48" MZ Deck Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
45#091-0504-00
MY24 54" Deck Decal
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
46#210-6005-98
2017 54"/60" ZT/Mav Chute Assembly
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
