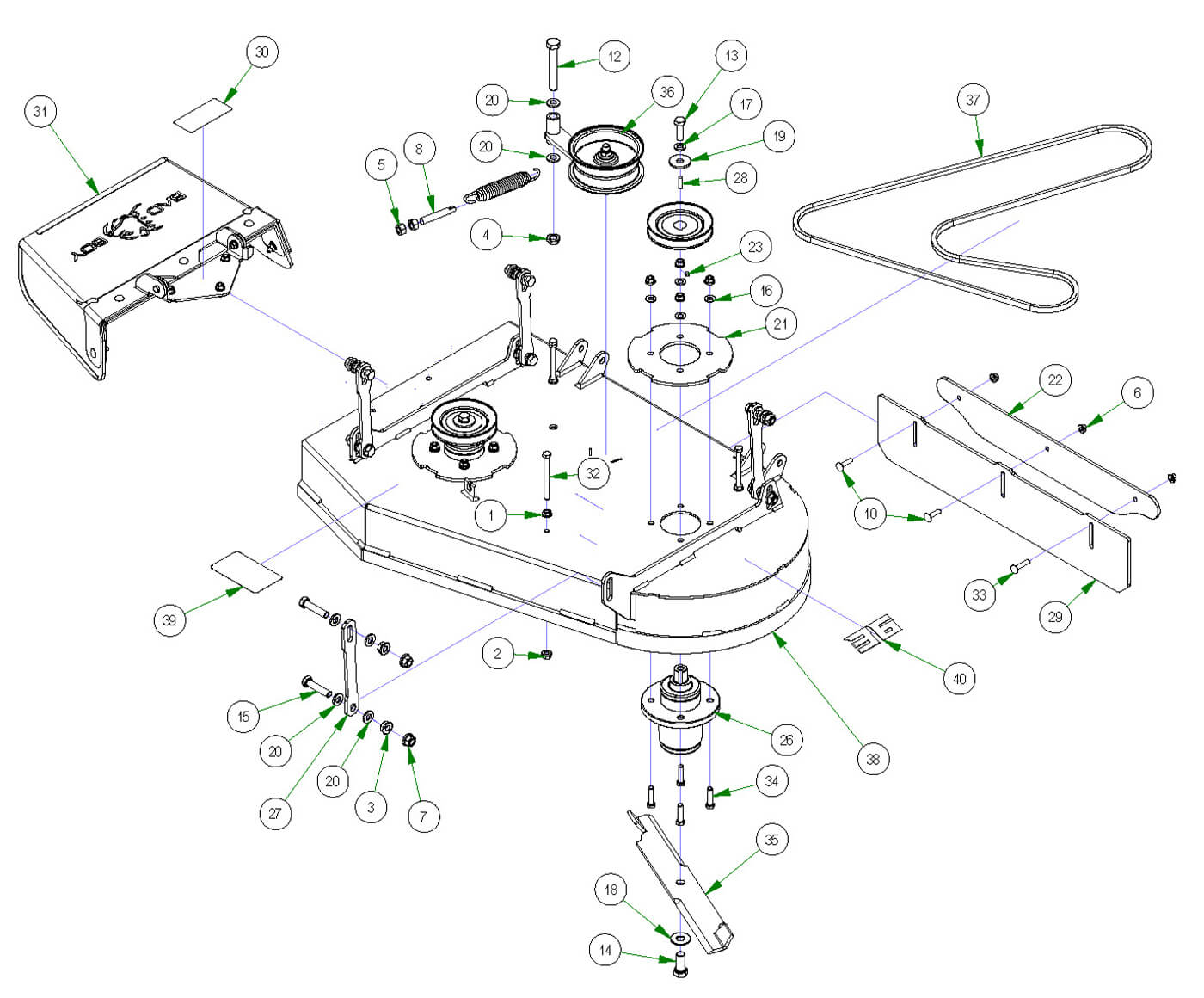

36" Deck
Parts Index
- 1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 7)
- 2 3/8 Nylock Flange Nut (Qty 16)
- 3 1/2-13 Hex Fange Nuts Zinc w/ (Qty 18)
- 4 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 5 1/2-13 Hex Nuts Zinc (Qty 2)
- 6 5/16-18 Nylon Flange Nut (Qty 3)
- 7 1/2-13 Nylon Insert Flange Nut (Qty 8)
- 8 All Thread (Qty 1)
- 9 3/8-16 X 4-1/4 GR 5 Hex Bolt (Qty 2)
- 10 5/16-18 X 1-1/4 Carriage Bolt (Qty 2)
- 11 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 12 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 13 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 14 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 2)
- 15 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 8)
- 17 1/2 Lockwasher Zinc (Qty 3)
- 18 5/8 Flat Washer (Qty 2)
- 19 1/2 Belleville Washer #K2000-G (Qty 3)
- 20 .505 ID X 1 OD X .128 THK Washer (Qty 18)
- 21 Deck Spindle Support Plate 60"--Orange (Qty 2)
- 22 2023 4' & 5' Striping Kit Plate--Orange (Qty 1)
- 23 5/16-24 x 1/4 Set Screw (Qty 2)
- 24 5" Spindle Deck Pulley - DB-80 (Qty 2)
- 25 2015 Deck Idler Spring (Qty 1)
- 26 Commercial Cast Iron Spindle (Qty 2)
- 28 1/4 x 1 Square Key (Qty 2)
- 29 2023 MZ Stripe Kit Rubber (Qty 1)
- 30 Danger Decal-Spindle/Discharge (Qty 1)
- 31 2013 48" ZT/Chute Assembly (Qty 1)
- 32 3/8 x 4 Hex Tap Bolt - (Qty 2)
- 33 5/16-18 X 1-1/2 Carriage Bolt (Qty 1)
- 34 3/8 x 1 1/2 Bolt (Qty 8)
- 35 54" Blade for Avenger/ZT/Mav/Outlaw/Revolt (Qty 2)
- 36 36" Walkbehind Deck Idler Assembly (Qty 1)
- 37 2020 36" Revolt / 2020 36" Walk Behind Deck Belt (Qty 1)
- 39 2017 Walk Behind 36" Deck Belt Route (Qty 1)
-
1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 7Regular price $1.49 USDRegular priceUnit price per
-
2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 16Regular price $1.49 USDRegular priceUnit price per
-
3#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 18Regular price $0.79 USDRegular priceUnit price per
-
4#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
6#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
7#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 8Regular price $1.39 USDRegular priceUnit price per
-
8#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
9#018-2005-00
3/8-16 X 4-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $2.59 USDRegular priceUnit price per
-
10#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
11#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
12#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
13#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
14#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
15#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 8Regular price $1.39 USDRegular priceUnit price per
-
17#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
18#019-5038-00
5/8 Flat Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
19#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 3Regular price $4.69 USDRegular priceUnit price per
-
20#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 18Regular price $0.69 USDRegular priceUnit price per
-
21#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
22#026-0307-00
2023 4' & 5' Striping Kit Plate--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
23#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
24#033-6003-00
5" Spindle Deck Pulley - DB-80
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
25#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
26#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 2Regular price $291.91 USDRegular priceUnit price per
-
28#042-6030-00
1/4 x 1 Square Key
Qty Used: 2Regular price $4.37 USDRegular priceUnit price per
-
29#084-5005-00
2023 MZ Stripe Kit Rubber
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
30#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
31#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-

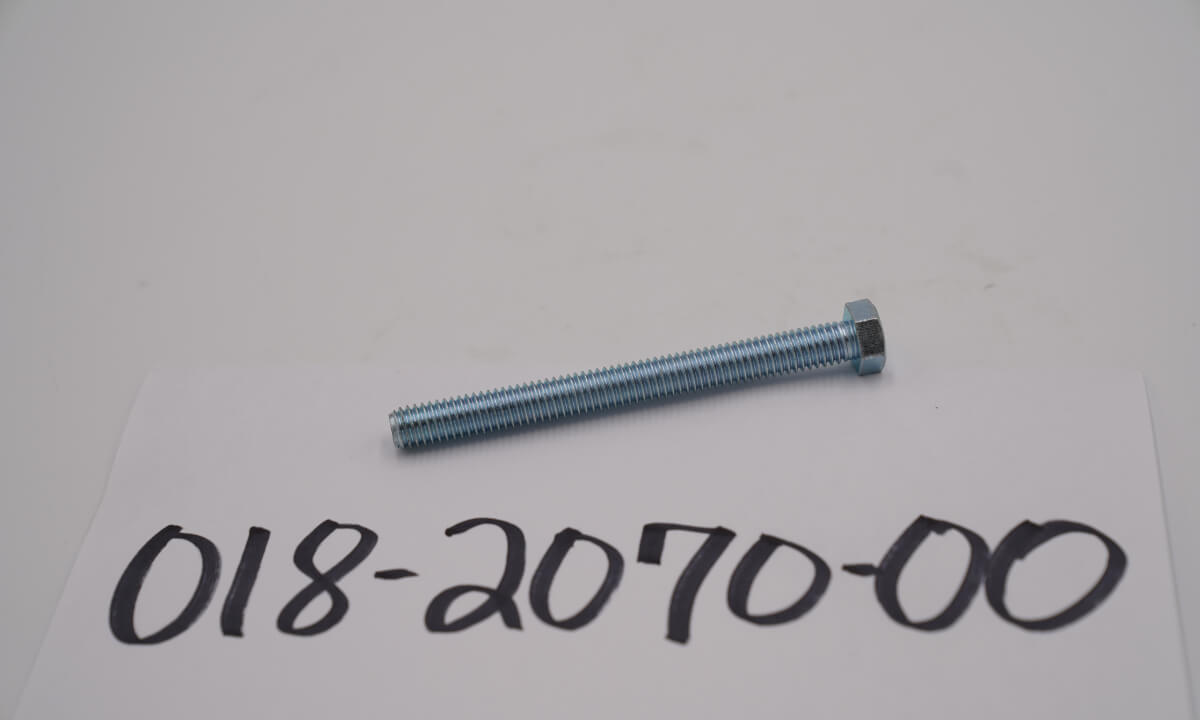

32#018-2070-00
3/8 x 4 Hex Tap Bolt -
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
33#018-5020-00
5/16-18 X 1-1/2 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
34#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
35#038-0001-00
54\" Blade for Avenger/ZT/Mav/Outlaw/Revolt
Qty Used: 2Regular price $21.16 USDRegular priceUnit price per
-
36#039-6945-10
36" Walkbehind Deck Idler Assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-

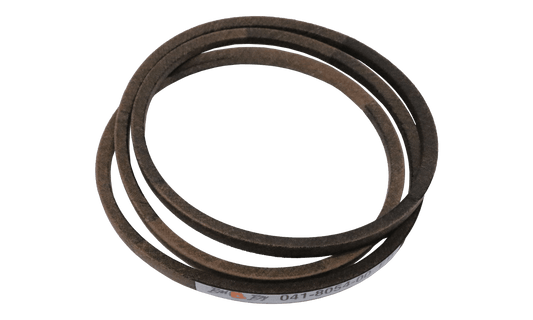

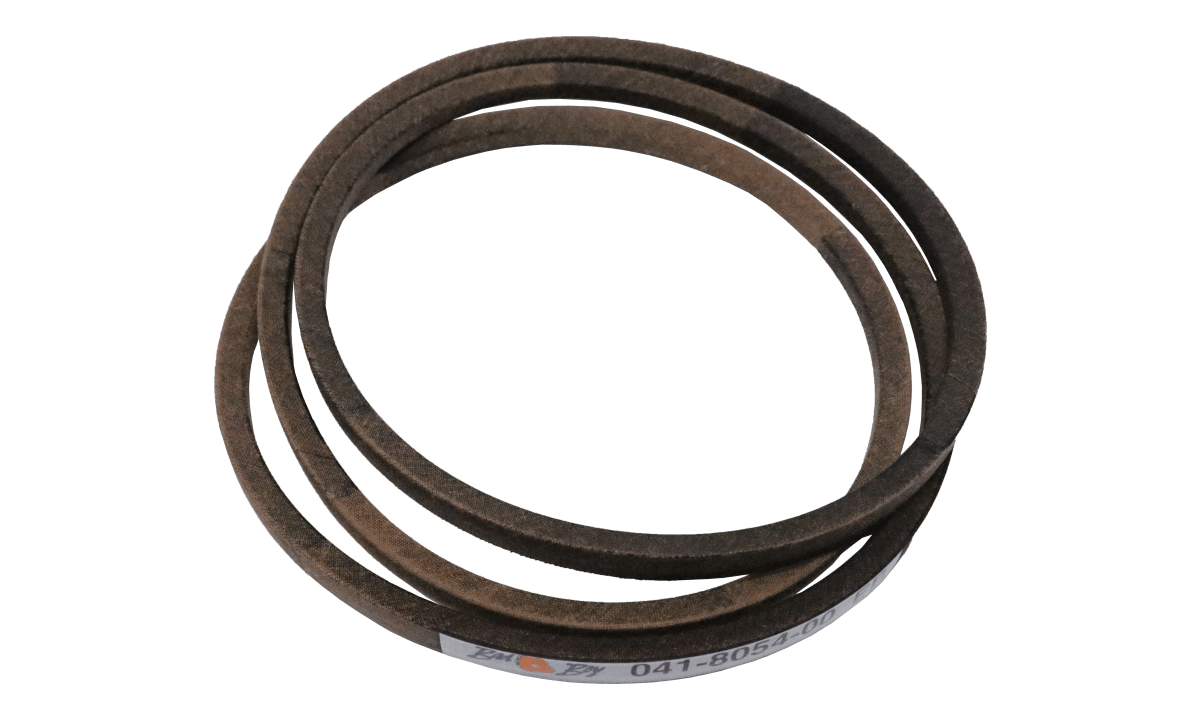

37#041-8054-00
2020 36" Revolt / 2020 36" Walk Behind Deck Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
39#091-0418-00
2017 Walk Behind 36" Deck Belt Route
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
