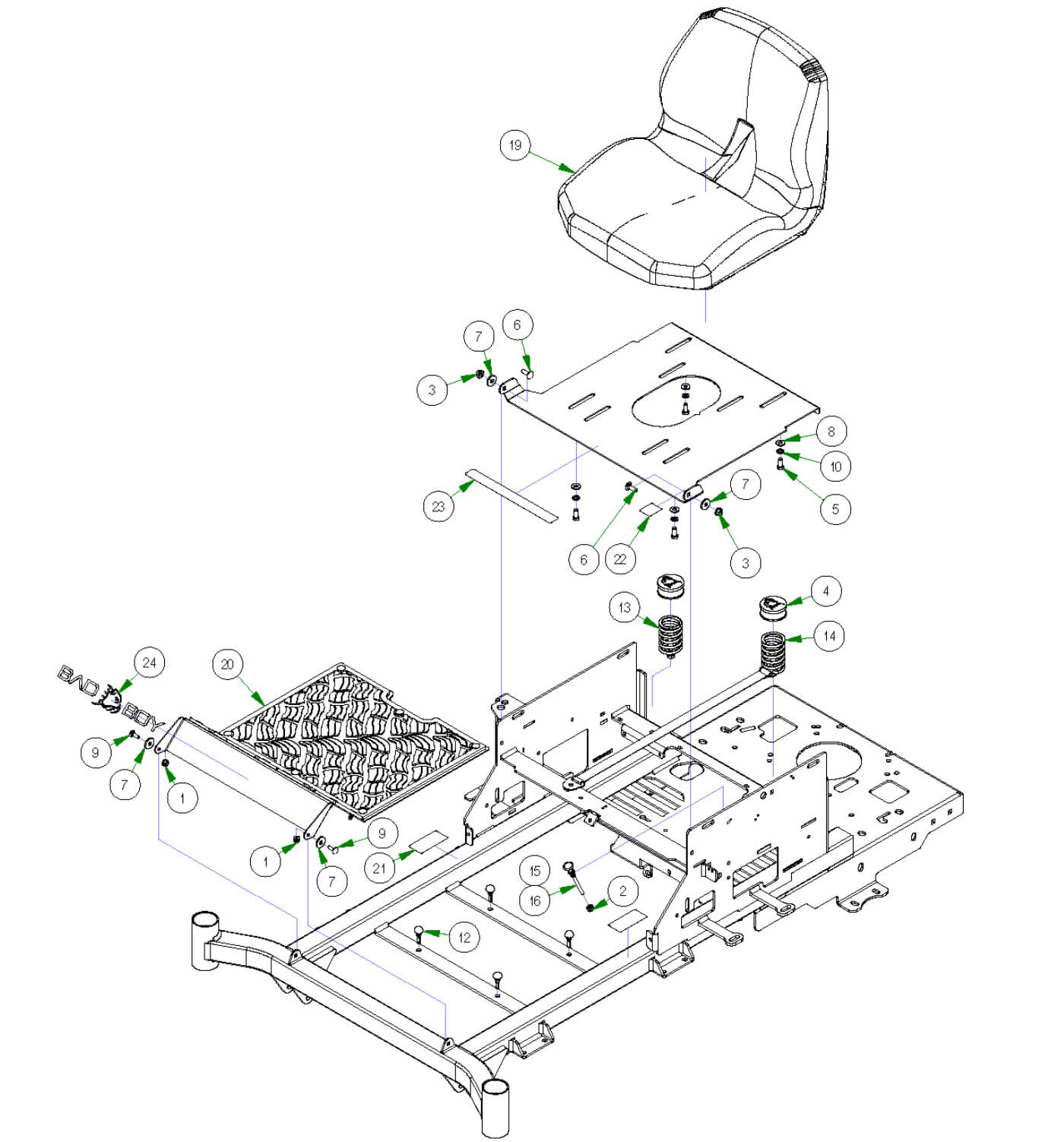

Upper Frame
Parts Index
- 1 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 2 3/8-24 Hex Nut Zinc (Qty 1)
- 3 5/16-18 Nylon Flange Nut (Qty 2)
- 4 Seat Spring Cap Cover (Qty 2)
- 5 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 4)
- 6 5/16 x 7/8 Carriage Bolt (Qty 2)
- 7 .360 ID Plastic Washer (Qty 4)
- 8 1/4 USS Flat Washer Zinc (Qty 4)
- 9 1/4 x 3/4 Carriage Bolt (Qty 2)
- 10 5/16 Lock washer Zinc (Qty 4)
- 11 2023 Magnum, Rambler, Avenger Seat Plate--Orange (Qty 1)
- 12 2023 Floor Board Rubber Bumpers (Qty 4)
- 13 2017 MZ/ZT Seat Spring Assembly (Qty 1)
- 14 2022 Mav/HD Seat Spring Assembly with Strap (Qty 1)
- 15 Rambler Choke Cable (Qty 1)
- 16 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 19 2022 Magnum Seat (Qty 1)
- 21 2018 LH/RH Steering Control Decal Roll (Qty 1)
- 22 MZ, ZT, Aven, Mav, HD Brake Decal (Qty 1)
- 23 Long Seat Plate Warning Decal (Qty 1)
- 24 Flying Bulldog Front Bumper Decal (Qty 1)
-
1#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
2#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
4#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
5#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
6#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
7#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
8#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
9#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
10#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
11#026-2022-00
2023 Magnum, Rambler, Avenger Seat Plate--Orange
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
12#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 4Regular price $1.09 USDRegular priceUnit price per
-
13#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
14#034-8045-22
2022 Mav/HD seat spring assembly with strap
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
15#054-8016-00
Choke-Lightning/AOS/Pup/MZ KAW
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
16#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
19#071-1000-22
2022 Magnum Seat
Qty Used: 1Regular price $399.99 USDRegular priceUnit price per
-
21#091-0214-00
2018 LH/RH Steering Control Decal Roll
Qty Used: 1Regular price $8.49 USDRegular priceUnit price per
-
22#091-0339-18
2018 MZ/Magnum/ZT/MAV/Comp Out Brake Decal
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
23#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
24#091-4063-00
Flying Bulldog Front Bumper Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
