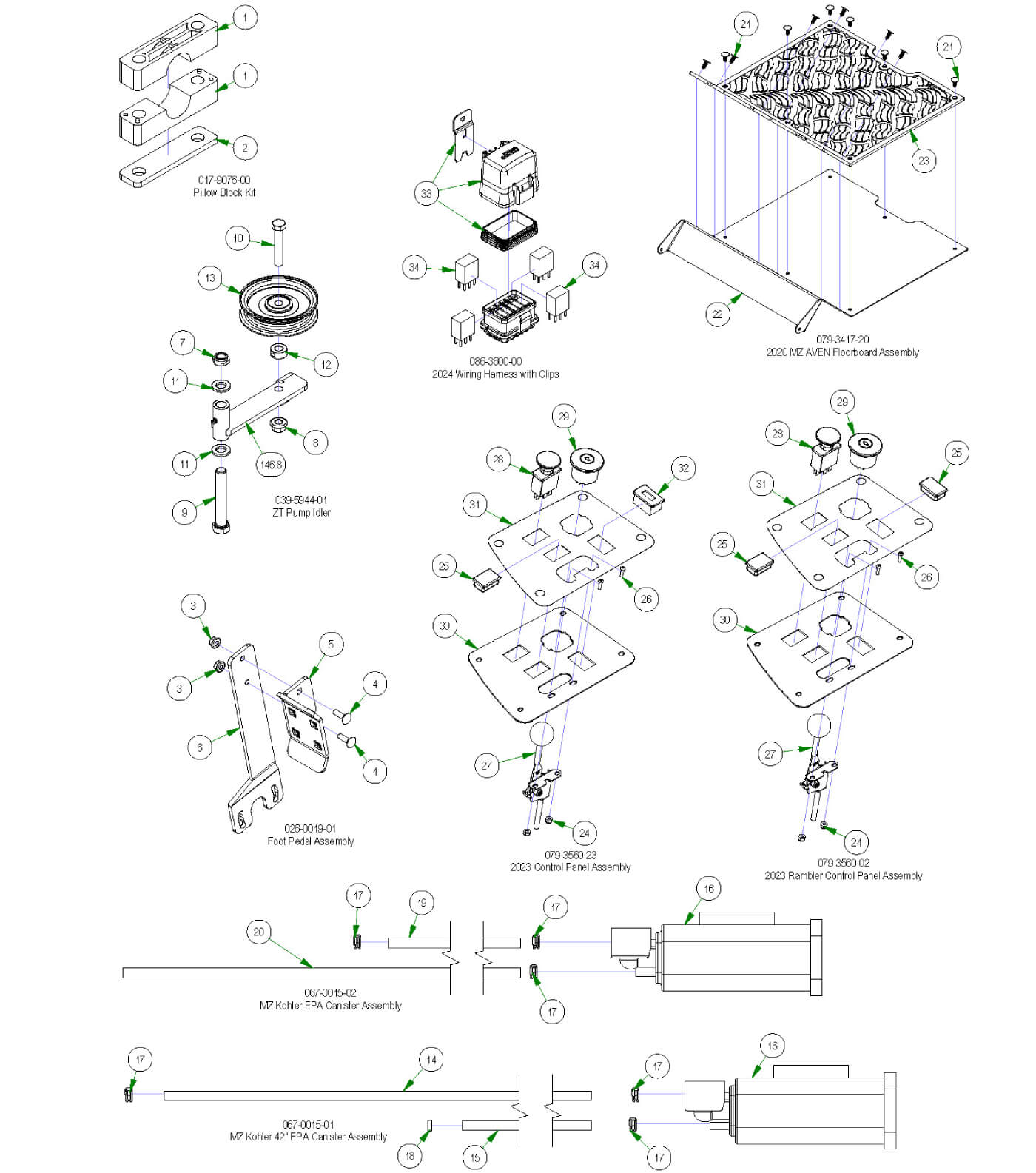

Frame Subassemblies - Pillow Block, Wiring Harness etc.
Parts Index
- 1 2017 Magnum Pillow Block-Male (Qty 8)
- 2 2017 Magnum Pillow Block-Metal Plate (Qty 4)
- 3 5/16-18 Nylon Flange Nut (Qty 2)
- 4 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 5 Foot Pedal--Orange (Qty 1)
- 6 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 7 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 8 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 9 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 10 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 11 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 12 1/2 Set Collar w/set collar (Qty 1)
- 13 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 14 3/16 Vinyl 53" EPA Line (Qty 1)
- 15 3/16 Clear 44" EPA Line (Qty 1)
- 16 Carbon Canister for Magnum/MZ (Qty 1)
- 17 5.5 mm Vinyl Hose Clamp (Qty 3)
- 18 3/16" Vinyl Hose Clamp (Qty 1)
- 19 44" x 3/16" black hose (Qty 1)
- 20 52" x 3/16" clear hose (Qty 1)
- 21 Ratchet Fastener - Floorboard (Qty 12)
- 22 2017 MZ/ZT Floorboard--Orange (Qty 1)
- 23 2021 Maverick Floor Mat W/ Reaper Tread (Qty 1)
- 24 10-24 Nylon Insert Locknut Zin (Qty 2)
- 25 Light Plug (Qty 2)
- 26 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 27 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 28 PTO Engager-Switch for Blades (Qty 1)
- 29 Ignition Switch (Qty 1)
- 30 2023 Control Panel--Orange (Qty 1)
- 31 2023 Control Panel Decal (Qty 1)
- 32 Tachometer-N310-0100-1018 (Qty 1)
- 33 2019 Relay Cap Kit (Qty 1)
- 34 2019 Relay Terminal (Qty 1)
-
1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 8Regular price $19.89 USDRegular priceUnit price per
-
2#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 4Regular price $19.89 USDRegular priceUnit price per
-
3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
4#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
5#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
6#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
7#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
8#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
9#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
10#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
11#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
12#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
13#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
14#051-2023-01
3/16 Vinyl 53" EPA Line
Qty Used: 1Regular price $8.79 USDRegular priceUnit price per
-
15#051-2027-01
3/16 Clear 44" EPA Line
Qty Used: 1Regular price $6.59 USDRegular priceUnit price per
-
16#067-0015-00
Carbon Canister for Magnum/MZ
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
17#072-0002-00
5.5 mm Vinyl Hose Clamp
Qty Used: 3Regular price $2.19 USDRegular priceUnit price per
-
18#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
19#051-2023-02
44" x 3/16" black hose
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
20#051-2027-02
52" x 3/16" clear hose
Qty Used: 1Regular price $6.59 USDRegular priceUnit price per
-
21#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 12Regular price $2.91 USDRegular priceUnit price per
-
22#079-3417-00
2017 MZ/ZT Floorboard--Orange
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
23#081-4001-00
2021 Maverick Floor Mat W/ Reaper Tread
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
24#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
25#018-1040-00
Light Plug
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
26#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
27#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
28#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
29#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
30#079-3461-00
2023 Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
31#091-4072-00
2023 Control Panel Decal
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
32#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
33#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
34#086-1202-19
2019 Relay Terminal
Qty Used: 1Regular price $23.34 USDRegular priceUnit price per
