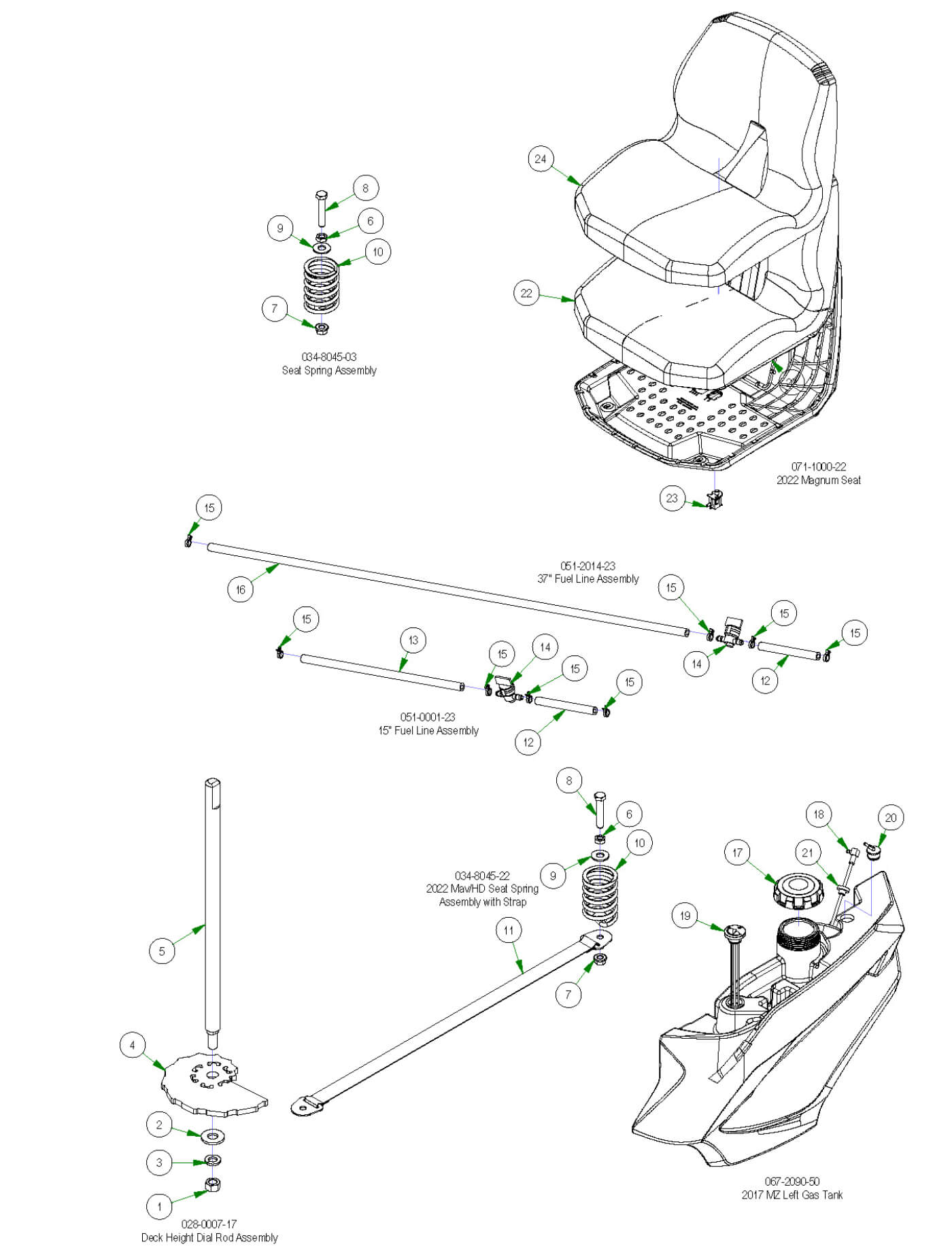

Frame Sub Assemblies - Seat, Fuel Line, etc
Parts Index
- 1 3/8-24 Hex Nut Zinc (Qty 1)
- 2 3/8 USS Flat Washer Zinc (Qty 1)
- 3 3/8 Lockwasher Zinc (Qty 1)
- 4 Deck Height Cam Plate (Qty 1)
- 5 2017 Deck Height Dial Rod MZ (Qty 1)
- 6 3/8-16 Half Jam Nut (Qty 1)
- 7 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 8 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 9 3/8 USS Flat Washer Zinc (Qty 1)
- 10 Seat Spring (Qty 1)
- 11 Seat Strap with Buckles (Qty 1)
- 12 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 13 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 14 2 Way Fuel Shut-Off Valve (Qty 1)
- 15 1/4 Fuel Line Clamp (Qty 4)
- 16 33" 1/4 Fuel Line No Clamp (Qty 1)
- 17 3.5" Tethered Fuel Cap (Qty 1)
- 18 Fuel Line Pickup Tube for ZT (Qty 1)
- 19 Fuel Gauge w/ Grommet (Qty 1)
- 20 Rollover Valve and Grommet New (Qty 1)
- 21 Grommet for ZT Elite Fuel Line (Qty 1)
- 23 OBSOLETE USE 071-5065-07 (Qty 1)
- 24 Bad Boy SK120 Cover with Logo for 071-1000-22 (Qty 1)
-
1#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
29#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
3#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
4#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
5#028-0007-00
2017 Deck Height Dial Rod MZ
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
6#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
7#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
8#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
10#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
11#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
1213#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
14#067-6057-00
2 Way Fuel Shut-Off Valve
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
15#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 4Regular price $0.88 USDRegular priceUnit price per
-
16#051-2014-01
33" 1/4 Fuel Line No Clamp
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
17#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
18#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
19#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
20#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
21#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
23#071-1004-00
OBSOLETE USE 071-5065-07
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
24#071-1005-00
Bad Boy SK120 Cover with Logo for 071-1000-22
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
