Engine - Briggs

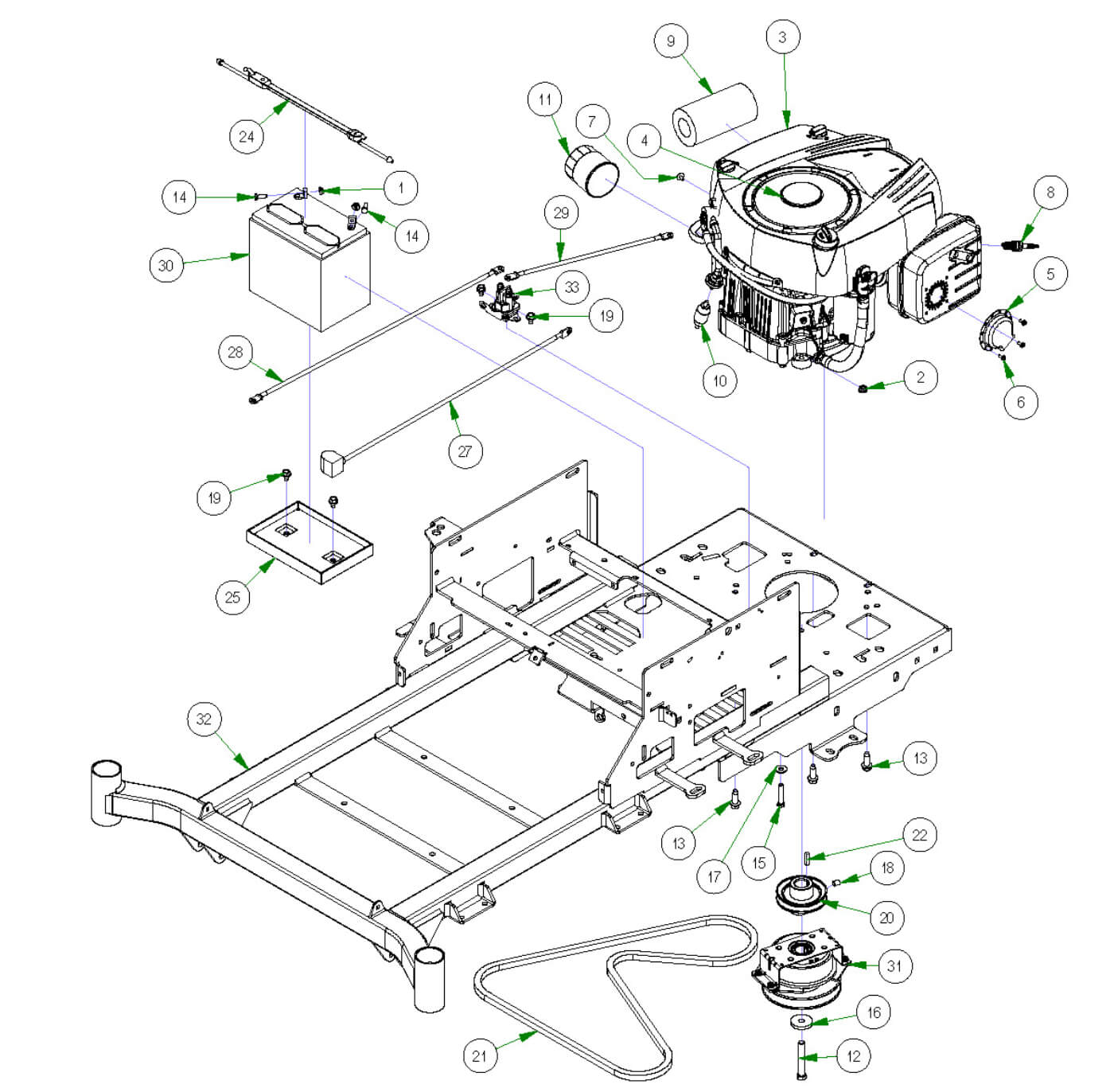

Parts Index
- 1 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 2 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 3 19 HP Briggs Engine (Qty 1)
- 4 Briggs 19HP Rotating Screen (Qty 1)
- 5 Muffler Deflector (Qty 1)
- 8 Spark Plug-Kohler/Briggs (Qty 1)
- 9 19/21 HP Briggs Air Filter and (Qty 1)
- 10 Universal Inline Fuel Filter (Qty 1)
- 11 Briggs Oil Filter (Qty 1)
- 12 7/16-20x3” Hex Bolt GR 8 W/ Patch (Qty 1)
- 13 3/8 x 1 1/8 Engine Mounting Bolt (Qty 3)
- 14 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 15 5/16-18x1-3/4 GR 5 Hex Bolts (Qty 1)
- 16 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 17 5/16 USS Flat Washer Zinc (Qty 1)
- 18 3/8-16x1/2 Socket Set Cup Point (Qty 1)
- 19 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 20 3 3/4 Motor Pulley-2009 MZ (Qty 1)
- 21 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 22 1/4 x 1 Square Key (Qty 1)
- 23 2023 Battery Hold Down Assembly (Qty 1)
- 24 2023 Rubber Battery Hold Down Strap (Qty 1)
- 25 2023 Battery Tray Only (Qty 1)
- 26 Rambler Choke Cable (Qty 1)
- 27 24 inch Black Cable - MZ/ZT (Qty 1)
- 28 24 Red Battery Cable (Qty 1)
- 29 14" Red Battery Cable (Qty 1)
- 31 Clutch For 1" Shaft (Qty 1)
- 33 Solenoid (752-1251-210HP) (Qty 1)
-
1#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
2#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
3#015-1923-00
19 HP Briggs Engine
Qty Used: 1Regular price $1,699.99 USDRegular priceUnit price per
-
5#015-1923-03
Muffler Deflector
Qty Used: 1Regular price $3.19 USDRegular priceUnit price per
-
8#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
9#063-4026-00
19/21 HP Briggs Air Filter and
Qty Used: 1Regular price $36.49 USDRegular priceUnit price per
-
10#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
11#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
12#018-0007-21
7/16-20x3” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
13#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
14#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
15#018-8059-00
5/16-18x1-3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
16#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
17#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
18#030-6029-00
3/8-16x1/2 Socket Set Cup Point
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
19#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
20#033-2010-00
3 3/4 Motor Pulley-2009 MZ
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
21#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
22#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
23#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
24#043-8930-00
2023 Rubber Battery Hold Down Strap
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
25#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
26#054-8016-00
Choke-Lightning/AOS/Pup/MZ KAW
Qty Used: 1Regular price $26.99 USDRegular priceUnit price per
-
27#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
28#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
29#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
31#070-0055-00
Clutch For 1\" Shaft
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
33#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
