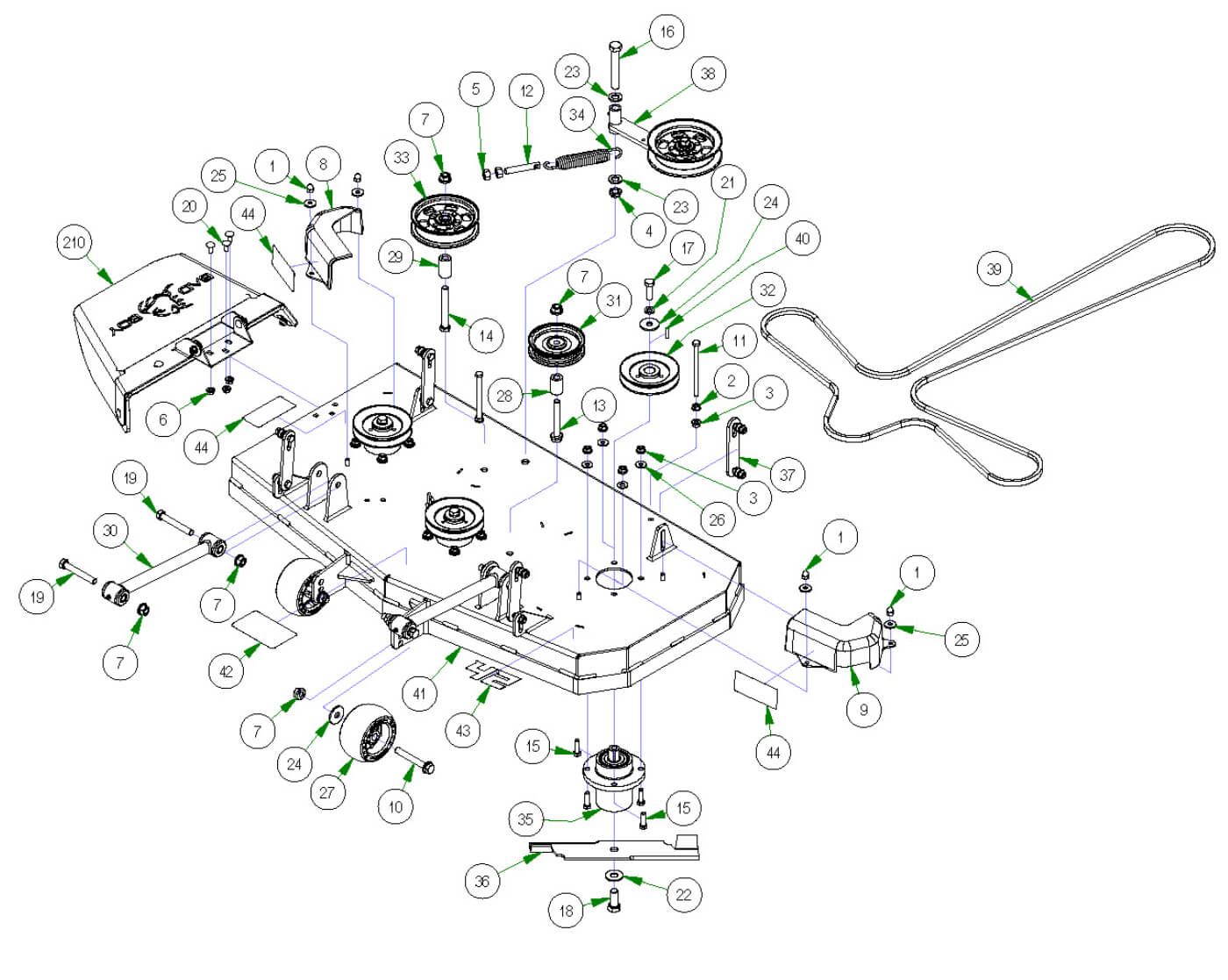

42" Deck
Parts Index
- 1 Acorn Nut-Pulley Cover (Qty 4)
- 2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 3 3/8 Nylock Flange Nut (Qty 14)
- 4 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 5 1/2-13 Hex Nuts Zinc (Qty 2)
- 6 5/16-18 Nylon Flange Nut (Qty 3)
- 7 1/2-13 Nylon Insert Flange Nut (Qty 8)
- 8 Pulley Cover RH 42"/48" (Qty 1)
- 9 Pulley Cover LH 42"/48" (Qty 1)
- 10 Deck Wheel Bolt (Qty 2)
- 11 3/8"-16 x 5 1/4" Grade 5 Hex Bolt (Qty 2)
- 12 All Thread (Qty 1)
- 13 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 1)
- 14 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 15 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 12)
- 16 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 17 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 18 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 19 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 20 5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5) (Qty 3)
- 21 1/2 Lockwasher Zinc (Qty 3)
- 22 5/8 Flat Washer (Qty 3)
- 23 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 24 1/2 Belleville Washer #K2000-G (Qty 5)
- 25 .360 ID Black Plastic Washer (Qty 4)
- 26 5/16 USS Flat Washer Zinc (Qty 12)
- 27 Deck Wheel (Qty 2)
- 28 .502 ID X 1.000 0D X 1.500 (Qty 1)
- 29 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 30 Hybrid Turnbuckle (Qty 2)
- 31 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 32 42 MZ Spindle Pulley (Qty 2)
- 33 5 3/4 Idler Pulley-Capitol (Qty 1)
- 34 2015 Deck Idler Spring (Qty 1)
- 35 Spindle Assembly-Magnum Models (Qty 3)
- 36 42" High Lift Blade-MZ (Qty 3)
- 37 MZ/ZT Deck Hanger Assembly (Qty 4)
- 38 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 39 2023 and newer 42" MZ Rambler Deck Belt (Qty 1)
- 40 3/16 X 1 Square Machine Key (Qty 3)
- 41 2023 42" MZ Deck--Orange (Qty 1)
- 42 2017 MZ Magnum 48"/ 42" Deck Route Decal (Qty 1)
- 44 Danger Decal-Spindle/Discharge (Qty 4)
-
1#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
3#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
4#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
6#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
7#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 8Regular price $1.39 USDRegular priceUnit price per
-
8#014-4025-00
Pulley Cover RH
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
9#014-4026-00
Pulley Cover LH 42\"/48\"
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
10#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 2Regular price $5.89 USDRegular priceUnit price per
-
11#018-0065-00
3/8"-16 x 5 1/4" Grade 5 Hex Bolt
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
12#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
13#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
14#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
15#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
16#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
17#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
18#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
19#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
20#018-8062-00
5/16-18 X 3/4 Carriage ASTM B307 (~Gr 5)
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
21#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
22#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
23#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
24#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 5Regular price $4.69 USDRegular priceUnit price per
-
25#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
26#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
27#022-1000-00
Deck Wheel
Qty Used: 2Regular price $15.99 USDRegular priceUnit price per
-
28#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
29#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
30#028-0004-22
Hybrid Turnbuckle/Deck Locator
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
31#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
32#033-6002-00
42 MZ Spindle Pulley
Qty Used: 2Regular price $20.99 USDRegular priceUnit price per
-
33#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
34#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
35#037-2000-00
Spindle Assembly-Magnum Models
Qty Used: 3Regular price $204.33 USDRegular priceUnit price per
-
36#038-4221-00
42" High Lift Fusion Blade-MZ
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
37#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
38#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
39#041-4023-00
2023 and newer 42" MZ Rambler Deck Belt
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
-
40#042-0010-00
3/16 X 1 Square Machine Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
41#060-2309-00
2023 42" MZ Deck--Orange
Qty Used: 1Regular price $499.99 USDRegular priceUnit price per
-
42#091-0393-00
2017 MZ Magnum 48"/ 42" Deck Route Decal
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
44#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 4Regular price $2.91 USDRegular priceUnit price per
