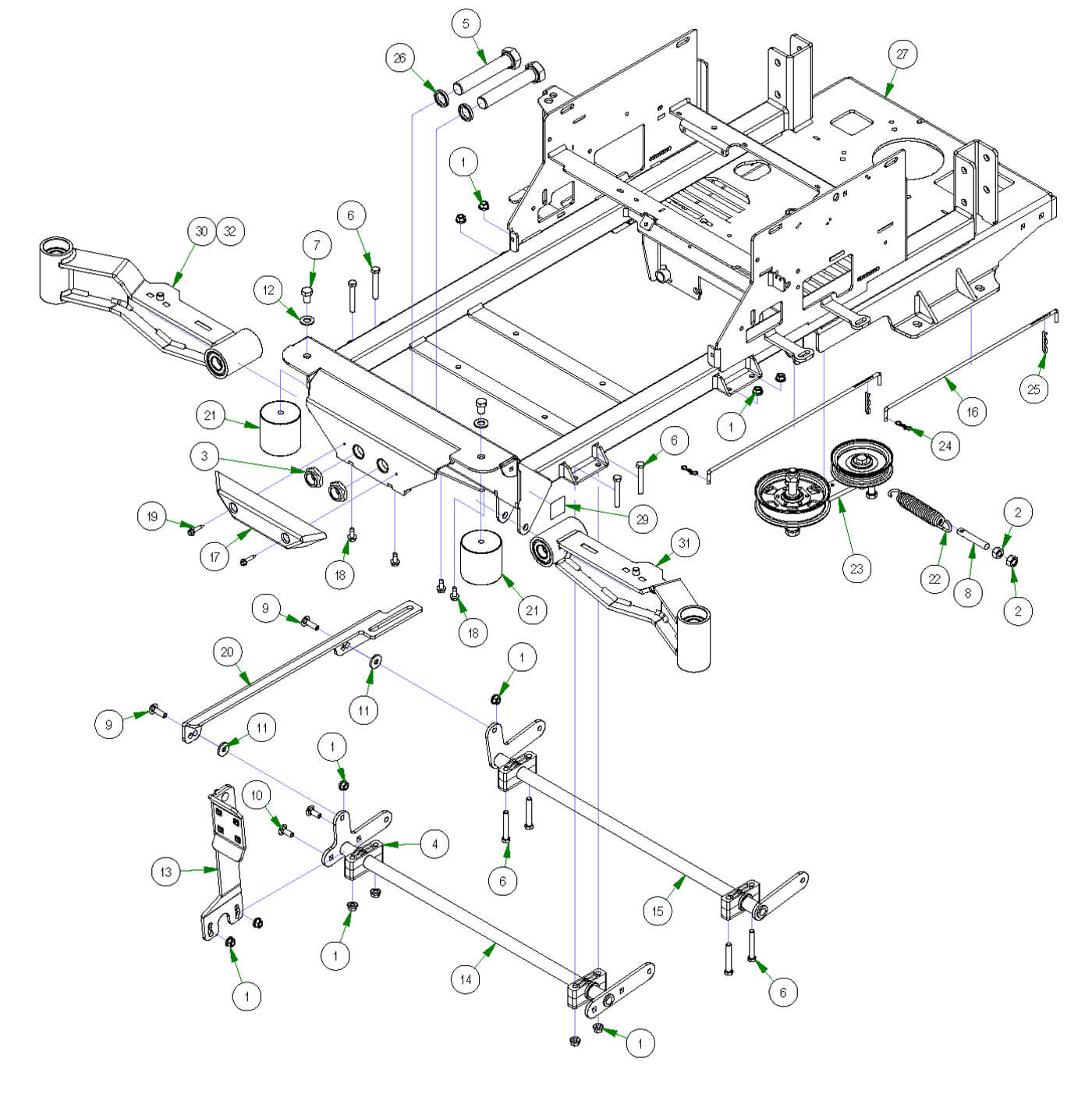

Lower Frame
Parts Index
- 1 3/8 Nylock Flange Nut (Qty 12)
- 2 1/2-13 Hex Nuts Zinc (Qty 2)
- 3 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 4 Pillow Block (Qty 4)
- 5 1-14 X 5 1/2 BOLT GR 8 ZC YELLOW (Qty 2)
- 6 3/8x2 1/2" Hex Bolt (Qty 8)
- 7 1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc (Qty 2)
- 8 All Thread (Qty 1)
- 9 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 10 3/8 x 1 Carriage Bolt (Qty 2)
- 11 .390 ID Plastic Washer (Qty 2)
- 12 1/2 SAE Flat Washer GR 8 (Qty 2)
- 13 2017 MZ Foot Pedal Assembly (Qty 1)
- 14 Actuator Bar (Front) (Qty 1)
- 15 Actuator Bar (Rear) (Qty 1)
- 16 Neutral Rod (Qty 2)
- 17 ZT, Mav, HD, Revolt Front Bumper (Qty 1)
- 18 5/16 x 3/4 Hex Washer Type F (Qty 4)
- 19 1/4-14 x 1 1/4 HWA Unslot Tek Screw (Qty 2)
- 20 2017 MZ/ZT Actuator Linkage--Orange (Qty 1)
- 21 Isolator (Red Dot) (Qty 2)
- 22 2015 Deck Idler Spring (Qty 1)
- 23 Pump Idler Bracket Assy-Maverick (Qty 1)
- 24 Bow Pin (Qty 2)
- 25 Neutral Rod Clip (Qty 2)
- 26 Spacer ( Front Fork and Suspension ) (Qty 2)
- 27 2023 Maverick Frame--Orange (Qty 1)
- 28 Patent Decal (Qty 1)
- 29 Independently Articulating Front Suspension Arms (Qty 1)
- 30 2021 Maverick RH Arm Assembly (Qty 1)
- 31 2021 Maverick LH Front Suspenson Arm Assy (Qty 1)
- 32 2021 Maverick RH Long Front Suspension Arm Assy (Qty 1)
-
1#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
2#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
3#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
4#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
5#018-0026-00
1-14 X 5 1/2 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
6#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
7#018-1055-00
1/2-13 x 3/4 Bolt with Patch (GR 5) Zinc
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
8#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
9#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
10#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
11#019-2073-00
.390 ID Plastic Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
12#019-5702-00
1/2 SAE Flat Washer GR 8
Qty Used: 2Regular price $0.75 USDRegular priceUnit price per
-
13#026-0019-01
2017 MZ Foot Pedal Assembly
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
14#028-0002-00
Actuator Bar (Front)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
15#028-0003-00
Actuator Bar (Rear)
Qty Used: 1Regular price $72.97 USDRegular priceUnit price per
-
16#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
-
18#030-7042-00
5/16 x 3/4 Hex Washer Type F
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
19#030-7047-00
1/4-14 x 1 1/4 HWA Unslot Tek Screw
Qty Used: 2Regular price $0.05 USDRegular priceUnit price per
-
20#031-0510-00
2017 MZ/ZT Actuator Linkage--Orange
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
-
21#032-9002-00
Isolator (Red Dot)
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
22#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
23#039-5944-05

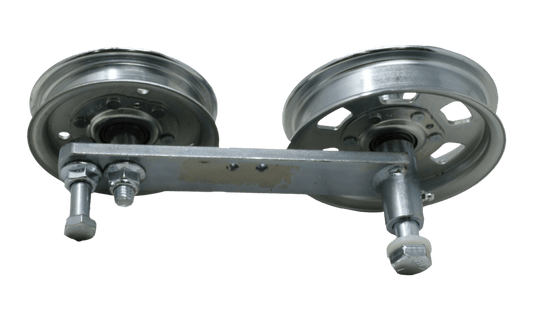

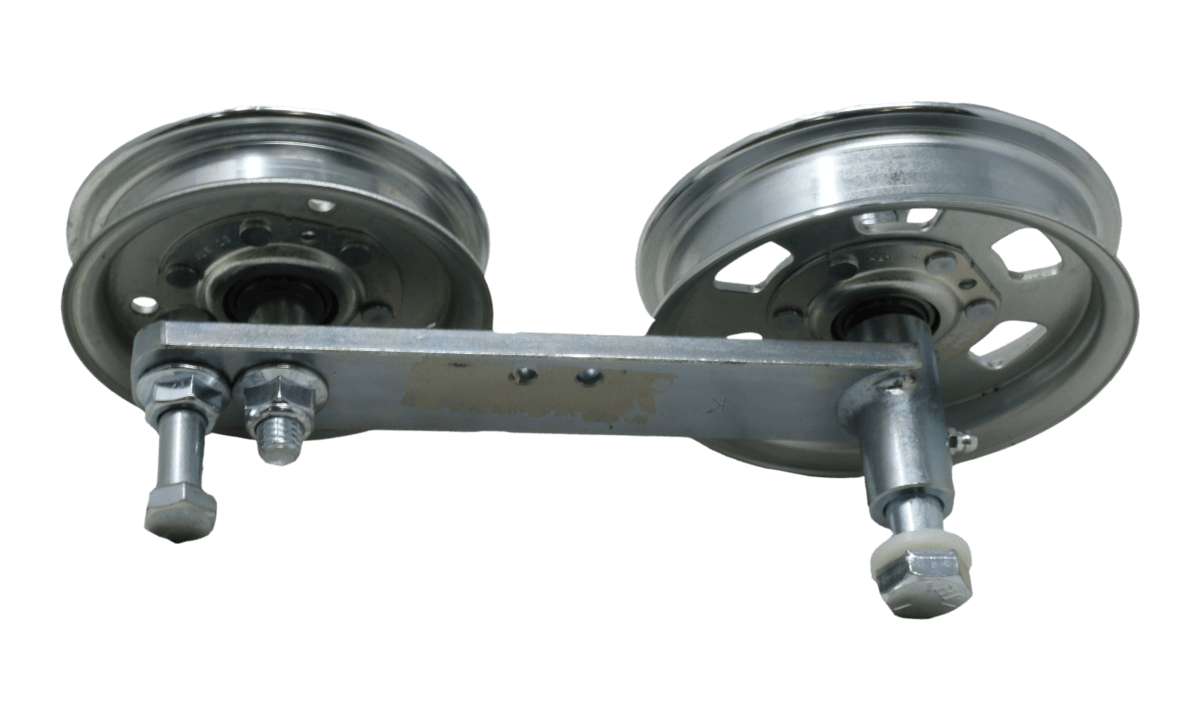

Pump Idler Bracket Assy-Maverick
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
-
25#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
26#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
No sequence found for SKU:
Patent Decal
Regular price $0.00 USDRegular priceUnit price per
-
29#091-8002-00
Independently Articulating Front Suspension Arms
Qty Used: 1Regular price $4.99 USDRegular priceUnit price per
-
30#250-2751-21
2021 Maverick RH Arm Assembly
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
31#250-2801-21
2021 Maverick LH Front Suspenson Arm Assy
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
32#250-2851-21
2021 Maverick RH Long Front Suspension Arm Assy
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
