Kohler

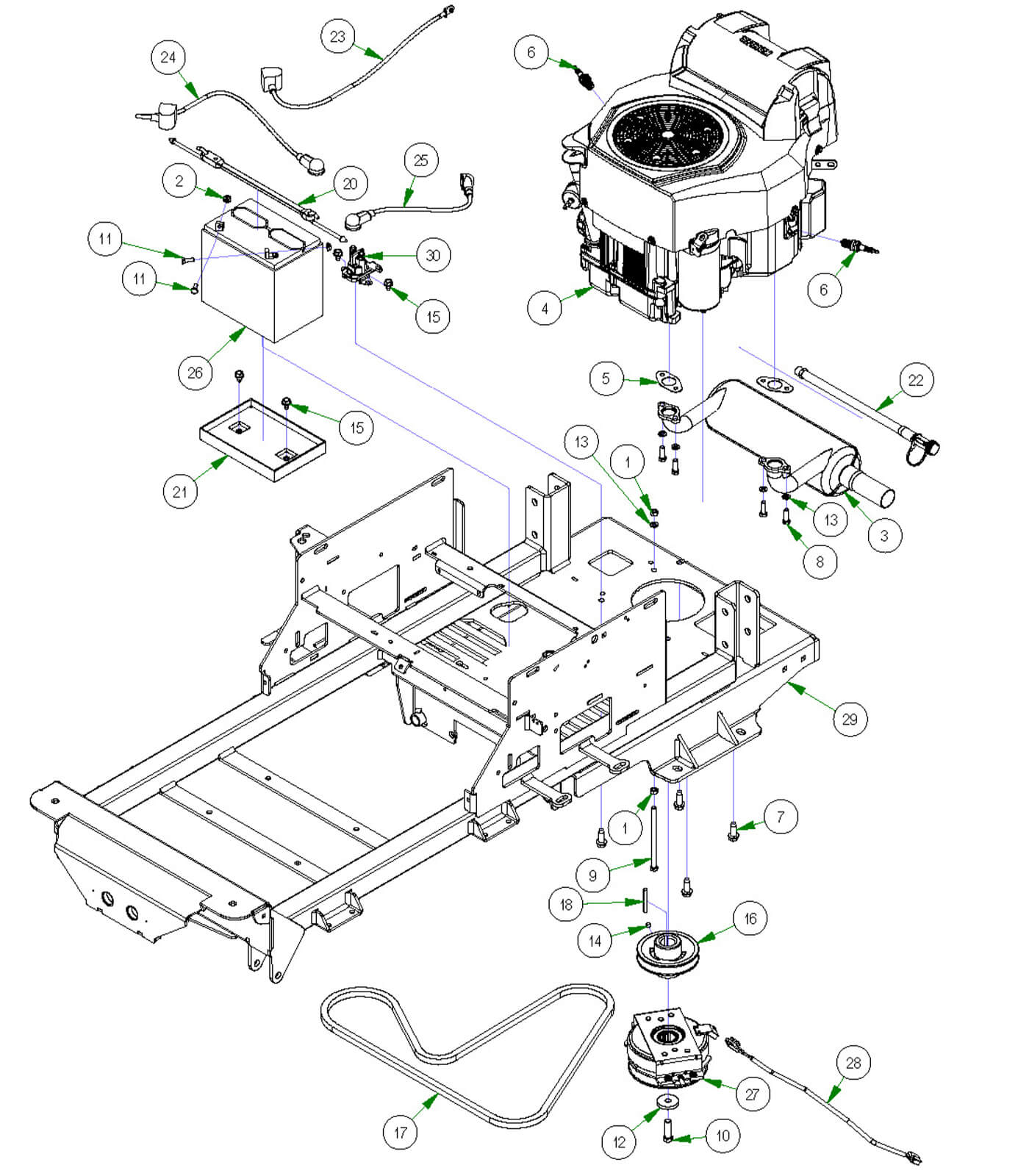

Parts Index
- 1 5/16-18 Hex Nuts Zinc (Qty 2)
- 2 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 3 2017 Kohler Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 4 25hp Kohler-2014 CZT, Oulaw (Qty 1)
- 5 Exhaust Gaskets for 27,30 hp (Qty 2)
- 6 Spark Plug-Kohler/Briggs (Qty 2)
- 7 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 8 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 4)
- 9 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 10 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 11 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 12 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 13 5/16 Lock washer Zinc (Qty 5)
- 14 5/16-24 x 1/4 Set Screw (Qty 1)
- 15 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 16 4 3/4 Motor Pulley (Qty 1)
- 17 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 18 1/4 X 2 Square Key Stock (Qty 1)
- 19 2023 Battery Hold Down Assembly (Qty 1)
- 20 2023 Rubber Battery Hold Down Strap (Qty 1)
- 21 2023 Battery Tray Only (Qty 1)
- 22 Kohler Oil Drain Hose (Qty 1)
- 23 24 inch Black Cable - MZ/ZT (Qty 1)
- 24 24 Red Battery Cable (Qty 1)
- 25 14" Red Battery Cable (Qty 1)
- 26 Battery - All models except Renegade and Revolt (Qty 1)
- 27 Clutch For 1-1/8" Shaft (Qty 1)
- 28 Clutch Pigtail (Qty 1)
- 29 2023 Maverick Frame--Orange (Qty 1)
- 30 Solenoid (752-1251-210HP) (Qty 1)
-
1#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
2#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#015-0051-00
2017 Kohler Exhaust MZ/ZT/Mav/Compact Outlaw
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
