Vanguard

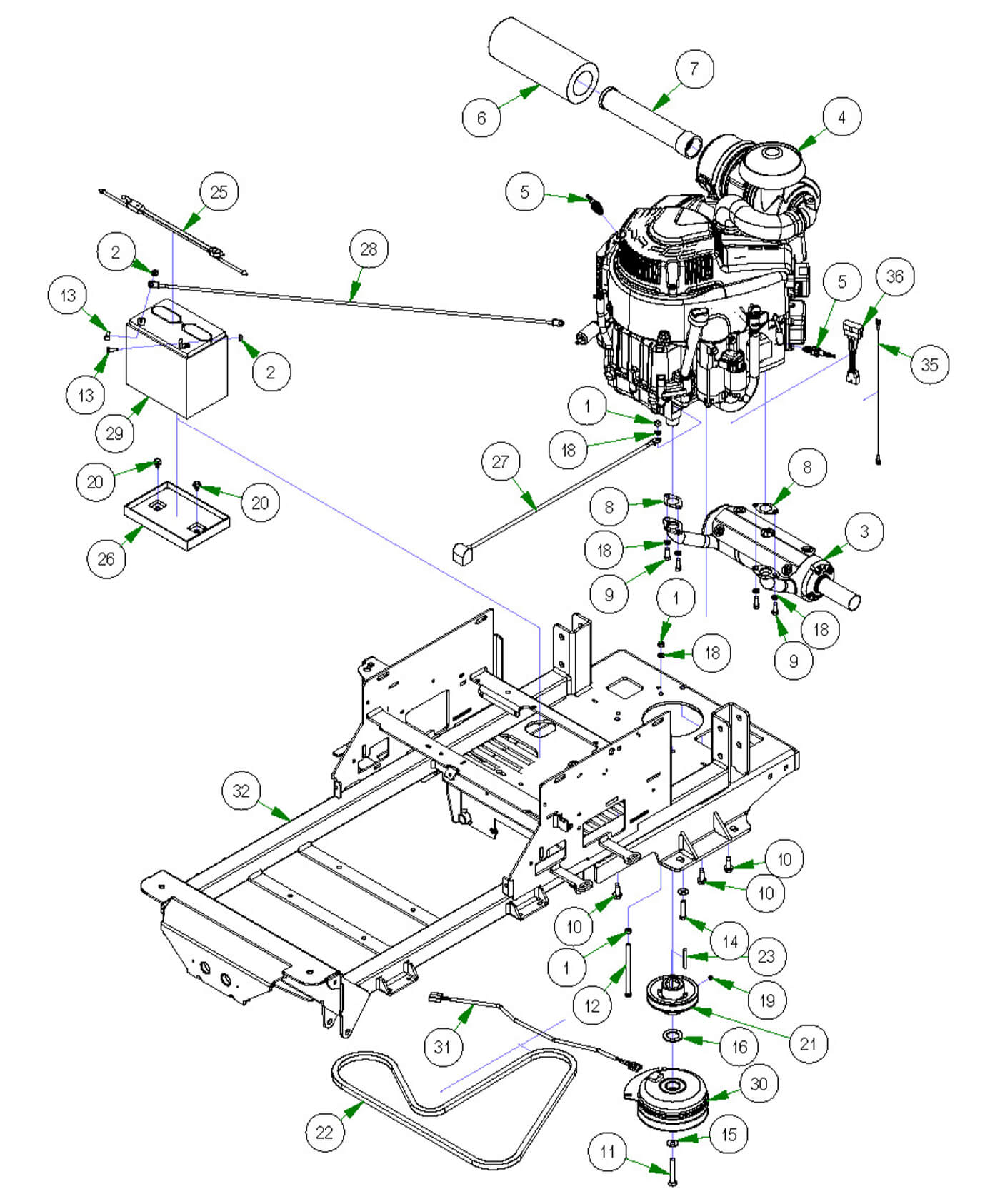

Parts Index
- 1 5/16-18 Hex Nuts Zinc (Qty 3)
- 2 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 3 Maverick HD 28 EFI Muffler (Qty 1)
- 4 28HP Briggs Vanguard 810cc (Qty 1)
- 5 Spark Plug-Kohler/Briggs (Qty 2)
- 6 Canister Air Fil Outer2010&Old (Qty 1)
- 7 Canister Air Filter - Inner (Qty 1)
- 8 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 9 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 10 3/8 x 1 1/8 Engine Mounting Bolt (Qty 3)
- 11 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 12 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 13 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 14 5/16-18x1-3/4 GR 5 Hex Bolts (Qty 1)
- 15 3/8 USS Flat Washer Zinc (Qty 1)
- 16 1.140x1.750x .132 Flat Washer (Qty 1)
- 17 5/16 USS Flat Washer Zinc (Qty 1)
- 18 5/16 Lock washer Zinc (Qty 6)
- 19 5/16-24 x 1/4 Set Screw (Qty 1)
- 20 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 2)
- 21 4 3/4 Motor Pulley (Qty 1)
- 22 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 23 1/4 X 2 Square Key Stock (Qty 1)
- 24 2023 Battery Hold Down Assembly (Qty 1)
- 25 2023 Rubber Battery Hold Down Strap (Qty 1)
- 26 2023 Battery Tray Only (Qty 1)
- 27 24 inch Black Cable - MZ/ZT (Qty 1)
- 28 36 Red Battery Cable (Qty 1)
- 29 Battery - All models except Renegade and Revolt (Qty 1)
- 30 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 31 Clutch Pigtail (Qty 1)
- 32 2023 Maverick Frame--Orange (Qty 1)
- 36 2021 28 Briggs EFI Pigtail (Qty 1)
- 37 12 Black Plastic Tie (Qty 1)
-
1#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
2#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#015-0074-00
Maverick HD 28 EFI Muffler
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
4#015-0092-00
28HP Briggs Vanguard 810cc
Qty Used: 1Regular price $2,399.99 USDRegular priceUnit price per
-
5#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
6#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
7#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
8#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
9#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
10#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
11#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
12#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
13#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
14#018-8059-00
5/16-18x1-3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
15#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
16#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
17#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
18#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
19#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
20#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
21#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
22#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
23#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
24#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
25#043-8930-00
2023 Rubber Battery Hold Down Strap
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
26#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
27#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
28#064-8060-00
36 Red Battery Cable
Qty Used: 1Regular price $19.56 USDRegular priceUnit price per
-
29#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
31#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
36#086-9015-21
2021 28 Briggs EFI Pigtail
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
37#214-1004-00
12 Black Plastic Tie
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
