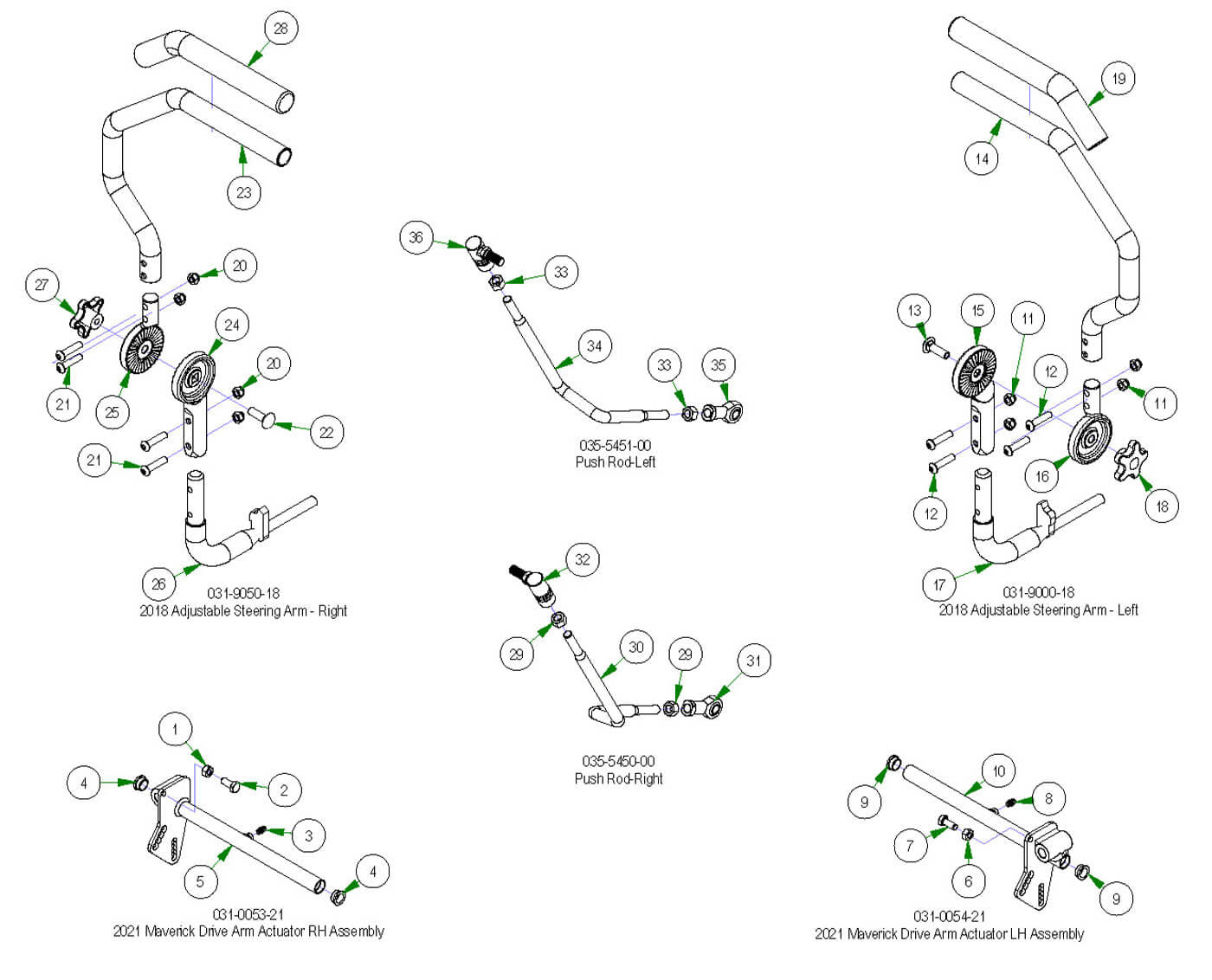

Drive Arm Subassemblies
Parts Index
- 1 5/16-18 Hex Nuts Zinc (Qty 1)
- 2 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 3 1/4 Drive-in Grease Fitting (Qty 1)
- 4 Drive Arm Actuator Bushing (Qty 2)
- 5 2021 Maverick Drive Actuator RH Weldment (Qty 1)
- 6 5/16-18 Hex Nuts Zinc (Qty 1)
- 7 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 1)
- 8 1/4 Drive-in Grease Fitting (Qty 1)
- 9 Drive Arm Actuator Bushing (Qty 2)
- 10 2021 Maverick Drive Actuator LH Weldment (Qty 1)
- 11 5/16-18 Nylon Insert Locknut Z (Qty 4)
- 12 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 13 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 14 2018 Upper Tube Adjustable Steering Arm (Qty 1)
- 15 2018 Black Lower Adjuster - Steering Arm - Left (Qty 1)
- 16 2018 Black Upper Adjuster - Steering Arm - Left (Qty 1)
- 17 2018 Black Steering Arm Elbow - Left (Qty 1)
- 18 Knob - Adjustable Steering Arm (Qty 1)
- 19 Black Steering Grip (Qty 1)
- 20 5/16-18 Nylon Insert Locknut Z (Qty 4)
- 21 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 22 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 23 2018 Upper Tube Adjustable Steering Arm (Qty 1)
- 24 2018 Black Lower Adjuster - Steering Arm - Right (Qty 1)
- 25 2018 Black Upper Adjuster - Steering Arm - Right (Qty 1)
- 26 2018 Black Steering Arm Elbow - Right (Qty 1)
- 27 Knob - Adjustable Steering Arm (Qty 1)
- 28 Black Steering Grip (Qty 1)
- 29 3/8-24 Hex Nut Zinc (Qty 2)
- 31 Spherical Rod End (Qty 1)
- 32 Quick Release Ball Joint (Qty 1)
- 33 3/8-24 Hex Nut Zinc (Qty 2)
- 35 Spherical Rod End (Qty 1)
- 36 Quick Release Ball Joint (Qty 1)
-
16#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
27#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
38#024-6034-00
1/4 Drive-in Grease Fitting
Qty Used: 1Regular price $0.66 USDRegular priceUnit price per
-
49#031-0032-00
Drive Arm Actuator Bushing
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
5#031-0053-00
2021 Maverick Drive Actuator RH Weldment
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
10#031-0054-00
2021 Maverick Drive Actuator LH Weldment
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
1120#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
1221#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
1322#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
1423#031-9010-18
2018 Upper Tube Adjustable Steering Arm
Qty Used: 1Regular price $26.47 USDRegular priceUnit price per
-
15#031-9014-18
2018 Black Lower Adjuster - Steering Arm - Left
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
16#031-9017-18
2018 Black Upper Adjuster - Steering Arm - Left
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
17#031-9020-18
2018 Black Steering Arm Elbow - Left
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
1827#045-5000-00
Knob - Adjustable Steering Arm
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
1928#069-4010-00
Black Steering Grip
Qty Used: 1Regular price $7.38 USDRegular priceUnit price per
-
24#031-9015-18
2018 Black Lower Adjuster - Steering Arm - Right
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
25#031-9016-18
2018 Black Upper Adjuster - Steering Arm - Right
Qty Used: 1Regular price $49.76 USDRegular priceUnit price per
-
26#031-9025-18
2018 Black Steering Arm Elbow - Right
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
2933#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
3135#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
3236#099-2009-00
Quick Release Ball Joint
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
