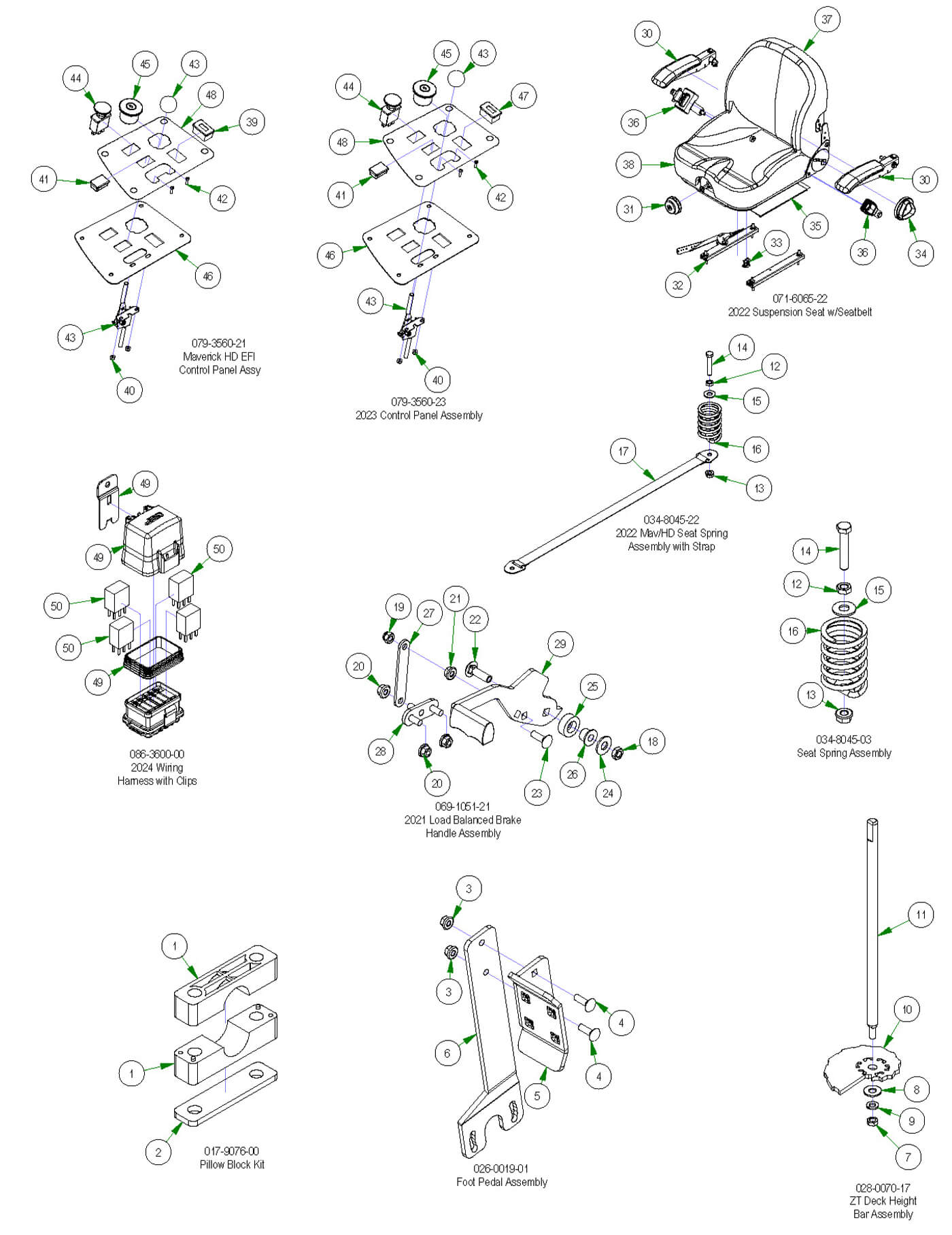

Control Panel Assembly & Seat Spring, etc.
Parts Index
- 1 2017 Magnum Pillow Block-Male (Qty 8)
- 2 2017 Magnum Pillow Block-Metal Plate (Qty 4)
- 3 5/16-18 Nylon Flange Nut (Qty 2)
- 4 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 5 Foot Pedal--Orange (Qty 1)
- 6 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 7 3/8-24 Hex Nut Zinc (Qty 1)
- 8 3/8 USS Flat Washer Zinc (Qty 1)
- 9 3/8 Lockwasher Zinc (Qty 1)
- 10 Deck Height Cam Plate (Qty 1)
- 11 2017 Deck Height Dial Rod ZT (Qty 1)
- 12 3/8-16 Half Jam Nut (Qty 1)
- 13 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 14 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 15 3/8 USS Flat Washer Zinc (Qty 1)
- 16 Seat Spring (Qty 1)
- 17 Seat Strap with Buckles (Qty 1)
- 18 3/8-16 Centerlock Half Nut (Qty 1)
- 19 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 20 5/16-18 Nylon Flange Nut (Qty 3)
- 21 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 22 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 23 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 24 3/8 USS Flat Washer Zinc (Qty 1)
- 25 Brake Lever Spacer (Qty 1)
- 26 Bronze Bushing SF-1220-8 (Qty 1)
- 27 Brake Cable Extension Plate (Qty 1)
- 28 Brake Load Balancer Weldment (Qty 1)
- 29 Load Balanced Brake Handle With Grip (Qty 1)
- 30 Arm Kit for 071-6065-00/071-6065-22 (Qty 1)
- 31 Weight Adjustment Knob for 071-6065-00/071-6065-22 (Qty 1)
- 32 SEAT RAILS for 071-6065-00/071-6065-22 (Qty 1)
- 33 Seat Switch for 071-6065-00/071-6065-22 (Qty 1)
- 34 Recliner Adjust Knob for 071-6065-00/71-6065-22 (Qty 1)
- 35 Bellows w/Hardware for 071-6065-22 (Qty 1)
- 36 OBSOLETE USE 071-6063-00 (Qty 1)
- 37 Back Cover for I3M - Recl - Logos for 071-6065-22 (Qty 1)
- 38 Cushion Cover Kit for I3M - Logo for 071-6065-22 (Qty 1)
- 39 Tachometer-Kohler/Yamaha EFI (Qty 1)
- 40 10-24 Nylon Insert Locknut Zin (Qty 2)
- 41 Light Plug (Qty 1)
- 42 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 43 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 44 PTO Engager-Switch for Blades (Qty 1)
- 45 Ignition Switch (Qty 1)
- 46 2023 Control Panel--Orange (Qty 1)
- 47 Tachometer-N310-0100-1018 (Qty 1)
- 48 2023 Control Panel Decal (Qty 1)
- 49 2019 Relay Cap Kit (Qty 1)
- 50 2019 Relay Terminal (Qty 4)
-
1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 8Regular price $19.89 USDRegular priceUnit price per
-
2#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 4Regular price $19.89 USDRegular priceUnit price per
-
320#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
423#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
6#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
7#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
81524#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
9#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
10#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
11#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
12#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
13#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
14#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
16#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
17#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
18#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
19#013-8042-00
5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
21#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
22#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
25#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
26#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
27#039-0170-00
Brake Cable Extension Plate
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
28#039-0171-00
Brake Load Balancer Weldment
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
29#069-1051-00
Load Balanced Brake Handle With Grip
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
30#071-6065-04
Arm Kit for 071-6065-00/071-6065-22
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
31#071-6065-05
Weight Adjustment Knob for 071-6065-00/071-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
32#071-6065-06
SEAT RAILS for 071-6065-00/071-6065-22
Qty Used: 1Regular price $92.87 USDRegular priceUnit price per
-
33#071-6065-07
Seat Switch for 071-6065-00/071-6065-22
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
34#071-6065-10
Recliner Adjust Knob for 071-6065-00/71-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
35#071-6065-13
Bellows w/Hardware for 071-6065-22
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
36#071-6065-14
OBSOLETE USE 071-6063-00
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
37#071-6065-15
Back Cover for I3M - Recl - Logos for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
38#071-6065-16
Cushion Cover Kit for I3M - Logo for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
39#083-4050-00
Tachometer-Kohler/Yamaha EFI
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
40#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
41#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
42#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
43#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
44#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
45#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
46#079-3461-00
2023 Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
47#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
48#091-4072-00
2023 Control Panel Decal
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
49#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
50#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
