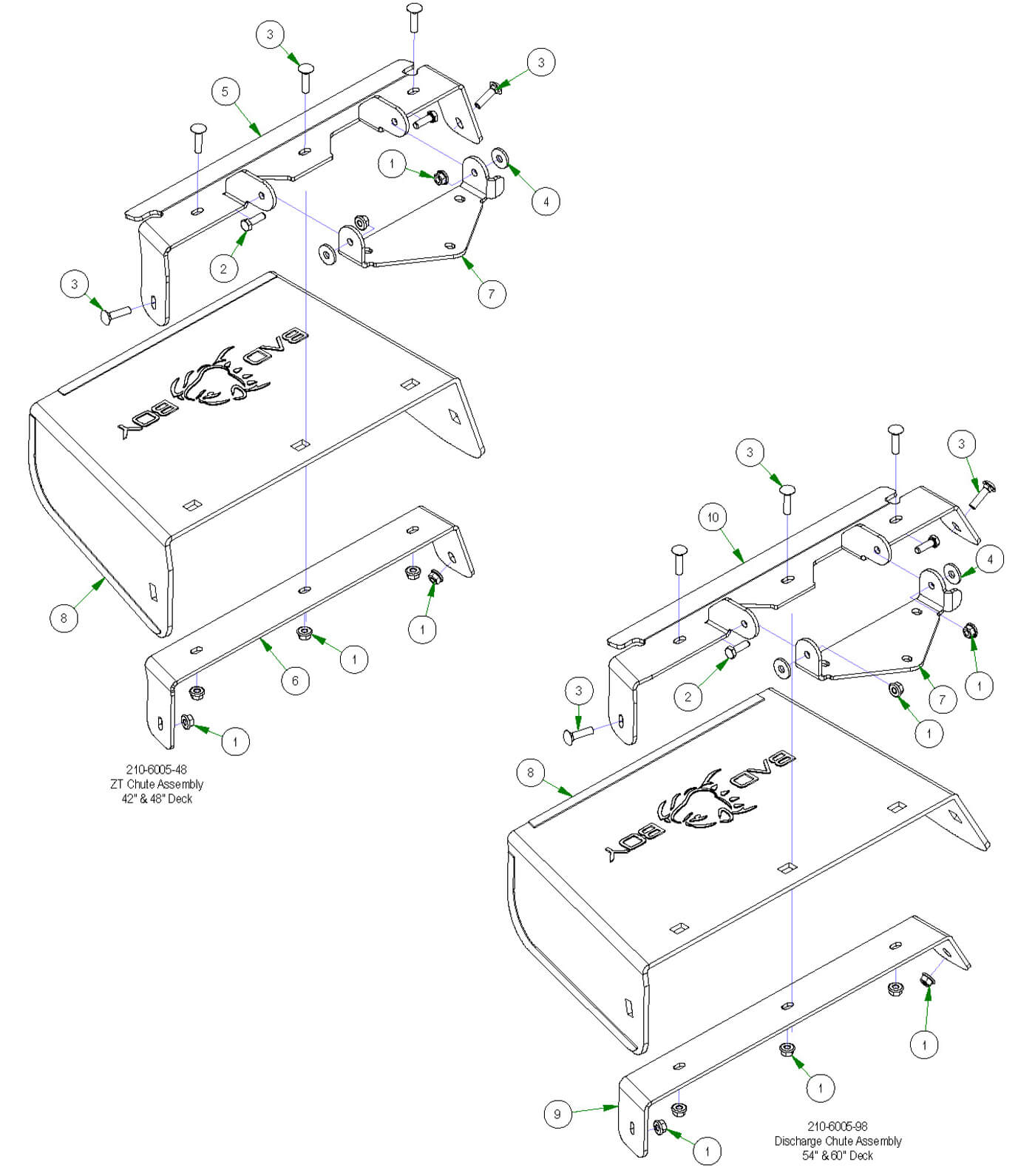

Chute Assemblies
Parts Index
- 1 5/16-18 Nylon Flange Nut (Qty 7)
- 2 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 3 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 4 .360 ID Plastic Washer (Qty 2)
- 5 48/52 Discharge Top Bracket (Qty 1)
- 6 48/52 Discharge Lower Bracket (Qty 1)
- 7 Discharge Chute Hanger-Deck (Qty 1)
- 8 Discharge Chute (Rubber Component) (Qty 1)
- 9 60 Discharge Lower Bracket (Qty 1)
- 10 60 Discharge Chute Upper (Qty 1)
-
1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
2#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
3#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
4#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
5#039-4870-00
48/52 Discharge Top Bracket
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
6#039-4871-00
48/52 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
7#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
8#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
9#039-4863-00
60 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
10#039-4864-00
60 Discharge Chute Upper
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
