Briggs

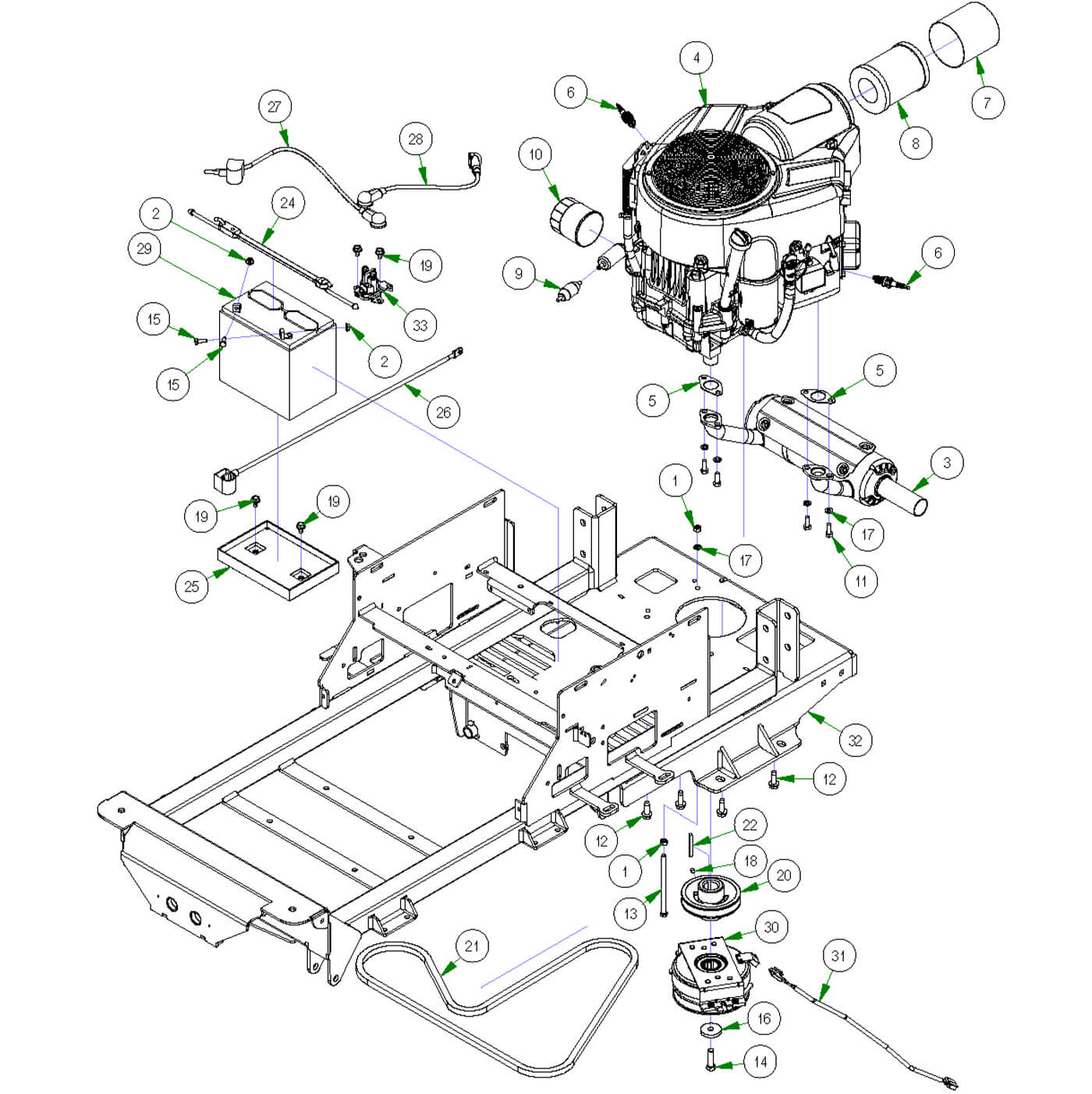

Parts Index
- 1 5/16-18 Hex Nuts Zinc (Qty 2)
- 2 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 3 810cc Vanguard Exhaust (Qty 1)
- 4 Vangaurd 27hp CXI with Out Oil Filter (Qty 1)
- 5 Exhaust Gasket for 015-0077-00 (Qty 2)
- 6 Spark Plug-Kohler/Briggs (Qty 2)
- 7 Pre-Cleaner for Vanguard CXI Engine (Qty 1)
- 8 OBSOLETE USE 063-3003-00 (Qty 1)
- 9 Universal Inline Fuel Filter (Qty 1)
- 10 Briggs Oil Filter (Qty 1)
- 11 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 12 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 13 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 14 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 15 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 16 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 17 5/16 Lock washer Zinc (Qty 5)
- 18 5/16-24 x 1/4 Set Screw (Qty 1)
- 19 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 20 4 3/4 Motor Pulley (Qty 1)
- 21 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick (Qty 1)
- 22 1/4 X 2 Square Key Stock (Qty 1)
- 23 2023 Battery Hold Down Assembly (Qty 1)
- 24 2023 Rubber Battery Hold Down Strap (Qty 1)
- 25 2023 Battery Tray Only (Qty 1)
- 26 24 inch Black Cable - MZ/ZT (Qty 1)
- 27 24 Red Battery Cable (Qty 1)
- 28 14" Red Battery Cable (Qty 1)
- 29 Battery - All models except Renegade and Revolt (Qty 1)
- 30 Clutch For 1-1/8" Shaft (Qty 1)
- 31 Clutch Pigtail (Qty 1)
- 32 2023 Maverick Frame--Orange (Qty 1)
- 33 Solenoid (752-1251-210HP) (Qty 1)
-
1#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
2#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
3#015-0057-00
2017 Compact Outlaw Exhaust 810 Vanguard
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
4#015-0511-00
Vangaurd 27hp CXI with Out Oil Filter
Qty Used: 1Regular price $2,699.99 USDRegular priceUnit price per
-
5#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
6#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
7#063-1000-00
Pre-Cleaner for Vanguard CXI Engine
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
8#063-1005-00
OBSOLETE USE 063-3003-00
Qty Used: 1Regular price $30.45 USDRegular priceUnit price per
-
9#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
10#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
11#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
12#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
13#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
14#018-5450-21
7/16-20 x 1.5\" Hex bolt GR 8 w/ Patch
Qty Used: 1Regular price $1.25 USDRegular priceUnit price per
-
15#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
16#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
17#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
18#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
19#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
20#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
21#041-7400-00
Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
22#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
23#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
24#043-8930-00
2023 Rubber Battery Hold Down Strap
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
25#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
26#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
27#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
28#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
29#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
31#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
33#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
