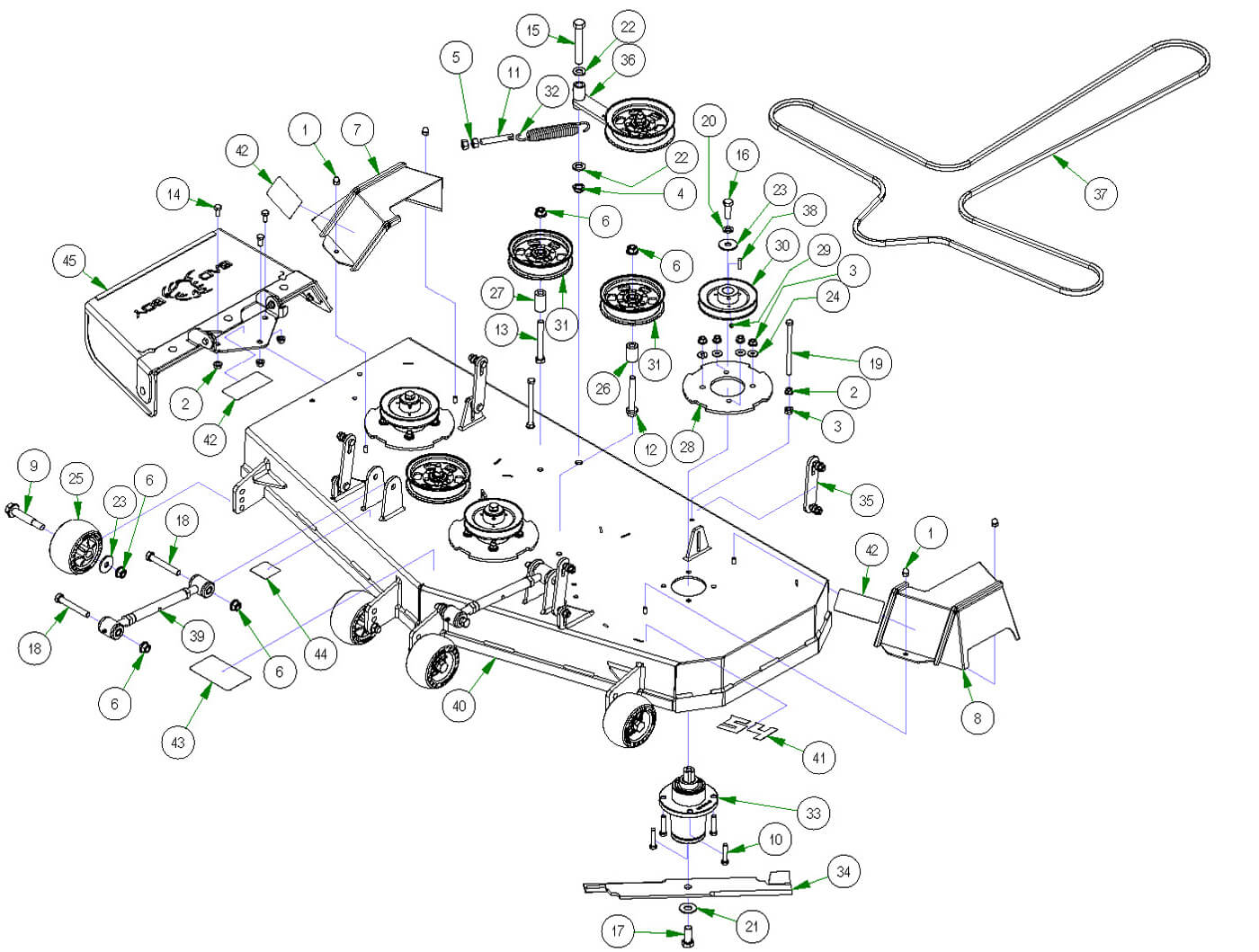

54" Deck
Parts Index
- 1 Acorn Nut-Pulley Cover (Qty 4)
- 2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 5)
- 3 3/8 Nylock Flange Nut (Qty 14)
- 4 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 5 1/2-13 Hex Nuts Zinc (Qty 2)
- 6 1/2-13 Nylon Insert Flange Nut (Qty 13)
- 7 RH Pulley Cover 54"/60" (Qty 1)
- 8 LH Pulley Cover 54"/60" (Qty 1)
- 9 Deck Wheel Bolt (Qty 6)
- 10 3/8-16 x 1-3/4 Hex C/S (GR 5) ZC (Qty 12)
- 11 All Thread (Qty 1)
- 12 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 13 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 14 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 15 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 16 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 17 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 18 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 19 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 20 1/2 Lockwasher Zinc (Qty 3)
- 21 5/8 Flat Washer (Qty 3)
- 22 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 23 1/2 Belleville Washer #K2000-G (Qty 9)
- 24 5/16 USS Flat Washer Zinc (Qty 12)
- 25 Deck Wheel (Qty 6)
- 26 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 27 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 28 Deck Spindle Support Plate 60"--Orange (Qty 3)
- 29 5/16-24 x 1/4 Set Screw (Qty 3)
- 30 5.25" Deck Pulley-54" ZT/Maverick/Outlaw (Qty 3)
- 31 5 3/4 Idler Pulley-Capitol (Qty 3)
- 32 2015 Deck Idler Spring (Qty 1)
- 33 Spindle-Aluminum (Qty 3)
- 34 54" Blade for Avenger/ZT/Mav/Outlaw/Revolt (Qty 3)
- 35 MZ/ZT Deck Hanger Assembly (Qty 1)
- 36 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 37 54" 2017&Up MZ/ Magnum/ZT/Mav/20 Avenger Deck Belt (Qty 1)
- 38 1/4 x 1 Square Key (Qty 3)
- 39 Toplink (Qty 2)
- 40 2023 54" ZT/Maverick/HD Deck--Orange (Qty 1)
- 41 MY24 54" Deck Decal (Qty 1)
- 42 Danger Decal-Spindle/Discharge (Qty 3)
- 43 Deck Belt Route Decal (Qty 1)
- 44 Rubber Bushing Turnbuckle Patent Decal (Qty 1)
- 45 2017 54"/60" ZT/Mav Chute Assembly (Qty 1)
-
1#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
2#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 5Regular price $1.49 USDRegular priceUnit price per
-
3#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
4#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
5#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
6#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 13Regular price $1.39 USDRegular priceUnit price per
-
7#014-5020-00
2021 Maverick 54"/60" RH Pulley Cover
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
8#014-5021-00
2021 Maverick 54"/60" LH Pulley Cover
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
9#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 6Regular price $5.89 USDRegular priceUnit price per
-
10#018-0075-00
3/8-16 x 1-3/4 Hex C/S (GR 5) ZC
Qty Used: 12Regular price $2.99 USDRegular priceUnit price per
-
11#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
12#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
13#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
14#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
15#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
16#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
17#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
18#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
19#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
20#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
21#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
22#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
23#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 9Regular price $4.69 USDRegular priceUnit price per
-
24#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
25#022-1000-00
Deck Wheel
Qty Used: 6Regular price $15.99 USDRegular priceUnit price per
-
26#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
27#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
28#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 3Regular price $13.26 USDRegular priceUnit price per
-
29#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
30#033-6006-00
5.25" Deck Pulley-54" ZT/Maverick/Outlaw
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
31#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 3Regular price $33.16 USDRegular priceUnit price per
-
32#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
33#037-6015-50
Spindle-Aluminum
Qty Used: 3Regular price $199.99 USDRegular priceUnit price per
-
34#038-0001-00
54\" Blade for Avenger/ZT/Mav/Outlaw/Revolt
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
35#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
36#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
37#041-1560-00
54" 2017&Up MZ/ Magnum/ZT/Mav/20 Avenger Deck Belt
Qty Used: 1Regular price $82.99 USDRegular priceUnit price per
-
38#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
-
40#060-2314-00
2023 54" ZT/Maverick/HD Deck--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
41#091-0504-00
MY24 54" Deck Decal
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
42#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 3Regular price $2.91 USDRegular priceUnit price per
-
43#091-3309-00
Deck Belt Route Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
44#091-8001-00
Rubber Bushing Turnbuckle Patent Decal
Qty Used: 1Regular price $0.73 USDRegular priceUnit price per
-
45#210-6005-98
2017 54"/60" ZT/Mav Chute Assembly
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
