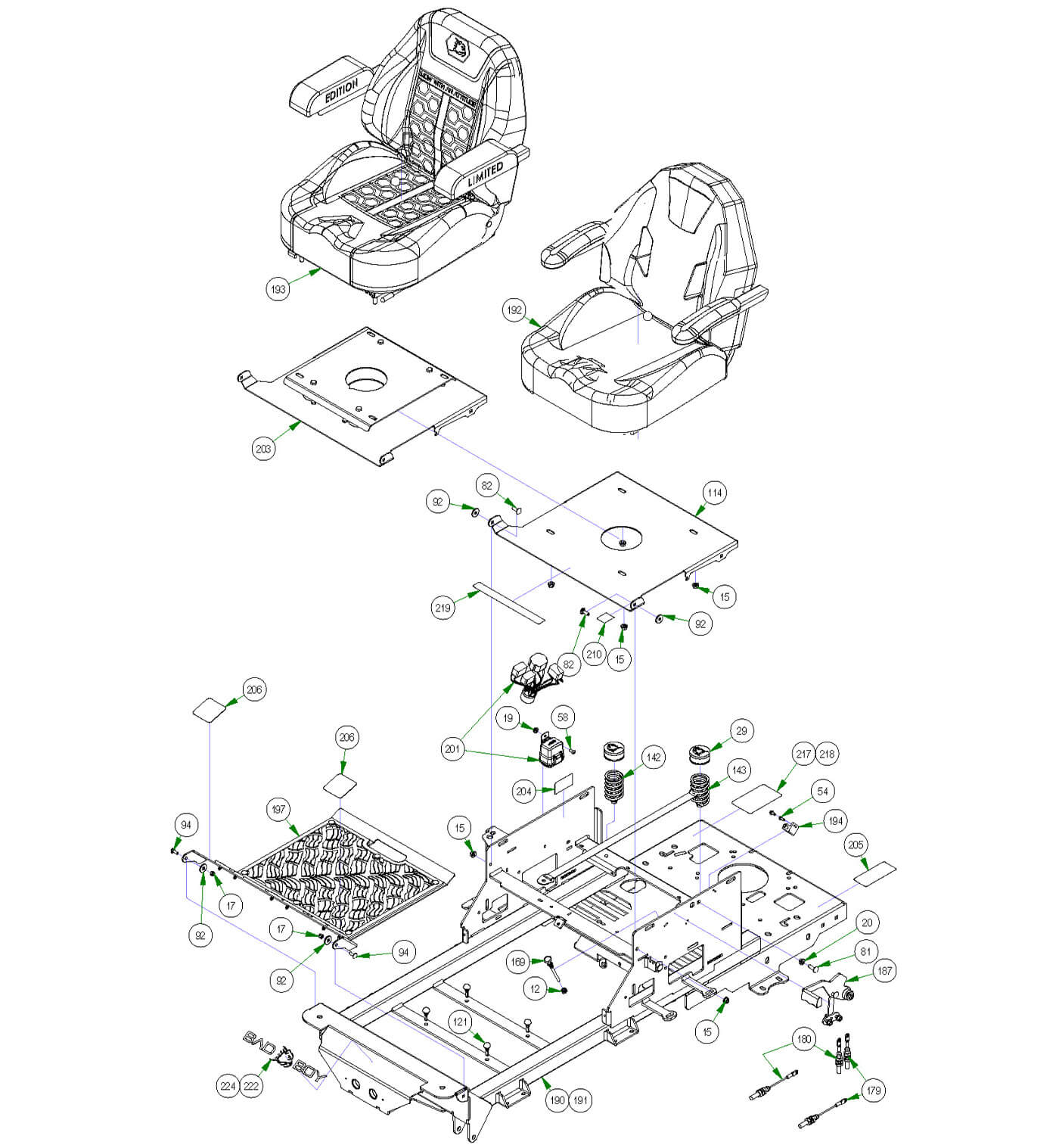

Upper Frame
Parts Index
- 12 3/8-24 Hex Nut Zinc (Qty 1)
- 15 5/16-18 Nylon Flange Nut (Qty 6)
- 17 1/4-20 Nylon Insert Locknut Zi (Qty 2)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 20 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 29 Seat Spring Cap Cover (Qty 2)
- 54 12-24 x 1/2 HWH Bolt (Qty 2)
- 58 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 81 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 82 5/16 x 7/8 Carriage Bolt (Qty 2)
- 92 .360 ID Plastic Washer (Qty 4)
- 94 1/4 x 3/4 Carriage Bolt (Qty 2)
- 114 Seat Plate 2016--Orange (Qty 1)
- 121 2023 Floor Board Rubber Bumpers (Qty 4)
- 142 2017 MZ/ZT Seat Spring Assembly (Qty 1)
- 143 2022 Mav/HD Seat Spring Assembly with Strap (Qty 1)
- 169 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 179 2021 Load Balanced Brake Cable 1 (Qty 1)
- 180 2021 Load Balanced Brake Cable 2 (Qty 1)
- 187 Brake Handle Assembly For HD Down (Qty 1)
- 192 2021 ZT Elite Seat (Qty 1)
- 193 ZT Limited Edition Seat (Qty 1)
- 194 Safety Switch (Qty 1)
- 197 2021 Maverick Floorboard Assembly (Qty 1)
- 201 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 203 2019 Rubber Isolated Seat Assembly (Qty 1)
- 204 ANSI Decal BZS60KT745 2022 (Qty 1)
- 205 2023 EPA Build Date Punch Decal (Qty 1)
- 206 ZT, Mav, HD Steering Control Decals (Qty 1)
- 210 MZ, ZT, Aven, Mav, HD Brake Decal (Qty 1)
- 217 Pump Belt Route Decal-Pump Pla (Qty 1)
- 219 Long Seat Plate Warning Decal (Qty 1)
- 222 Flying Bulldog Front Bumper Decal (Qty 1)
-
12#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
15#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
17#013-8073-00
1/4-20 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
20#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
29#014-8047-00
Seat Spring Cap Cover
Qty Used: 2Regular price $8.12 USDRegular priceUnit price per
-
54#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
58#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
81#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
82#018-8066-00
5/16 x 7/8 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
92#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
94#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
114#026-1016-00
Seat Plate 2016--Orange
Qty Used: 1Regular price $102.11 USDRegular priceUnit price per
-
121#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 4Regular price $1.09 USDRegular priceUnit price per
-
142#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
143#034-8045-22
2022 Mav/HD seat spring assembly with strap
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
169#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
179#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
180#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
187#069-1051-21
Load Balanced Brake Handle Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
192#071-2101-00
2021 ZT Elite Seat
Qty Used: 1Regular price $595.79 USDRegular priceUnit price per
-
193#071-2400-00
ZT Limited Edition Seat
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
194#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
197#079-3470-21
2021 Maverick Floorboard Assembly
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
201#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-

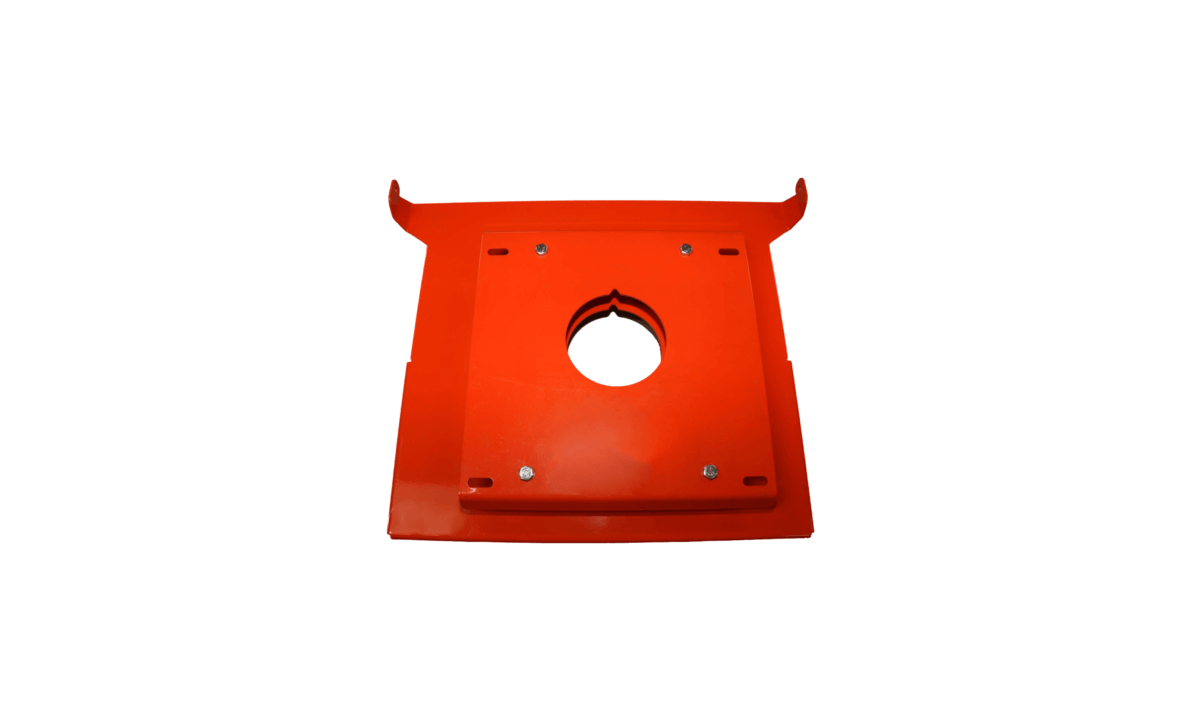

203#088-0510-00
2019 Rubber Isolated Seat Assembly
Qty Used: 1Regular price $309.99 USDRegular priceUnit price per
-
204#091-0010-22
ANSI Decal BZS60KT745 2022
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
205#091-0015-23
2023 EPA Build Date Punch Decal
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
206#091-0021-00
2018 Maverick Steering Control Decals
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
210#091-0339-18
2018 MZ/Magnum/ZT/MAV/Comp Out Brake Decal
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
217#091-3017-00
Pump Belt Route Decal-Pump Pla
Qty Used: 1Regular price $4.47 USDRegular priceUnit price per
-
219#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
222#091-4063-00
Flying Bulldog Front Bumper Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
