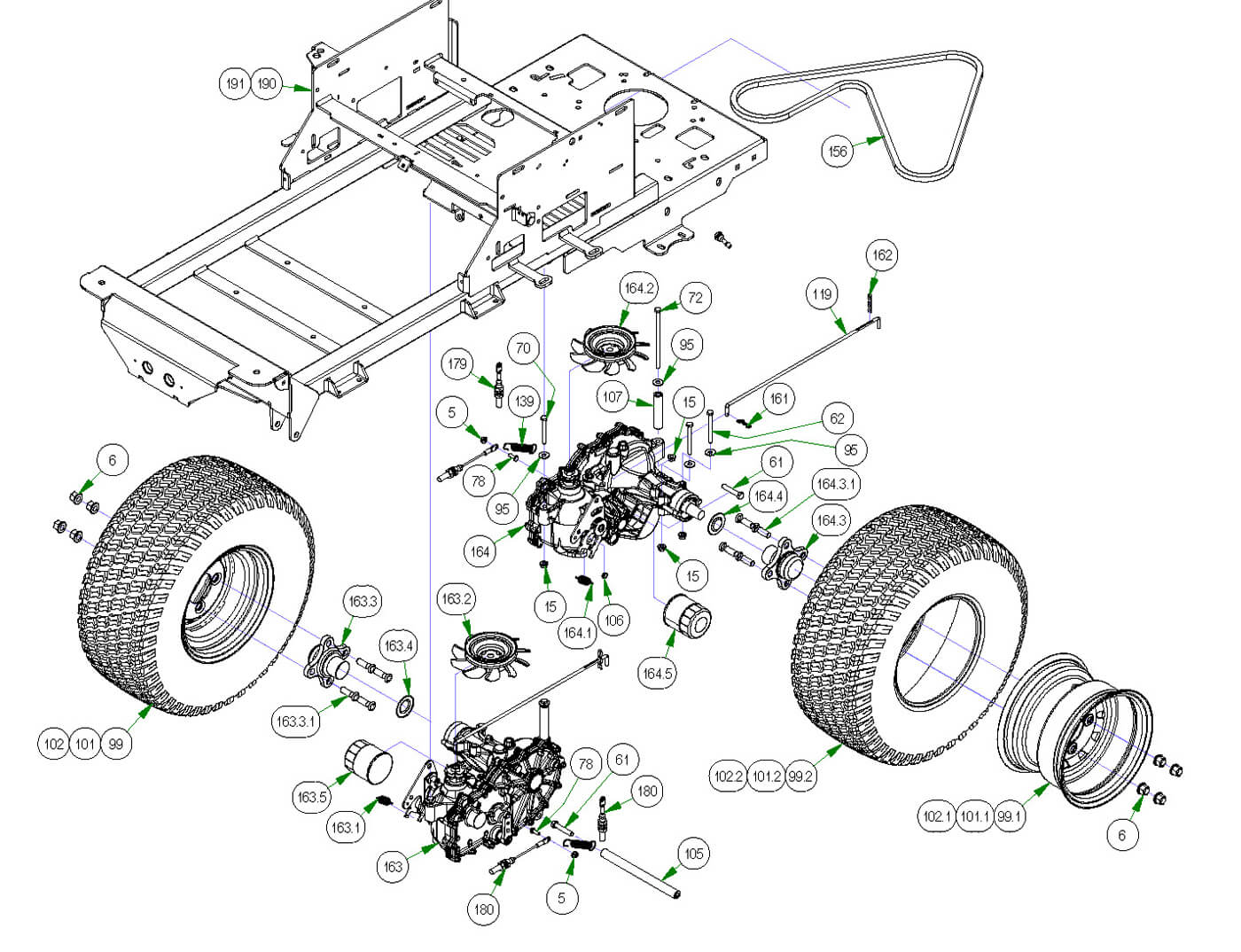

Transaxle
Parts Index
- 5 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 6 Acorn Lug Nut (Qty 8)
- 15 5/16-18 Nylon Flange Nut (Qty 8)
- 61 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 2)
- 62 5/16-18 X 3 GR 5 Hex Bolt Zinc (Qty 4)
- 70 5/16 x 2 1/2 Bolt (Qty 2)
- 72 5/16-18 X 6 GR 5 Hex Bolt Zinc (Qty 2)
- 78 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 95 5/16 USS Flat Washer Zinc (Qty 8)
- 99 2017 ZT Black Assembly 22x11-10 (Qty 2)
- 99.1 2017 ZT Black Wheel (Qty 1)
- 99.2 2014 ZT Tire Only 22x11-10 (Qty 1)
- 101 2017 ZT Black Assembly 22x10-10 (Qty 2)
- 101.1 2017 48 ZT 10" Black Wheel (Qty 1)
- 101.2 2017 22x10-10 Tire for the 48" ZT (Qty 1)
- 102 22x11-10 Reaper Rear Black Assy (Qty 2)
- 102.1 2017 ZT Black Wheel (Qty 1)
- 102.2 22x11-10 4pr KTW Reaper Tire Only for 022-2215-00 (Qty 1)
- 105 2017 Transaxle Spacer-ZT (Qty 1)
- 106 Drive Arm Transaxle Spacer (Qty 2)
- 107 2017 Transaxle Spacer (Qty 2)
- 119 Neutral Rod (Qty 2)
- 139 Brake Return Spring (Qty 2)
- 156 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 161 Bow Pin (Qty 2)
- 162 Neutral Rod Clip (Qty 2)
- 163 2021 RH 3100 Transaxle (Qty 1)
- 163.1 Gold Transaxle Spring (Qty 1)
- 163.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
- 163.3 ZT Transaxle Wheel Hub (Qty 1)
- 163.3.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 4)
- 163.4 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 163.5 ZT Hydraulic Filter (Qty 1)
- 164 2021 LH 3100 Transaxle (Qty 1)
- 164.1 Gold Transaxle Spring (Qty 1)
- 164.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
- 164.3 ZT Transaxle Wheel Hub (Qty 1)
- 164.3.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 4)
- 164.4 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 164.5 ZT Hydraulic Filter (Qty 1)
- 179 2021 Load Balanced Brake Cable 1 (Qty 1)
- 180 2021 Load Balanced Brake Cable 2 (Qty 1)
-
5#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
6#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
15#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
61#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.89 USDRegular priceUnit price per
-
62#018-4701-00
5/16-18 X 3 GR 5 Hex Bolt Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
70#018-5344-00
5/16 x 2 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
72#018-5355-00
5/16-18 X 6 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $2.19 USDRegular priceUnit price per
-
78#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
95#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
99#022-2015-00
2017 ZT Black Assembly 22x11-10
Qty Used: 2Regular price $290.99 USDRegular priceUnit price per
-
99.1102.1#022-2015-50
2017 ZT Black Wheel
Qty Used: 1Regular price $104.99 USDRegular priceUnit price per
-
99.2#022-2020-00
2014 ZT Tire Only 22x11-10
Qty Used: 1Regular price $159.99 USDRegular priceUnit price per
-
101#022-2018-00
2017 ZT Black Assembly 22x10-10
Qty Used: 2Regular price $290.99 USDRegular priceUnit price per
-
101.1#022-2019-17
2017 48 ZT 10" Black Wheel
Qty Used: 1Regular price $92.99 USDRegular priceUnit price per
-
101.2#022-2024-17
2017 22x10-10 Tire for the 48" ZT
Qty Used: 1Regular price $145.99 USDRegular priceUnit price per
-
102#022-2215-00
22x11-10 Reaper Rear Black Assy
Qty Used: 2Regular price $199.99 USDRegular priceUnit price per
-

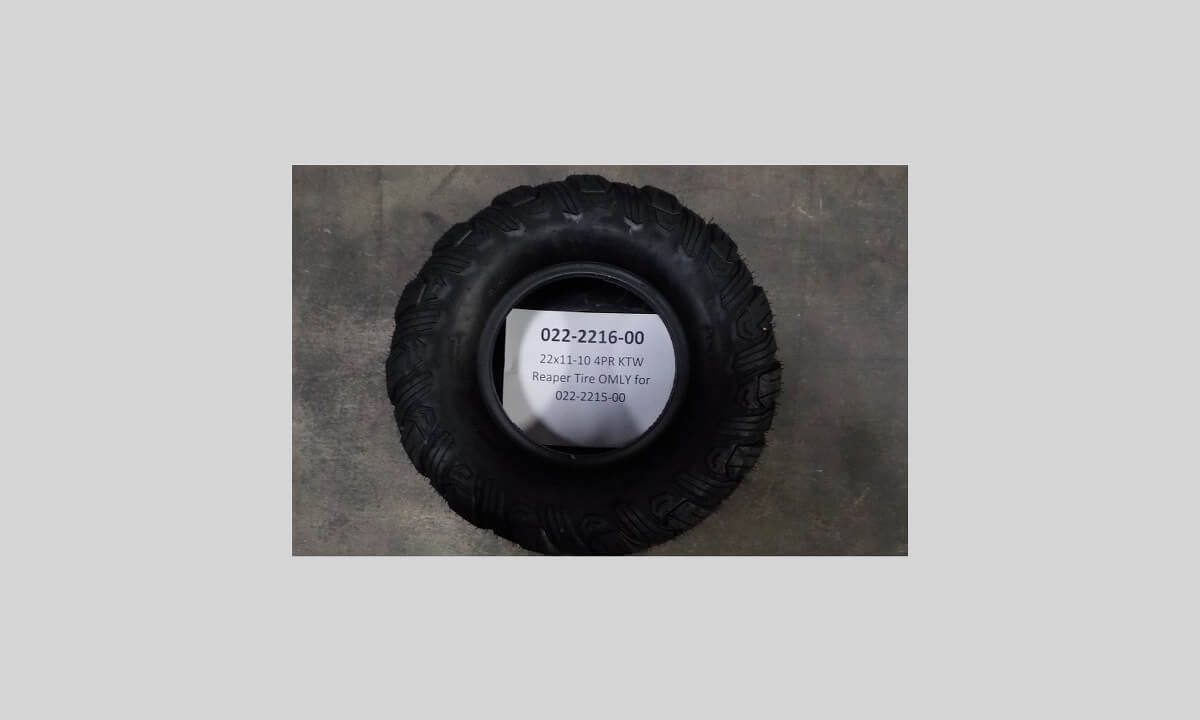

102.2#022-2216-00
22x11-10 4pr KTW Reaper Tire Only for 022-2215-00
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
105#025-0017-00
2017 Transaxle Spacer-ZT
Qty Used: 1Regular price $13.12 USDRegular priceUnit price per
-
106#025-0036-00
Drive Arm Transaxle Spacer
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
107#025-0070-00
2017 Transaxle Spacer
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
119#028-0070-00
Neutral Rod
Qty Used: 2Regular price $11.66 USDRegular priceUnit price per
-
139#034-1026-00
Brake Return Spring
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
156#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
-
162#044-2008-00
Neutral Rod Clip
Qty Used: 2Regular price $1.31 USDRegular priceUnit price per
-
163#050-2095-02
2021 RH 3100 Transaxle
Qty Used: 1Regular price $729.99 USDRegular priceUnit price per
-
163.1164.1#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
163.2164.2#050-2070-00
2021 ZT/Maverick Transaxle Fan/Pulley Kit
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
163.3164.3#050-2076-00
ZT Transaxle Wheel Hub
Qty Used: 1Regular price $84.64 USDRegular priceUnit price per
-
163.3.1164.3.1#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 4Regular price $5.10 USDRegular priceUnit price per
-
163.4164.4#050-8010-00
2021 ZT/Maverick Transaxle Seal Kit (ZT-2800)
Qty Used: 1Regular price $109.46 USDRegular priceUnit price per
-
163.5164.5#063-1050-00
ZT Hydraulic Filter
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
164#050-2096-02
2021 LH 3100 Transaxle
Qty Used: 1Regular price $729.99 USDRegular priceUnit price per
-
179#064-3050-21
2021 Load Balanced Brake Cable 1
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
180#064-3051-21
2021 Load Balanced Brake Cable 2
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
