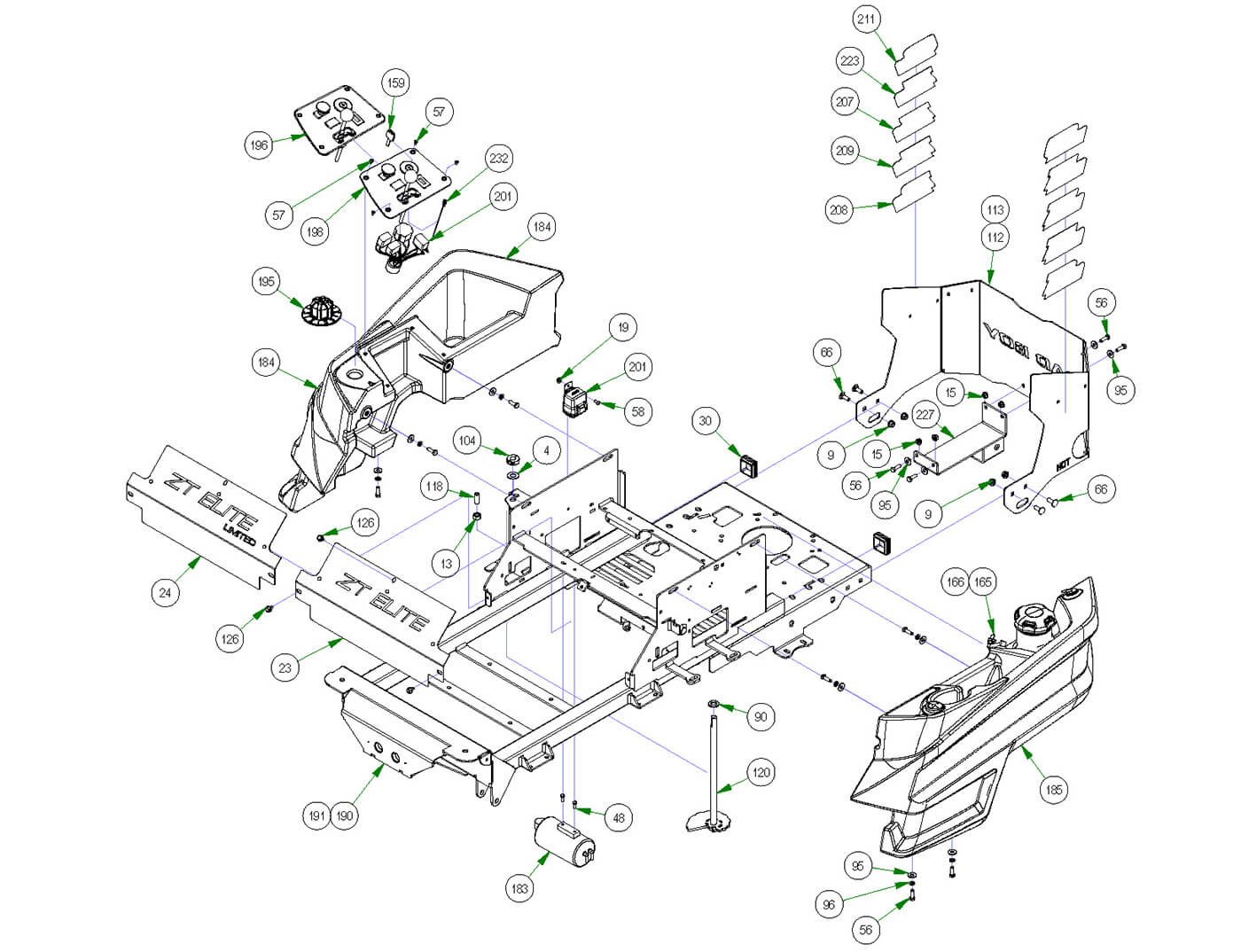

Fuel Tank & Rear Cover
Parts Index
- 4 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 9 3/8 Nylock Flange Nut (Qty 4)
- 13 1/2-13 Hex Nuts Zinc (Qty 1)
- 15 5/16-18 Nylon Flange Nut (Qty 4)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 1)
- 23 2023 ZT Elite Cooler Cover Assembly (Qty 1)
- 30 Frame Plug 2x2 (Qty 2)
- 48 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 56 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 11)
- 57 10-32 X 3/8 BS C/S 18-8 SS with Patch (Qty 4)
- 58 1/4-20 X 1/2 BS C/S 18-8 SS (Qty 1)
- 66 3/8 x 1 Carriage Bolt (Qty 4)
- 90 .630 ID X 1.122 OD X .142 THK (Qty 1)
- 95 5/16 USS Flat Washer Zinc (Qty 11)
- 96 5/16 Lock washer Zinc (Qty 7)
- 104 Split Collar (Qty 1)
- 112 2022 ZT Elite Rear Plate Assembly (Qty 1)
- 118 Deck Height Cam Plunger (Qty 1)
- 120 2017 ZT Deck Height Bar Assy. (Qty 1)
- 126 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 3)
- 159 Ignition Key (Qty 1)
- 183 ZT/Mav EPA Cannister Assy (Qty 1)
- 184 2021 Maverick Right Side Tank (Qty 1)
- 185 2021 Maverick Left Side Tank (Qty 1)
- 195 Deck Height Dial (Qty 1)
- 198.4 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 201 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 207 2021 ZT Elite 747cc Back Plate Cluster (Qty 1)
- 208 2021 ZT Elite 726cc Back Plate Cluster (Qty 1)
- 209 2021 ZT Elite 725cc Back Plate Cluster (Qty 1)
- 232 2017 MZ/ZT/MAV/HD/Revolt Tach Wire Assy (Qty 1)
-
4#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
13#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
15#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
23#014-3320-23
2023 ZT Elite Cooler Cover Assembly
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
30#014-9000-00
Frame Plug 2x2
Qty Used: 2Regular price $2.48 USDRegular priceUnit price per
-
48#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
56#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 11Regular price $0.00 USDRegular priceUnit price per
-
57#018-2010-00
10-32 X 3/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
58#018-2012-00
1/4-20 X 1/2 BS C/S 18-8 SS
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
66#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
90#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
95#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 11Regular price $0.79 USDRegular priceUnit price per
-
96#019-8051-00
5/16 Lock washer Zinc
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
104#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
112#026-0225-00
2022 ZT Elite Rear Plate Assembly
Qty Used: 1Regular price $142.99 USDRegular priceUnit price per
-
118#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
120#028-0070-17
2017 ZT Deck Height Bar Assy.
Qty Used: 1Regular price $27.72 USDRegular priceUnit price per
-
126#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 3Regular price $0.89 USDRegular priceUnit price per
-
159#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
183#067-0020-01
ZT/Mav EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
184#067-2020-00
2021 Maverick Right Side Tank
Qty Used: 1Regular price $238.83 USDRegular priceUnit price per
-
185#067-2021-00
2021 Maverick Left Side Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
195#077-9000-00
Deck Height Dial
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
198.4#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
201#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
207#091-0315-21
2021 ZT Elite 747cc Back Plate Cluster
Qty Used: 1Regular price $12.99 USDRegular priceUnit price per
-
208#091-0316-21
2021 ZT Elite 726cc Back Plate Cluster
Qty Used: 1Regular price $13.99 USDRegular priceUnit price per
-
209#091-0317-21
2021 ZT Elite 725cc Back Plate Cluster
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
232#216-1000-17
2017 MZ/ZT/MAV Tach Wire Assy
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
