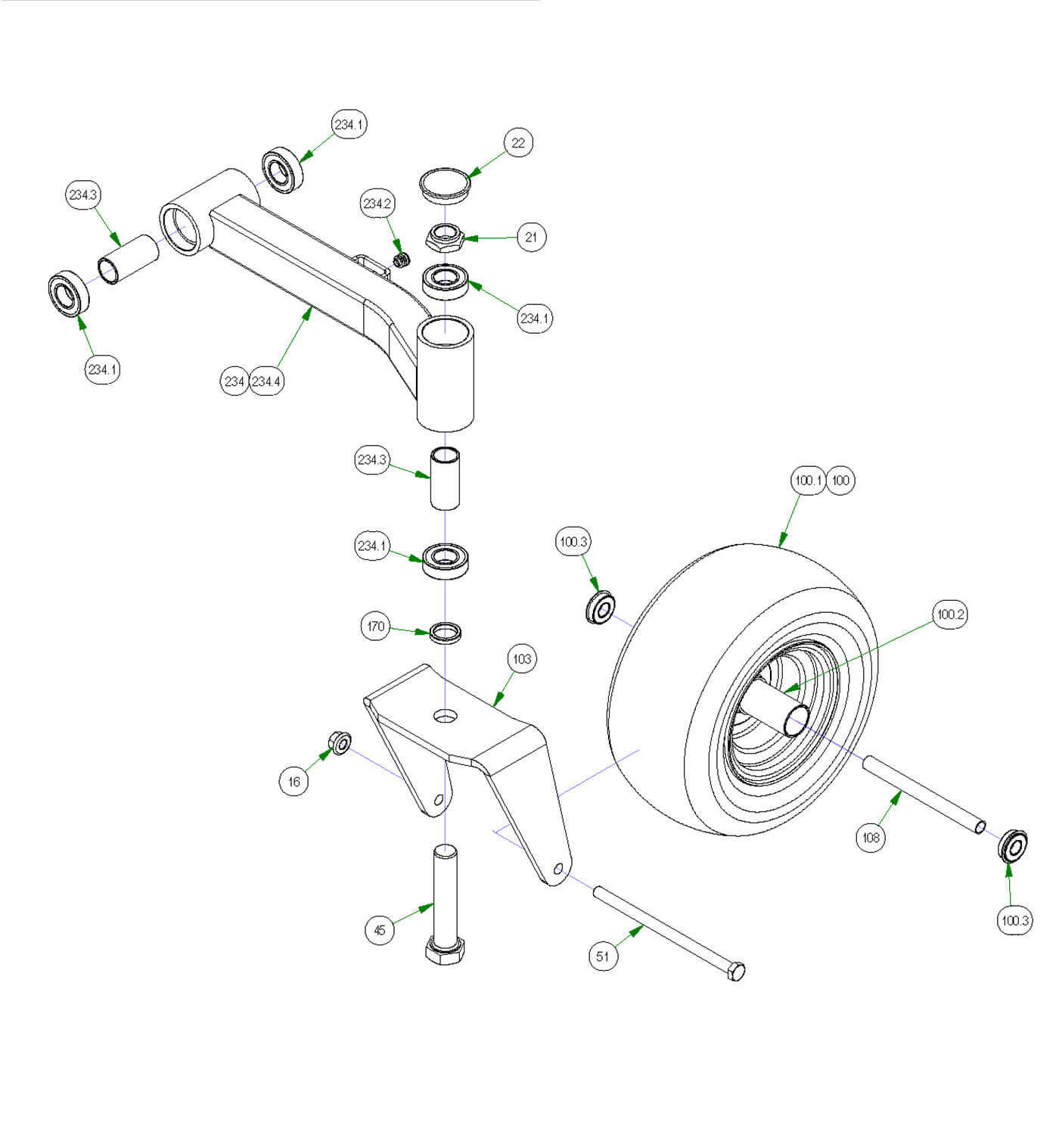

Front Fork
Parts Index
- 16 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 21 1" Nylock Nut 1/2 Nut - Fine (Qty 1)
- 22 Bearing Retainer Cap (Qty 1)
- 45 1-14 X 5 BOLT GR 8 ZC YELLOW (Qty 1)
- 51 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 1)
- 100 13x6.50-6 Caster Front (Qty 1)
- 100.1 13 x 6.50 - 6 Tire (Qty 1)
- 100.2 6 x 4.5 Black Wheel - Small Bore (Qty 1)
- 100.3 Ball Bearing w/clip; 99502H-NR; 5/8" Bore (Qty 2)
- 103 ZT, AVENG Front fork (Qty 1)
- 108 Front Wheel Spanner-All Models (Qty 1)
- 170 Spacer ( Front Fork and Suspension ) (Qty 1)
- 234 2021 ZT Suspension Arm Assembly Left (Qty 1)
- 234.1 Caster Bearing (Qty 4)
- 234.2 5/8 Round Insert - Deck (Qty 1)
- 234.3 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
-
16#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
21#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 1Regular price $3.29 USDRegular priceUnit price per
-
22#014-2025-00
Bearing Retainer Cap
Qty Used: 1Regular price $2.49 USDRegular priceUnit price per
-
45#018-0005-00
1-14 X 5 BOLT GR 8 ZC YELLOW
Qty Used: 1Regular price $5.89 USDRegular priceUnit price per
-
51#018-0040-00
1/2-13x8 1/2 Gr5 Hex Bolt
Qty Used: 1Regular price $14.59 USDRegular priceUnit price per
-
100#022-2017-00
13x6.50-6 Caster Front
Qty Used: 1Regular price $87.99 USDRegular priceUnit price per
-
100.1#022-5347-00
13 x 6.50 - 6 Tire
Qty Used: 1Regular price $89.99 USDRegular priceUnit price per
-
100.2#022-7007-00
6 x 4.5 Black Wheel - Small Bore
Qty Used: 1Regular price $53.09 USDRegular priceUnit price per
-
100.3#022-7009-00
Ball Bearing w/clip; 99502H-NR; 5/8" Bore
Qty Used: 2Regular price $12.49 USDRegular priceUnit price per
-
103#023-0003-00
ZT, AVENG Front fork
Qty Used: 1Regular price $36.49 USDRegular priceUnit price per
-
108#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 1Regular price $9.49 USDRegular priceUnit price per
-
170#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
234#250-1801-21
2021 ZT Suspension Arm Assembly Left
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
234.1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
234.2#014-3010-00
5/8 Round Insert - Deck
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
234.3#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
