EPA Cannister, Floorboard, Pump idler etc.

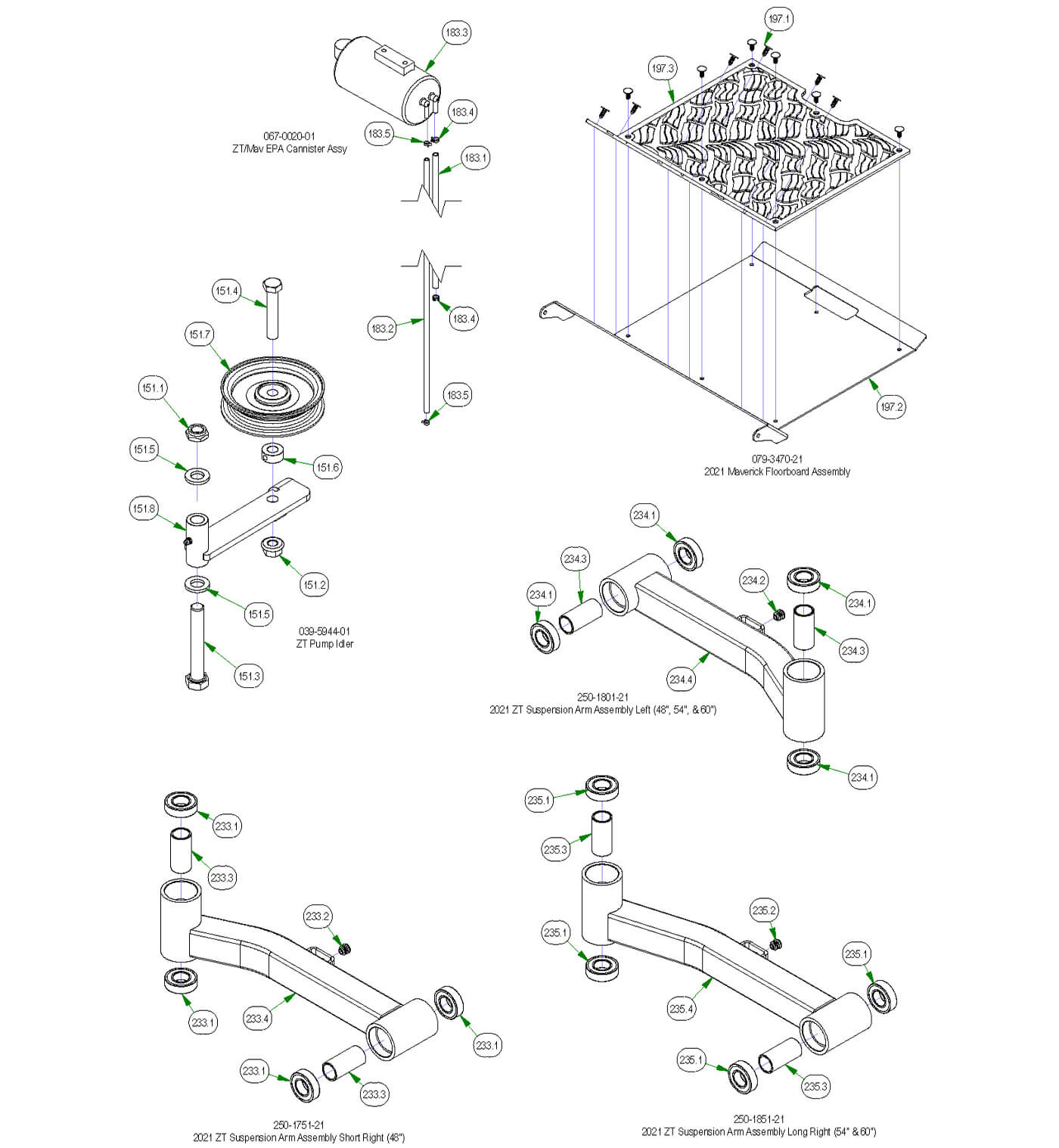

Parts Index
- 151 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 151.1 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 151.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 151.3 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 151.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 151.5 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 151.6 1/2 Set Collar w/set collar (Qty 1)
- 151.7 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 151.8 Idler Bracket (Qty 1)
- 183 ZT/Mav EPA Cannister Assy (Qty 1)
- 183.1 1/4 Vinyl 46" EPA Line (Qty 1)
- 183.2 3/16 Vinyl 55" EPA Line (Qty 1)
- 183.3 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 183.4 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 183.5 3/16" Vinyl Hose Clamp (Qty 2)
- 197 2021 Maverick Floorboard Assembly (Qty 1)
- 197.1 Ratchet Fastener - Floorboard (Qty 12)
- 197.2 Maverick Floor Panel--Orange (Qty 1)
- 197.3 2021 Maverick Floor Mat W/ Reaper Tread (Qty 1)
- 233 2021 ZT Suspension Arm Assembly Short Right (Qty 1)
- 233.1 Caster Bearing (Qty 4)
- 233.2 5/8 Round Insert - Deck (Qty 1)
- 233.3 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 234 2021 ZT Suspension Arm Assembly Left (Qty 1)
- 234.1 Caster Bearing (Qty 4)
- 234.2 5/8 Round Insert - Deck (Qty 1)
- 234.3 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 235 2021 ZT Suspension Arm Assembly Long Right (Qty 1)
- 235.1 Caster Bearing (Qty 4)
- 235.2 5/8 Round Insert - Deck (Qty 1)
- 235.3 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
-
151#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
151.1#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
151.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
151.3#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
151.4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
151.5#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
151.6#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
151.7#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
151.8#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
183#067-0020-01
ZT/Mav EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
183.1#051-2020-01
1/4 Vinyl 46" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
183.2#051-2025-02
3/16 Vinyl 55" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
183.3#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
183.4#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
183.5#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
197#079-3470-21
2021 Maverick Floorboard Assembly
Qty Used: 1Regular price $129.99 USDRegular priceUnit price per
-
197.1#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 12Regular price $2.91 USDRegular priceUnit price per
-
197.2#079-3470-18
Maverick Floor Panel--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
197.3#081-4001-00
2021 Maverick Floor Mat W/ Reaper Tread
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
233#250-1751-21
2021 ZT Suspension Arm Assembly Short Right
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
233.1234.1235.1#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
233.2234.2235.2#014-3010-00
5/8 Round Insert - Deck
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
233.3234.3235.3#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
234#250-1801-21
2021 ZT Suspension Arm Assembly Left
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
235#250-1851-21
2021 ZT Suspension Arm Assembly Long Right
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
