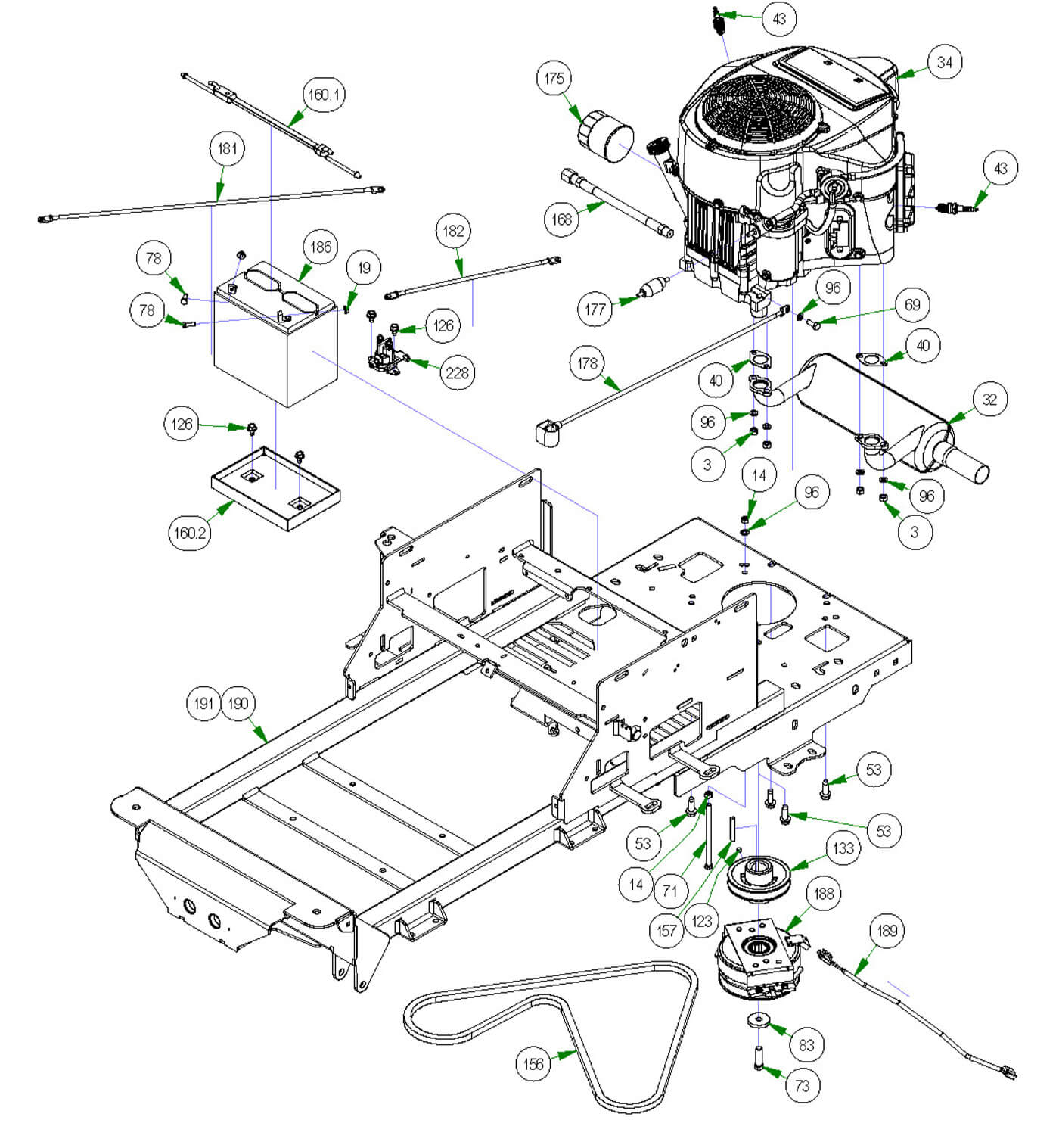

Engine - Kawasaki
Parts Index
- 3 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 14 5/16-18 Hex Nuts Zinc (Qty 2)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 32 2017 Kawasaki Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 34 FR730V-S16 Kawasaki Engine (Qty 1)
- 40 Exhaust Gasket for 27 - Single Gasket (Qty 2)
- 43 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 53 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 69 M8 x 1.25 x 20MM Hex Head Bolt (Qty 1)
- 71 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 73 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 78 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 83 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 96 5/16 Lock washer Zinc (Qty 6)
- 123 5/16-24 x 1/4 Set Screw (Qty 1)
- 126 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 133 4 3/4 Motor Pulley (Qty 1)
- 156 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 157 1/4 X 2 Square Key Stock (Qty 1)
- 160.1 2023 Rubber Battery Hold Down Strap (Qty 1)
- 160.2 2023 Battery Tray Only (Qty 1)
- 168 Kawasaki Oil Drain (Qty 1)
- 175 22-26 Kaw Oil Filter FR Engine (Qty 1)
- 177 Universal Inline Fuel Filter (Qty 1)
- 178 24 inch Black Cable - MZ/ZT (Qty 1)
- 181 24 Red Battery Cable (Qty 1)
- 182 14" Red Battery Cable (Qty 1)
- 186 Battery - All models except Renegade and Revolt (Qty 1)
- 188 Clutch For 1-1/8" Shaft (Qty 1)
- 189 Clutch Pigtail (Qty 1)
- 228 Solenoid (752-1251-210HP) (Qty 1)
-
3#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
14#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
32#015-0052-00
2017 Kawasaki Exhaust MZ/ZT/Mav/Comp
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
34#015-0090-00
FR730V-S16 Kawasaki Engine
Qty Used: 1Regular price $2,299.99 USDRegular priceUnit price per
-
40#015-2709-00
Exhaust Gasket for 27 - Single Gasket
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
-
43#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
53#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
69#018-5321-00
M8 x 1.25 x 20MM Hex Head Bolt
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
71#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
73#018-5450-21
7/16-20 x 1.5\" Hex bolt GR 8 w/ Patch
Qty Used: 1Regular price $1.25 USDRegular priceUnit price per
-
78#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
83#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
96#019-8051-00
5/16 Lock washer Zinc
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
123#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
126#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
133#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
156#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
157#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
160.1#043-8930-00
2023 Rubber Battery Hold Down Strap
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
160.2#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
168#051-5404-00
Kawasaki Oil Drain
Qty Used: 1Regular price $26.27 USDRegular priceUnit price per
-
175#063-2096-00
22-26 Kaw Oil Filter FR Engine
Qty Used: 1Regular price $16.99 USDRegular priceUnit price per
-
177#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
178#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
181#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
182#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
186#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
189#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
228#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
