Engine - Briggs

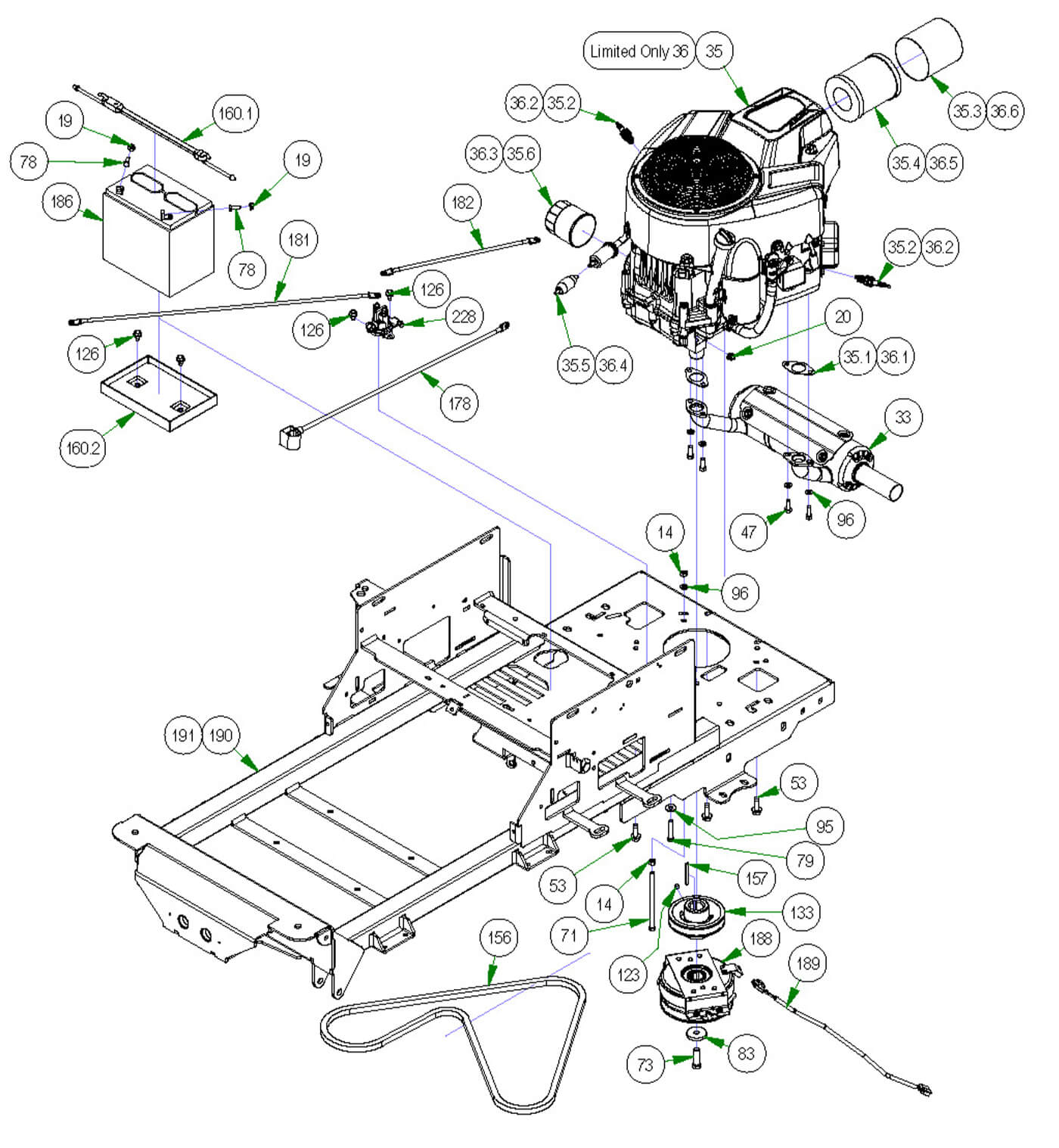

Parts Index
- 14 5/16-18 Hex Nuts Zinc (Qty 2)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 20 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 33 810cc Vanguard Exhaust (Qty 1)
- 35 Vanguard 25hp CXI with out Oil Filter (Qty 1)
- 35.1 Exhaust Gasket for 015-0077-00 (Qty 2)
- 35.2 Spark Plug-Kohler/Briggs (Qty 2)
- 35.3 Pre-Cleaner for Vanguard CXI Engine (Qty 1)
- 35.4 OBSOLETE USE 063-3003-00 (Qty 1)
- 35.5 Universal Inline Fuel Filter (Qty 1)
- 35.6 Briggs Oil Filter (Qty 1)
- 36 Vangaurd 27hp CXI with Out Oil Filter (Qty 1)
- 36.1 Exhaust Gasket for 015-0077-00 (Qty 2)
- 36.2 Spark Plug-Kohler/Briggs (Qty 2)
- 36.3 Briggs Oil Filter (Qty 1)
- 36.4 Universal Inline Fuel Filter (Qty 1)
- 36.5 OBSOLETE USE 063-3003-00 (Qty 1)
- 36.6 Pre-Cleaner for Vanguard CXI Engine (Qty 1)
- 47 Torx Bolt-Exhaust-23hp Vanguard (Qty 4)
- 53 3/8 x 1 1/8 Engine Mounting Bolt (Qty 3)
- 71 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 73 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 78 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 79 5/16-18x1-3/4 GR 5 Hex Bolts (Qty 1)
- 83 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 95 5/16 USS Flat Washer Zinc (Qty 1)
- 96 5/16 Lock washer Zinc (Qty 5)
- 123 5/16-24 x 1/4 Set Screw (Qty 1)
- 126 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 133 4 3/4 Motor Pulley (Qty 1)
- 156 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 157 1/4 X 2 Square Key Stock (Qty 1)
- 160 2023 Battery Hold Down Assembly (Qty 1)
- 160.1 2023 Rubber Battery Hold Down Strap (Qty 1)
- 160.2 2023 Battery Tray Only (Qty 1)
- 178 24 inch Black Cable - MZ/ZT (Qty 1)
- 181 24 Red Battery Cable (Qty 1)
- 182 14" Red Battery Cable (Qty 1)
- 186 Battery - All models except Renegade and Revolt (Qty 1)
- 188 Clutch For 1-1/8" Shaft (Qty 1)
- 189 Clutch Pigtail (Qty 1)
- 228 Solenoid (752-1251-210HP) (Qty 1)
-
14#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
20#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
33#015-0057-00
2017 Compact Outlaw Exhaust 810 Vanguard
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
35.136.1#015-0077-01
Exhaust Gasket for 015-0077-00
Qty Used: 2Regular price $6.62 USDRegular priceUnit price per
-
35.236.2#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
35.336.6#063-1000-00
Pre-Cleaner for Vanguard CXI Engine
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
35.436.5#063-1005-00
OBSOLETE USE 063-3003-00
Qty Used: 1Regular price $30.45 USDRegular priceUnit price per
-
35.536.4#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
35.636.3#063-8018-00
Briggs Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
36#015-0511-00
Vangaurd 27hp CXI with Out Oil Filter
Qty Used: 1Regular price $2,699.99 USDRegular priceUnit price per
-
47#018-0017-00
Torx Bolt-Exhaust-23hp Vanguard
Qty Used: 4Regular price $5.29 USDRegular priceUnit price per
-
53#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
71#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
73#018-5450-21
7/16-20 x 1.5\" Hex bolt GR 8 w/ Patch
Qty Used: 1Regular price $1.25 USDRegular priceUnit price per
-
78#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
79#018-8059-00
5/16-18x1-3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
83#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
95#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
96#019-8051-00
5/16 Lock washer Zinc
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
123#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
126#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
133#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
156#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
157#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
160#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
160.1#043-8930-00
2023 Rubber Battery Hold Down Strap
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
160.2#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
178#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
181#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
182#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
186#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
-
189#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
228#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
