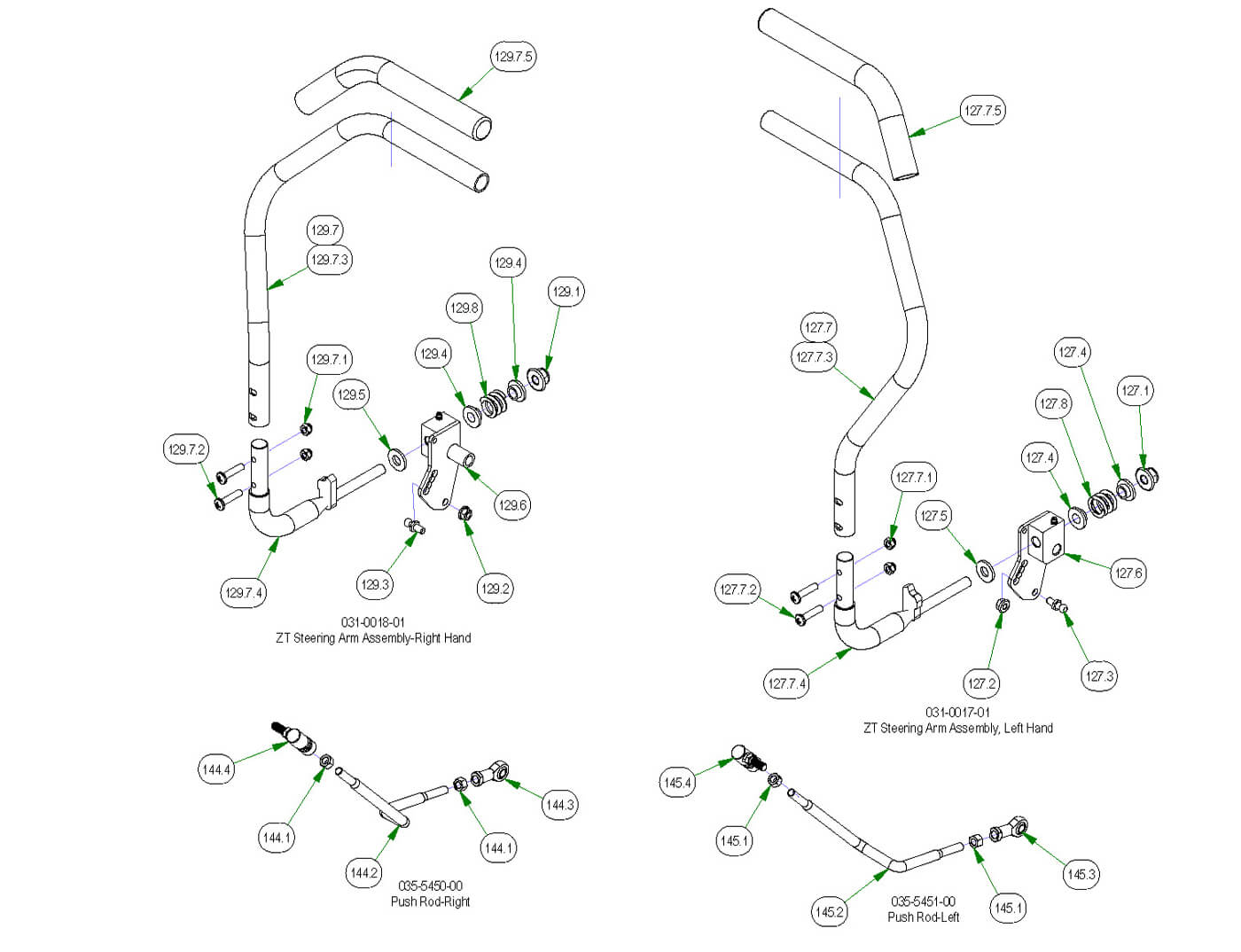

Drive Arm Sub Assemblies
Parts Index
- 127 2017 ZT LH Arm Assembly (Qty 1)
- 127.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 127.2 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 127.3 10mm Damper Ball Stud- (Qty 1)
- 127.4 .515 ID Plastic Shoulder Washer (Qty 2)
- 127.5 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 127.6 Drive Lever Housing LH (Qty 1)
- 127.7 Orange ZT Steering Arm Left- (Qty 1)
- 127.7.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 127.7.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 127.7.3 Steering Arm Left - 5" Tubing (Qty 1)
- 127.7.4 Steering Arm Elbow- Left (Qty 1)
- 127.7.5 Black Steering Grip (Qty 1)
- 127.8 Drive Lever Housing Spring (Qty 1)
- 129 2017 ZT RH Arm Assembly (Qty 1)
- 129.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 129.2 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 129.3 10mm Damper Ball Stud- (Qty 1)
- 129.4 .515 ID Plastic Shoulder Washer (Qty 2)
- 129.5 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 129.6 Drive Lever Housing RH (Qty 1)
- 129.7 Orange ZT Steering Arm-Right (Qty 1)
- 129.7.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 129.7.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 129.7.3 Steering Arm Right - 5" Tubing (Qty 1)
- 129.7.4 Steering Arm Elbow - Right (Qty 1)
- 129.7.5 Black Steering Grip (Qty 1)
- 129.8 Drive Lever Housing Spring (Qty 1)
- 144.1 3/8-24 Hex Nut Zinc (Qty 2)
- 144.3 Spherical Rod End (Qty 1)
- 144.4 Quick Release Ball Joint (Qty 1)
- 144 Push Rod RH (Assembly) (Qty 1)
- 145.1 3/8-24 Hex Nut Zinc (Qty 2)
- 145.3 Spherical Rod End (Qty 1)
- 145.4 Quick Release Ball Joint (Qty 1)
-
127#031-0017-01
2017 ZT LH Arm Assembly
Qty Used: 1Regular price $145.99 USDRegular priceUnit price per
-
127.1129.1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
127.2129.2#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
127.3129.3#018-2050-00
10mm Damper Ball Stud-
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
127.4129.4#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
127.5129.5#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
127.6#031-0017-98
Drive Lever Housing LH
Qty Used: 1Regular price $29.19 USDRegular priceUnit price per
-
127.7#031-8850-70
Black ZT Steering Arm Left-
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
127.7.1129.7.1#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
127.7.2129.7.2#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
127.7.3#031-8850-02
Steering Arm Left - 5" Tubing
Qty Used: 1Regular price $79.55 USDRegular priceUnit price per
-
127.7.4#031-9020-70
Steering Arm Elbow- Left
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
127.7.5129.7.5#069-4010-00
Black Steering Grip
Qty Used: 1Regular price $7.38 USDRegular priceUnit price per
-
127.8129.8#034-8025-00
Drive Lever Housing Spring
Qty Used: 1Regular price $3.70 USDRegular priceUnit price per
-
129#031-0018-01
2017 ZT RH Arm Assembly
Qty Used: 1Regular price $145.99 USDRegular priceUnit price per
-
129.6#031-0018-98
Drive Lever Housing RH
Qty Used: 1Regular price $21.89 USDRegular priceUnit price per
-
129.7#031-8851-70
Black ZT Steering Arm-Right
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
129.7.3#031-8851-02
Steering Arm Right - 5" Tubing
Qty Used: 1Regular price $79.55 USDRegular priceUnit price per
-
129.7.4#031-9025-70
Steering Arm Elbow - Right
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
144.1145.1#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
144.3145.3#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
144.4145.4#099-2009-00
Quick Release Ball Joint
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
144#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
