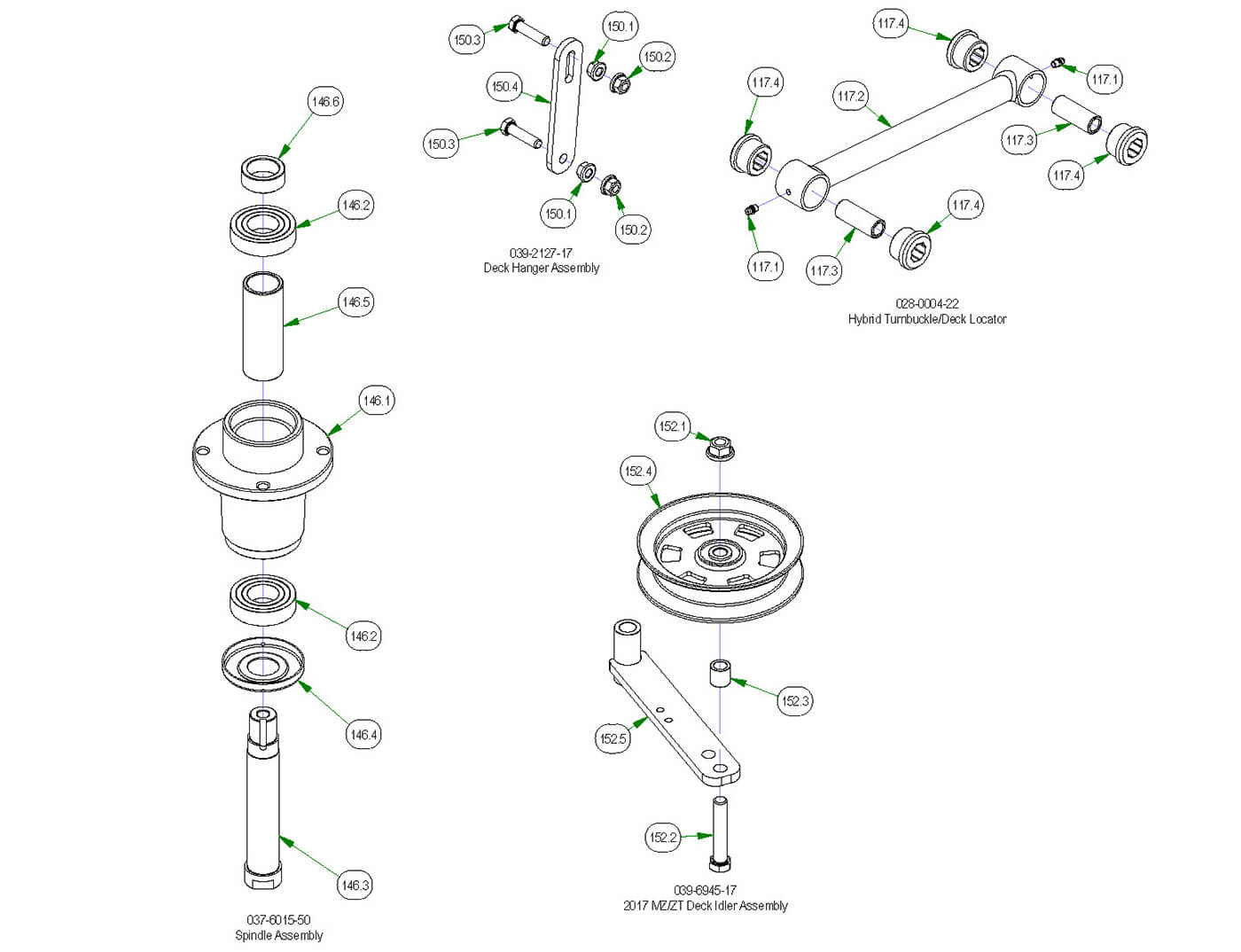

Deck Sub Assemblies
Parts Index
- 117 Hybrid Turnbuckle (Qty 2)
- 117.1 1/4-28 Threaded Grease Fitting (Qty 2)
- 117.3 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 117.4 2018 Maverick Topllink Bushing (Qty 4)
- 146 Spindle-Aluminum (Qty 3)
- 146.1 Aluminum Spindle Housing-2010 (Qty 1)
- 146.2 OBSOLETE USE 037-6029-00 (Qty 2)
- 146.3 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 146.4 Dust Cover for 037-8000-00 - (Qty 1)
- 146.5 Tube Spacer for Spindle Shaft (Qty 1)
- 146.6 Collar Spacer - Top of Spindle (Qty 1)
- 150 MZ/ZT Deck Hanger Assembly (Qty 4)
- 150.1 3/8-16 Hex Flange Nuts Zinc w/ (Qty 2)
- 150.2 3/8 Nylock Flange Nut (Qty 2)
- 150.3 3/8 x 1 1/2 Bolt (Qty 2)
- 150.4 Deck hanger for 039-2127-17 (Qty 1)
- 152 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 152.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 152.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 152.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 152.4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 152.5 Idler Bracket (Qty 1)
-
117#028-0004-22
Hybrid Turnbuckle/Deck Locator
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
117.1#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-
117.3#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
117.4#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
-
146#037-6015-50
Spindle-Aluminum
Qty Used: 3Regular price $199.99 USDRegular priceUnit price per
-
146.1#037-6017-50
Aluminum Spindle Housing-2010
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
146.2#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
146.3#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
146.4#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 1Regular price $10.99 USDRegular priceUnit price per
-
146.5#037-8050-00
Tube Spacer for Spindle Shaft
Qty Used: 1Regular price $7.90 USDRegular priceUnit price per
-
146.6#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
150#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
150.1#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
150.2#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
150.3#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
150.4#039-2127-00
OBSOLETE USE 039-2127-17
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-

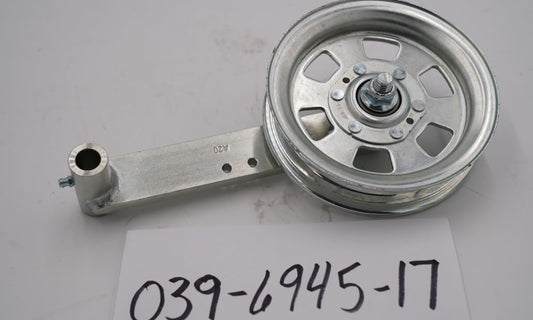

152#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
152.1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
152.2#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
152.3#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
152.4#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
152.5#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
