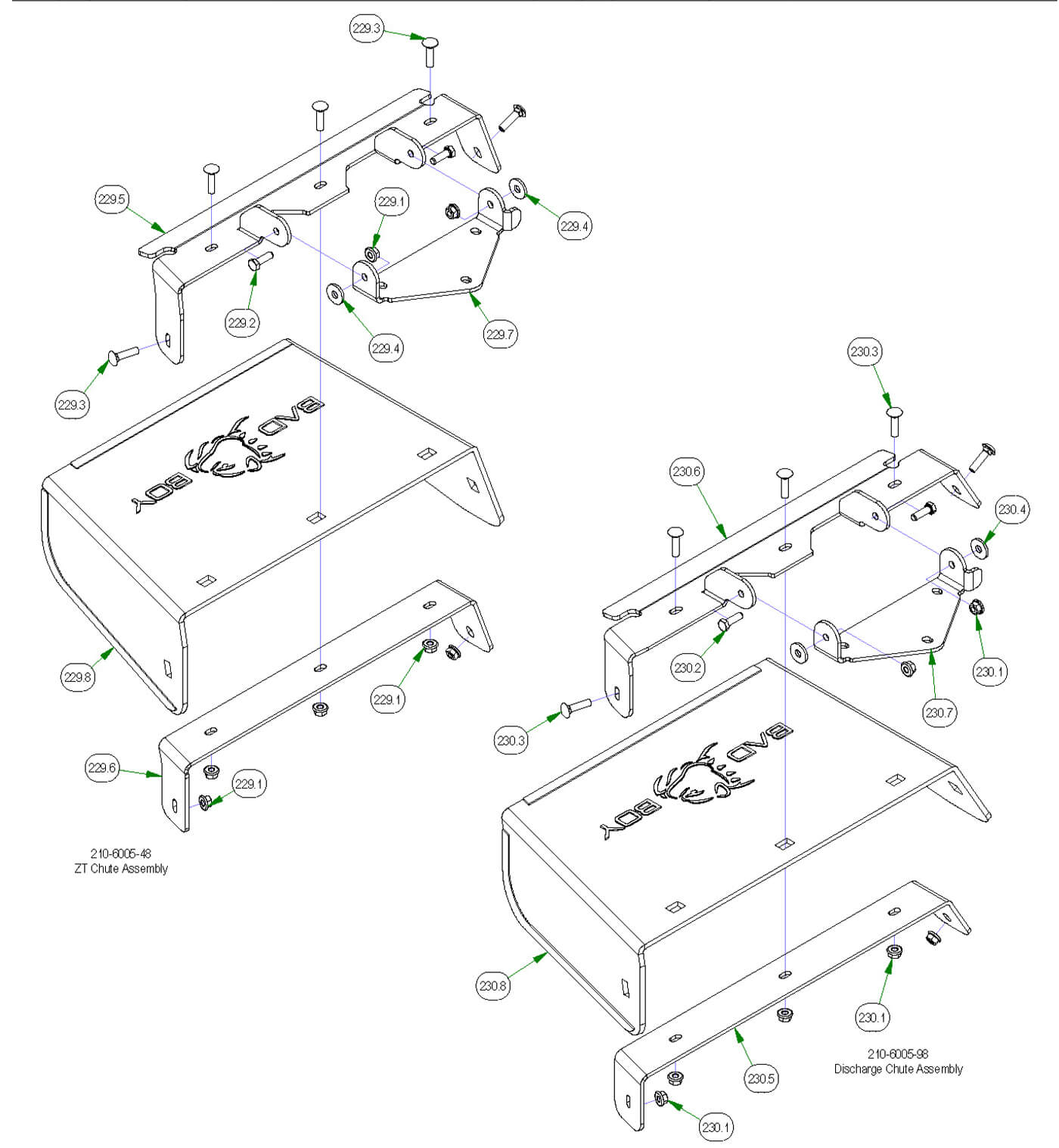

Chute Assemblies
Parts Index
- 229 2013 48" ZT/Chute Assembly (Qty 1)
- 229.1 5/16-18 Nylon Flange Nut (Qty 7)
- 229.2 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 229.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 229.4 .360 ID Plastic Washer (Qty 2)
- 229.5 48/52 Discharge Top Bracket (Qty 1)
- 229.6 48/52 Discharge Lower Bracket (Qty 1)
- 229.7 Discharge Chute Hanger-Deck (Qty 1)
- 229.8 Discharge Chute (Rubber Component) (Qty 1)
- 230 2017 54"/60" ZT/Mav Chute Assembly (Qty 1)
- 230.1 5/16-18 Nylon Flange Nut (Qty 7)
- 230.2 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 230.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 230.4 .360 ID Plastic Washer (Qty 2)
- 230.5 60 Discharge Lower Bracket (Qty 1)
- 230.6 60 Discharge Chute Upper (Qty 1)
- 230.7 Discharge Chute Hanger-Deck (Qty 1)
- 230.8 Discharge Chute (Rubber Component) (Qty 1)
-
229#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
229.1230.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
229.2230.2#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
229.3230.3#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
229.4230.4#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
229.5#039-4870-00
48/52 Discharge Top Bracket
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
229.6#039-4871-00
48/52 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
229.7230.7#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
229.8230.8#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
230#210-6005-98
2017 54"/60" ZT/Mav Chute Assembly
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
230.5#039-4863-00
60 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
230.6#039-4864-00
60 Discharge Chute Upper
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
