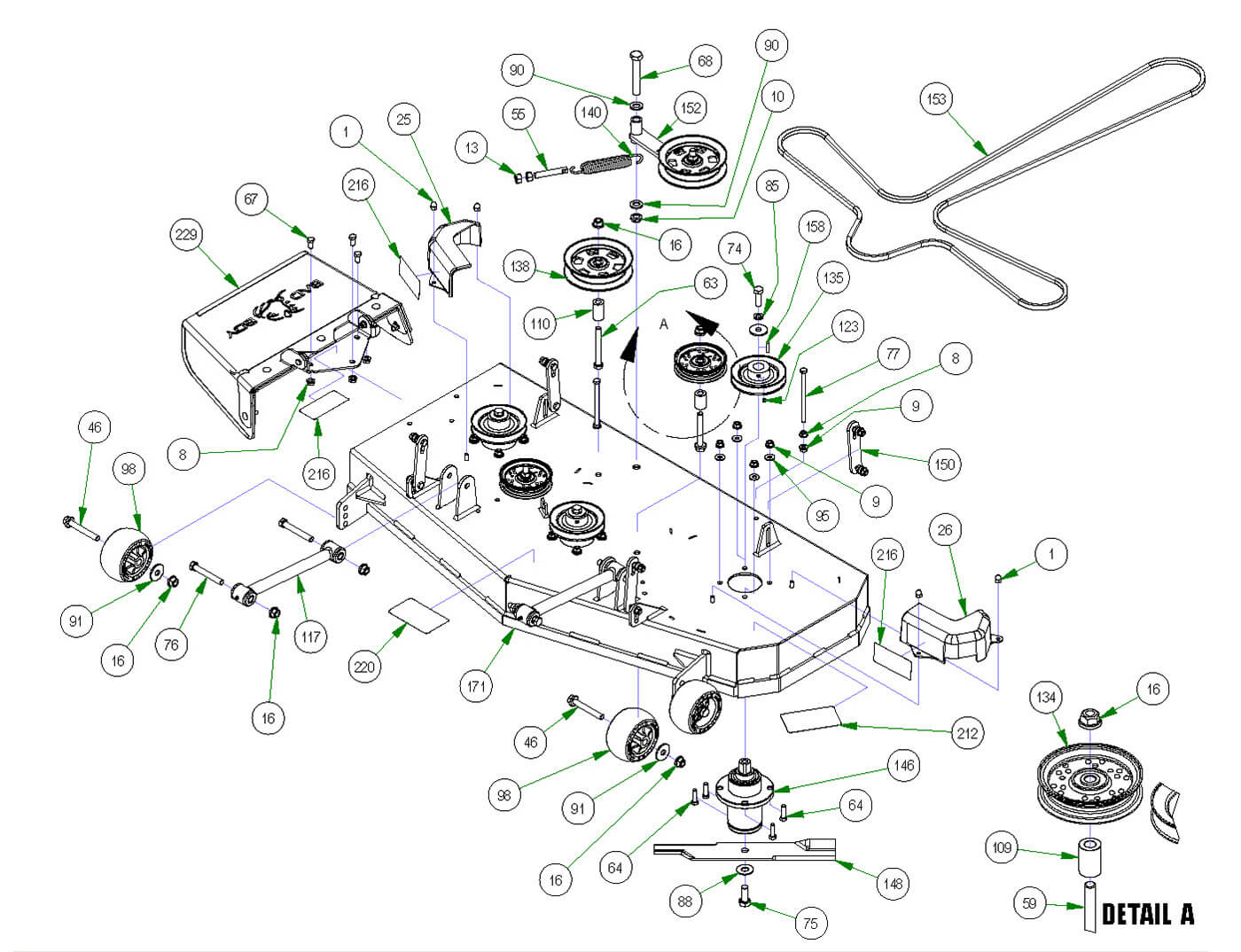

48" Deck
Parts Index
- 1 Acorn Nut-Pulley Cover (Qty 4)
- 8 3/8-16 Hex Flange Nuts Zinc w/ (Qty 5)
- 9 3/8 Nylock Flange Nut (Qty 14)
- 10 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 13 1/2-13 Hex Nuts Zinc (Qty 2)
- 16 1/2-13 Nylon Insert Flange Nut (Qty 11)
- 25 Pulley Cover RH 42"/48" (Qty 1)
- 26 Pulley Cover LH 42"/48" (Qty 1)
- 46 Deck Wheel Bolt (Qty 4)
- 55 All Thread (Qty 1)
- 59 1/2 x 3 1/2 Flange Bolt - Gr 8 (Qty 2)
- 63 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 1)
- 64 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 12)
- 67 3/8-16 X 3/4 GR 5 Hex Bolts (Qty 3)
- 68 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 74 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 75 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 3)
- 76 1/2-13 X 3-1/2 GR 5 Hex Bolts (Qty 4)
- 77 3/8-16 x 5 1/2 Hex Bolt - Grade 5 (Qty 2)
- 85 1/2 Lockwasher Zinc (Qty 3)
- 88 5/8 Flat Washer (Qty 3)
- 90 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 91 1/2 Belleville Washer #K2000-G (Qty 7)
- 95 5/16 USS Flat Washer Zinc (Qty 12)
- 98 Deck Wheel (Qty 4)
- 109 .502 ID X 1.000 0D X 1.500 (Qty 2)
- 110 .502 ID X 1.00 OD X 1.750 (Qty 1)
- 117 Hybrid Turnbuckle (Qty 2)
- 123 5/16-24 x 1/4 Set Screw (Qty 3)
- 134 4 3/4 Idler Pulley - ABFI-76 (Qty 2)
- 135 5" Spindle Deck Pulley - DB-80 (Qty 3)
- 138 5 3/4 Idler Pulley-Capitol (Qty 1)
- 140 2015 Deck Idler Spring (Qty 1)
- 146 Spindle-Aluminum (Qty 3)
- 148 48" ZT/Mav/Compact Outlaw Blade (Qty 3)
- 150 MZ/ZT Deck Hanger Assembly (Qty 4)
- 152 2017 MZ/ZT Deck Idler Assembly (Qty 1)
- 153 48" MZ/ZT/Mav/Compact Outlaw Deck Belt (Qty 1)
- 158 1/4 x 1 Square Key (Qty 3)
- 171 2023 48" ZT/Maverick/HD Deck--Orange (Qty 1)
- 212 2018 48" Deck Decal (Qty 1)
- 216 Danger Decal-Spindle/Discharge (Qty 3)
- 220 Deck Belt Route Decal (Qty 1)
- 229 2013 48" ZT/Chute Assembly (Qty 1)
-
1#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
8#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 5Regular price $1.49 USDRegular priceUnit price per
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 14Regular price $1.49 USDRegular priceUnit price per
-
10#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
13#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
16#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 11Regular price $1.39 USDRegular priceUnit price per
-
25#014-4025-00
Pulley Cover RH
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
26#014-4026-00
Pulley Cover LH 42\"/48\"
Qty Used: 1Regular price $16.69 USDRegular priceUnit price per
-
46#018-0010-00
Deck Wheel Bolt - 2011 Outlaw
Qty Used: 4Regular price $5.89 USDRegular priceUnit price per
-
55#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
59#018-2018-00
1/2 x 3 1/2 Flange Bolt - Gr 8
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
63#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
64#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
67#018-5250-00
3/8-16 X 3/4 GR 5 Hex Bolts
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
68#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
74#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
75#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 3Regular price $2.49 USDRegular priceUnit price per
-
76#018-6054-00
1/2-13 X 3-1/2 GR 5 Hex Bolts
Qty Used: 4Regular price $1.99 USDRegular priceUnit price per
-
77#018-7060-00
3/8-16 x 5 1/2 Hex Bolt - Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
85#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
88#019-5038-00
5/8 Flat Washer
Qty Used: 3Regular price $1.49 USDRegular priceUnit price per
-
90#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
91#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 7Regular price $4.69 USDRegular priceUnit price per
-
95#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 12Regular price $0.79 USDRegular priceUnit price per
-
98#022-1000-00
Deck Wheel
Qty Used: 4Regular price $15.99 USDRegular priceUnit price per
-
109#025-5338-00
.502 ID X 1.000 0D X 1.500
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
110#025-5339-00
.502 ID X 1.00 OD X 1.750
Qty Used: 1Regular price $4.87 USDRegular priceUnit price per
-
117#028-0004-22
Hybrid Turnbuckle/Deck Locator
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
123#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 3Regular price $1.59 USDRegular priceUnit price per
-
134#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 2Regular price $29.18 USDRegular priceUnit price per
-
135#033-6003-00
5" Spindle Deck Pulley - DB-80
Qty Used: 3Regular price $39.79 USDRegular priceUnit price per
-
138#033-7201-25
5 3/4 Idler Pulley-Capitol
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
140#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
146#037-6015-50
Spindle-Aluminum
Qty Used: 3Regular price $199.99 USDRegular priceUnit price per
-
148#038-5350-00
48" ZT/Mav/Compact Outlaw Blade with Fusion
Qty Used: 3Regular price $21.16 USDRegular priceUnit price per
-
150#039-2127-17
MZ/ZT Deck Hanger Assembly
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
152#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
153#041-1470-00
48" MZ/ZT/Mav/Compact Outlaw Deck Belt
Qty Used: 1Regular price $81.67 USDRegular priceUnit price per
-
158#042-6030-00
1/4 x 1 Square Key
Qty Used: 3Regular price $4.37 USDRegular priceUnit price per
-
171#060-2312-00
2023 48" ZT/Maverick/HD Deck--Orange
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
212#091-0903-18
2018 48" Deck Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
216#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 3Regular price $2.91 USDRegular priceUnit price per
-
220#091-3309-00
Deck Belt Route Decal
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
229#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
