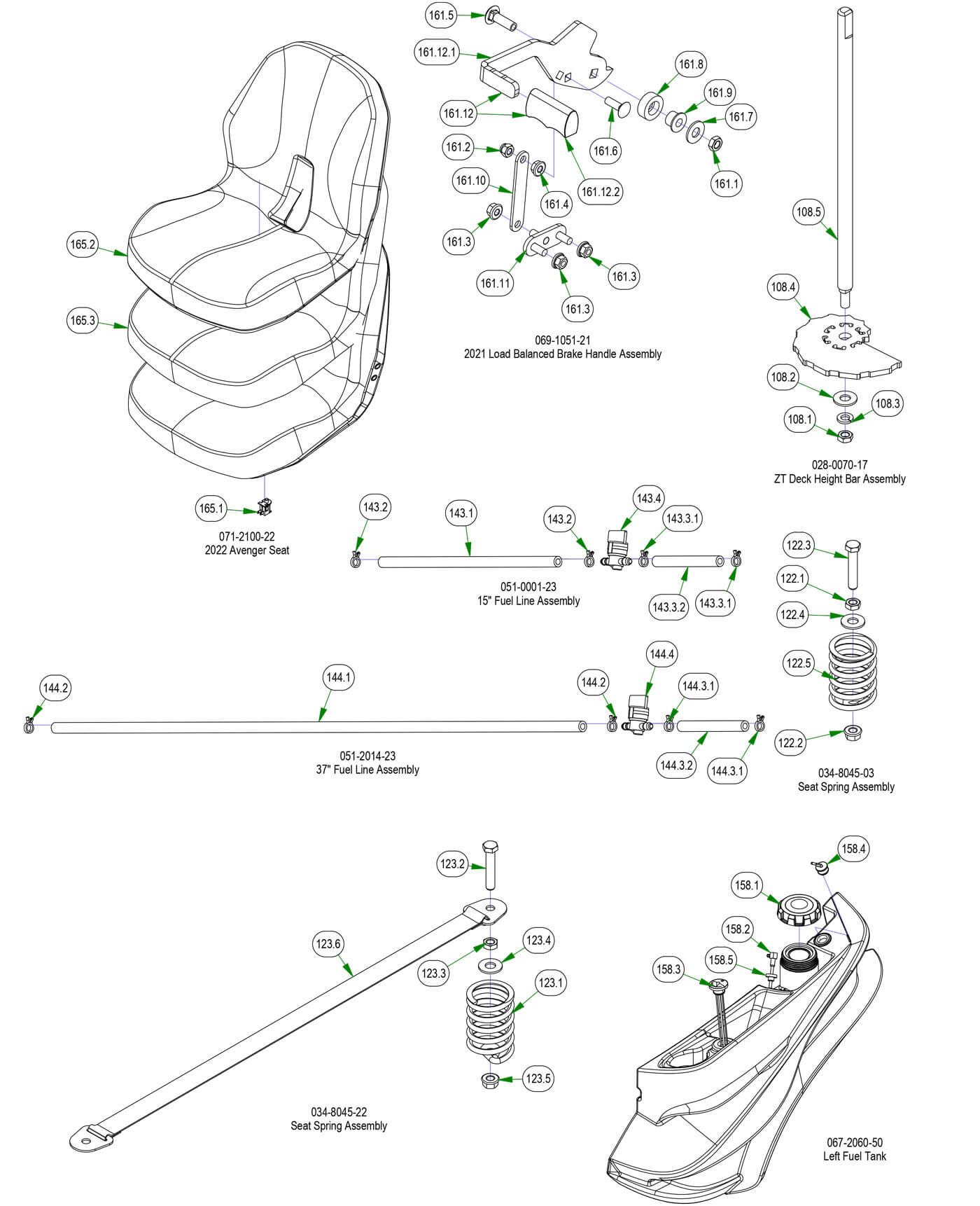

Seat, Fuel Line, Brake Handle etc.
Parts Index
- 108 2017 ZT Deck Height Bar Assy. (Qty 1)
- 108.1 3/8-24 Hex Nut Zinc (Qty 1)
- 108.2 3/8 USS Flat Washer Zinc (Qty 1)
- 108.3 3/8 Lockwasher Zinc (Qty 1)
- 108.4 Deck Height Cam Plate (Qty 1)
- 108.5 2017 Deck Height Dial Rod ZT (Qty 1)
- 122 2017 MZ/ZT Seat Spring Assembly (Qty 1)
- 122.1 3/8-16 Half Jam Nut (Qty 1)
- 122.2 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 122.3 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 122.4 3/8 USS Flat Washer Zinc (Qty 1)
- 122.5 Seat Spring (Qty 1)
- 123 2022 Mav/HD Seat Spring Assembly with Strap (Qty 1)
- 123.1 Seat Spring (Qty 1)
- 123.2 3/8-16 X 2 GR 5 Hex Bolts Zinc (Qty 1)
- 123.3 3/8-16 Half Jam Nut (Qty 1)
- 123.4 3/8 USS Flat Washer Zinc (Qty 1)
- 123.5 3/8-16 Hex Flange Nuts Zinc w/ (Qty 1)
- 123.6 Seat Strap with Buckles (Qty 1)
- 143.1 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 143.2 1/4 Fuel Line Clamp (Qty 2)
- 143.3 1/4 Fuel Line Clamp (Qty 1)
- 143.3.1 1/4 Fuel Line Clamp (Qty 2)
- 143.3.2 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 143.4 2 Way Fuel Shut-Off Valve (Qty 1)
- 144.1 33" 1/4 Fuel Line No Clamp (Qty 1)
- 144.2 1/4 Fuel Line Clamp (Qty 2)
- 144.3.1 1/4 Fuel Line Clamp (Qty 2)
- 144.3.2 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 144.4 2 Way Fuel Shut-Off Valve (Qty 1)
- 158 2016 Maverick/ZT/Avenger Left Fuel Tank (Qty 1)
- 158.1 3.5" Tethered Fuel Cap (Qty 1)
- 158.2 Fuel Line Pickup Tube for ZT (Qty 1)
- 158.3 Fuel Gauge w/ Grommet (Qty 1)
- 158.4 Rollover Valve and Grommet New (Qty 1)
- 158.5 Grommet for ZT Elite Fuel Line (Qty 1)
- 161 Brake Handle Assembly For HD Down (Qty 1)
- 161.1 3/8-16 Centerlock Half Nut (Qty 1)
- 161.2 5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap) (Qty 1)
- 161.3 5/16-18 Nylon Flange Nut (Qty 3)
- 161.4 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 161.5 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 161.6 5/16-18 X 1 Carriage Bolt Zinc (Qty 1)
- 161.7 3/8 USS Flat Washer Zinc (Qty 1)
- 161.8 Brake Lever Spacer (Qty 1)
- 161.9 Bronze Bushing SF-1220-8 (Qty 1)
- 161.10 Brake Cable Extension Plate (Qty 1)
- 161.11 Brake Load Balancer Weldment (Qty 1)
- 161.12 Load Balanced Brake Handle With Grip (Qty 1)
- 161.12.2 Brake Handle Rubber (Qty 1)
- 165 OBSOLETE USE 071-5065-07 (Qty 1)
- 165.1 OBSOLETE USE 071-5065-07 (Qty 1)
- 165.2 Bad Boy SK130 Avenger Cover for 071-2100-22 (Qty 1)
-
108#028-0070-17
2017 ZT Deck Height Bar Assy.
Qty Used: 1Regular price $27.72 USDRegular priceUnit price per
-
108.1#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
108.2122.4123.4161.7#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
108.3#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
108.4#026-1100-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
108.5#028-0014-00
2017 Deck Height Dial Rod ZT
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
122#034-8045-03
2017 MZ/ZT Seat Spring Assembly
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
122.1123.3#013-0017-00
3/8-16 Half Jam Nut
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
122.2123.5#013-5201-00
3/8-16 Hex Flange Nuts Zinc w/
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
122.3123.2#018-3000-00
3/8-16 X 2 GR 5 Hex Bolts Zinc
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
122.5123.1#034-8045-00
Seat Spring
Qty Used: 1Regular price $19.15 USDRegular priceUnit price per
-
123#034-8045-22
2022 Mav/HD seat spring assembly with strap
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
123.6#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
143.1143.3.2144.3.2#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
143.2143.3143.3.1144.2144.3.1#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
143.4144.4#067-6057-00
2 Way Fuel Shut-Off Valve
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
144.1#051-2014-01
33" 1/4 Fuel Line No Clamp
Qty Used: 1Regular price $17.99 USDRegular priceUnit price per
-
158#067-2060-50
2016 Maverick/ZT/Avenger Left Fuel Tank
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
158.1#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-
158.2#067-0011-00
Fuel Line Pickup Tube for ZT
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
158.3#067-4090-00
Fuel Gauge w/ Grommet
Qty Used: 1Regular price $42.99 USDRegular priceUnit price per
-
158.4#067-6070-00
Rollover Valve and Grommet New
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
158.5#067-6080-00
Grommet for ZT Elite Fuel Line
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
161#069-1051-21
Load Balanced Brake Handle Assembly
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
161.1#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
161.2#013-8042-00
5/16-18 Nylon Insert Cap Locknut Zinc (Black Cap)
Qty Used: 1Regular price $0.89 USDRegular priceUnit price per
-
161.3#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
161.4#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
161.5#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
161.6#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
161.8#025-0001-00
Brake Lever Spacer
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
-
161.9#032-5053-00
Bronze Bushing SF-1220-8
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
161.10#039-0170-00
Brake Cable Extension Plate
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
161.11#039-0171-00
Brake Load Balancer Weldment
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
161.12#069-1051-00
Load Balanced Brake Handle With Grip
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
161.12.2#069-3010-00
Brake Handle Rubber
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
165165.1#071-1004-00
OBSOLETE USE 071-5065-07
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
165.2#071-2108-00
Bad Boy SK130 Avenger Cover for 071-2100-22
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
