Pillow Block, Wiring Harness, EPA Cannister etc.

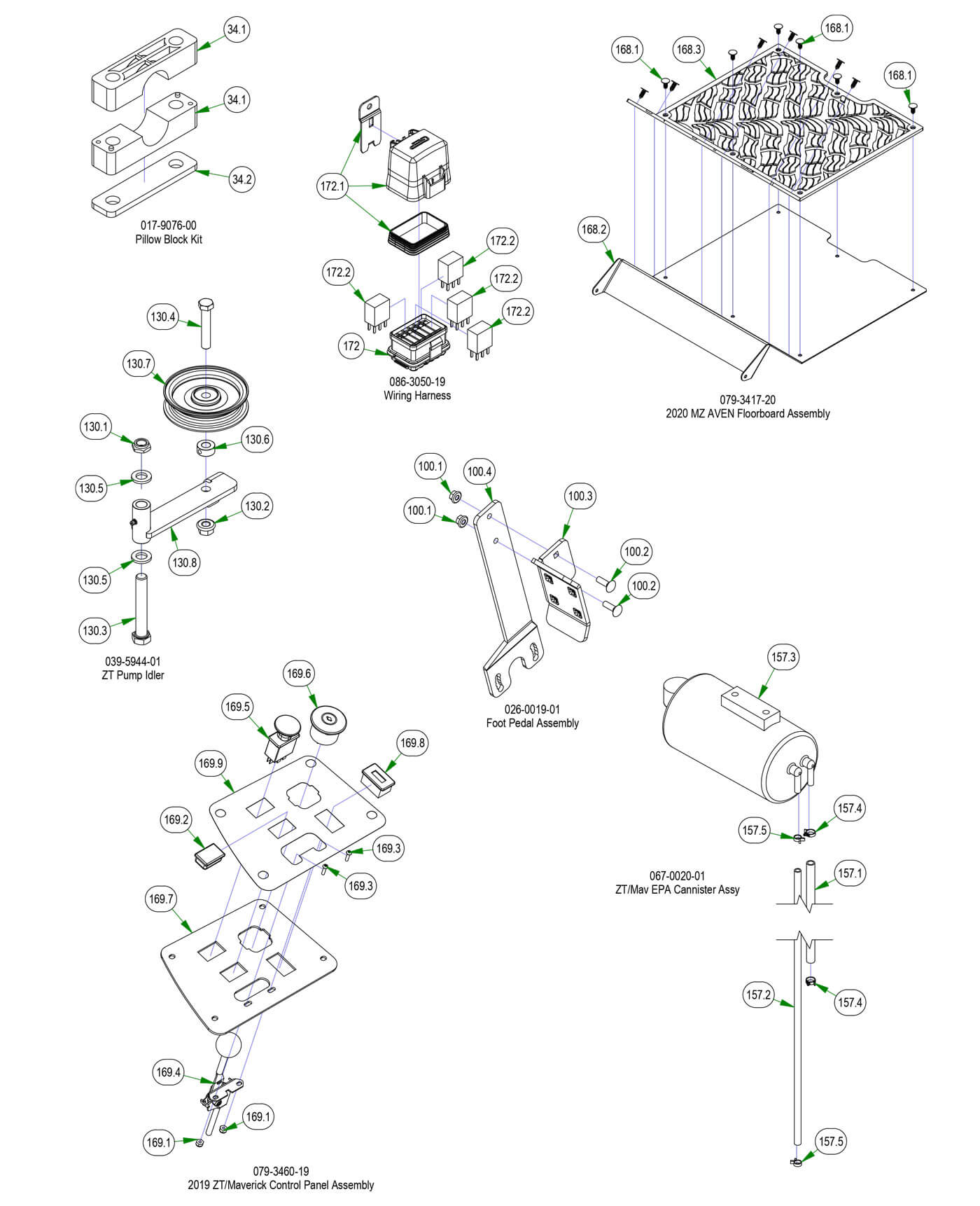

Parts Index
- 34 Pillow Block (Qty 4)
- 34.1 2017 Magnum Pillow Block-Male (Qty 2)
- 34.2 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 100 2017 MZ Foot Pedal Assembly (Qty 1)
- 100.1 5/16-18 Nylon Flange Nut (Qty 2)
- 100.2 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 100.3 Foot Pedal--Orange (Qty 1)
- 100.4 2017 MZ/ZT Deck Pedal Lever--Orange (Qty 1)
- 130 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 130.1 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 130.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 130.3 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 130.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 130.5 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 130.6 1/2 Set Collar w/set collar (Qty 1)
- 130.7 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 130.8 Idler Bracket (Qty 1)
- 157 ZT/Mav EPA Cannister Assy (Qty 1)
- 157.1 1/4 Vinyl 46" EPA Line (Qty 1)
- 157.2 3/16 Vinyl 55" EPA Line (Qty 1)
- 157.3 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 157.4 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 157.5 3/16" Vinyl Hose Clamp (Qty 2)
- 168.1 Ratchet Fastener - Floorboard (Qty 12)
- 168.2 2017 MZ/ZT Floorboard--Orange (Qty 1)
- 168.3 2021 Maverick Floor Mat W/ Reaper Tread (Qty 1)
- 169.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 169.2 Light Plug (Qty 1)
- 169.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 169.4 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 169.5 PTO Engager-Switch for Blades (Qty 1)
- 169.6 Ignition Switch (Qty 1)
- 169.7 2023 Control Panel--Orange (Qty 1)
- 169.8 Tachometer-N310-0100-1018 (Qty 1)
- 169.9 2023 Control Panel Decal (Qty 1)
- 172 2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness (Qty 1)
- 172.1 2019 Relay Cap Kit (Qty 1)
- 172.2 2019 Relay Terminal (Qty 4)
-
34#017-9076-00
Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
34.1#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-
34.2#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
100#026-0019-01
2017 MZ Foot Pedal Assembly
Qty Used: 1Regular price $87.56 USDRegular priceUnit price per
-
100.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
100.2#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
100.3#026-0019-00
Foot Pedal--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
100.4#031-0500-00
2017 MZ/ZT Deck Pedal Lever--Orange
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-

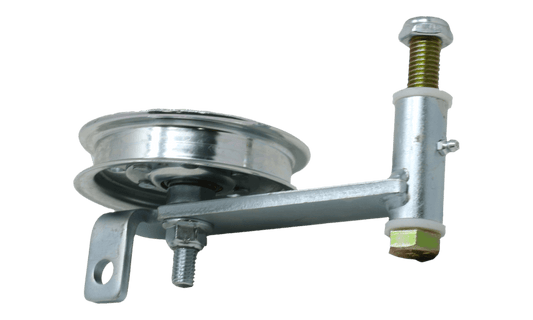

130#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
130.1#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
130.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
130.3#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
130.4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
130.5#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
130.6#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
130.7#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
130.8#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
157#067-0020-01
ZT/Mav EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-

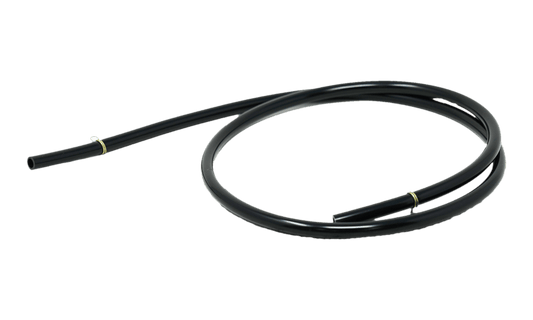

157.1#051-2020-01
1/4 Vinyl 46" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
157.2#051-2025-02
3/16 Vinyl 55" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-

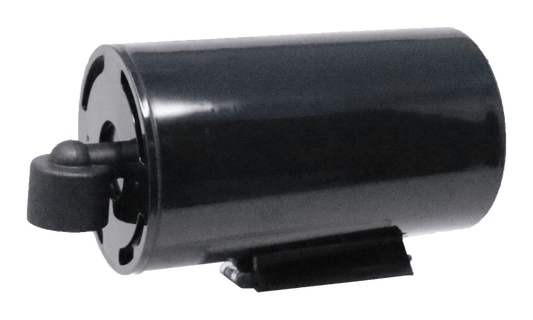

157.3#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
157.4#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-

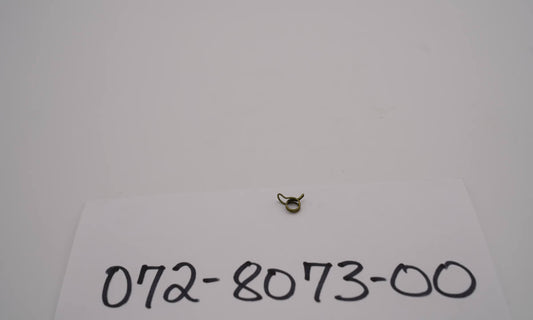

157.5#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-

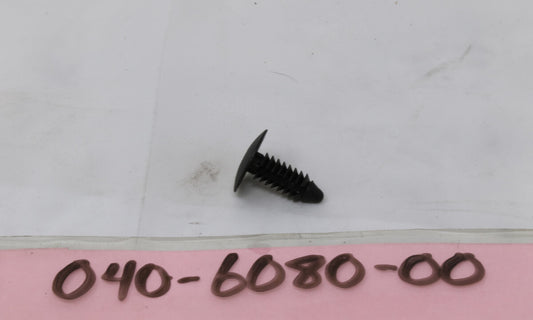

168.1#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 12Regular price $2.91 USDRegular priceUnit price per
-
168.2#079-3417-00
2017 MZ/ZT Floorboard--Orange
Qty Used: 1Regular price $145.95 USDRegular priceUnit price per
-
168.3#081-4001-00
2021 Maverick Floor Mat W/ Reaper Tread
Qty Used: 1Regular price $49.99 USDRegular priceUnit price per
-
169.1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
169.2#018-1040-00
Light Plug
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
169.3#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-

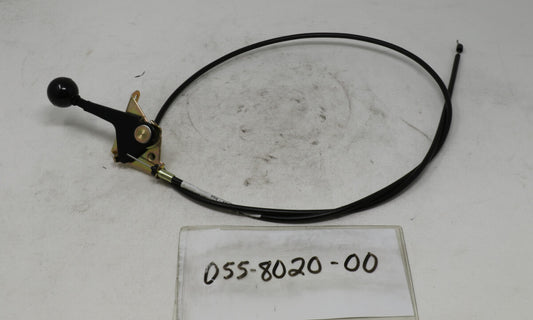

169.4#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
169.5#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
169.6#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
169.7#079-3461-00
2023 Control Panel--Orange
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
169.8#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
169.9#091-4072-00
2023 Control Panel Decal
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
172#086-3050-19
2019 MZ/ZT/Maverick/Compact Outlaw Wiring Harness
Qty Used: 1Regular price $363.44 USDRegular priceUnit price per
-
172.1#086-1202-01
2019 Relay Cap Kit
Qty Used: 1Regular price $17.24 USDRegular priceUnit price per
-
172.2#086-1202-19
2019 Relay Terminal
Qty Used: 4Regular price $23.34 USDRegular priceUnit price per
