Kohler KT740

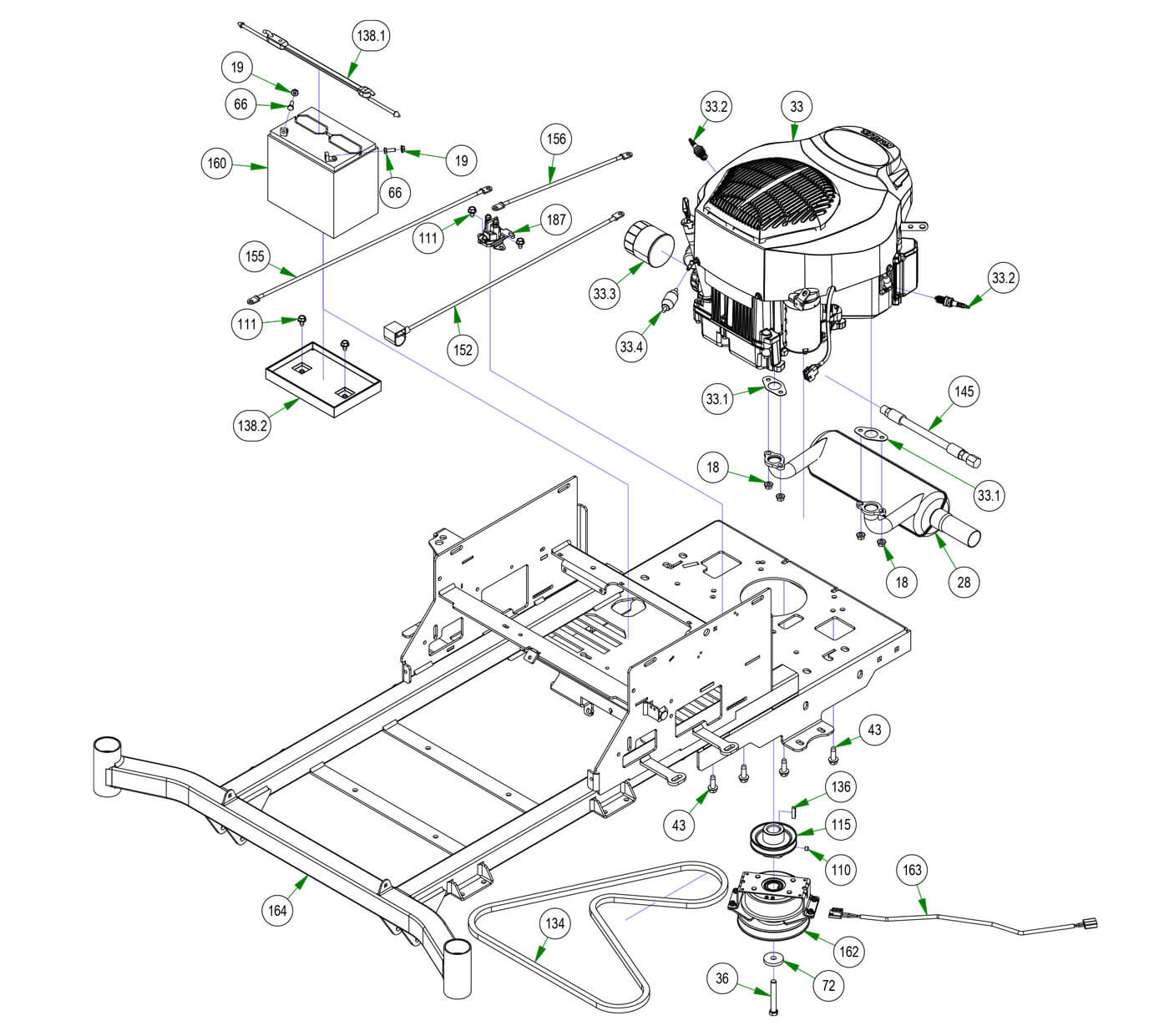

Parts Index
- 18 M8 Nut fits the 015-9990-00/015-9991-00 (Qty 4)
- 19 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 28 2017 Kohler Exhaust MZ, AVEN, ZT, MAV, HD (Qty 1)
- 33 25hp Kohler 2014 MZ-KT740-3048 (Qty 1)
- 33.1 Exhaust Gaskets for 27,30 hp (Qty 2)
- 33.2 Spark Plug-Kohler/Briggs (Qty 2)
- 33.3 25 HP Kohler Oil Filter ZT/MZ (Qty 1)
- 33.4 Universal Inline Fuel Filter (Qty 1)
- 36 7/16-20x3” Hex Bolt GR 8 W/ Patch (Qty 1)
- 43 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 66 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 2)
- 72 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 110 5/16-24 x 1/4 Set Screw (Qty 1)
- 111 5/16-18 x ½” HWH unslot (F) tcs zinc (Qty 4)
- 115 3 3/4 Motor Pulley-2009 MZ (Qty 1)
- 134 Pump Belt for ZT, MZ, Avenger (Qty 1)
- 136 1/4 x 1 Square Key (Qty 1)
- 138 2023 Battery Hold Down Assembly (Qty 1)
- 138.1 2023 Rubber Battery Hold Down Strap (Qty 1)
- 138.2 2023 Battery Tray Only (Qty 1)
- 145 Kohler Oil Drain Hose (Qty 1)
- 152 24 inch Black Cable - MZ/ZT (Qty 1)
- 155 24 Red Battery Cable (Qty 1)
- 156 14" Red Battery Cable (Qty 1)
- 160 Battery - All models except Renegade and Revolt (Qty 1)
- 162 Clutch For 1" Shaft (Qty 1)
- 163 Clutch Pigtail (Qty 1)
- 187 Solenoid (752-1251-210HP) (Qty 1)
-
18#013-8240-00
M8 Nut fits the 015-9990-00/015-9991-00
Qty Used: 4Regular price $6.69 USDRegular priceUnit price per
-
19#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
28#015-0051-00
2017 Kohler Exhaust MZ/ZT/Mav/Compact Outlaw
Qty Used: 1Regular price $217.48 USDRegular priceUnit price per
-
33#015-2014-00
25hp Kohler 2014 MZ-KT740-3048
Qty Used: 1Regular price $1,799.00 USDRegular priceUnit price per
-
33.1#015-2751-00
Exhaust Gaskets for 27,30 hp
Qty Used: 2Regular price $5.96 USDRegular priceUnit price per
-
33.2#015-8000-00
Spark Plug-Kohler/Briggs
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
33.3#063-5004-00
25 HP Kohler Oil Filter ZT/MZ
Qty Used: 1Regular price $21.99 USDRegular priceUnit price per
-
33.4#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
36#018-0007-21
7/16-20x3” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
43#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
66#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
72#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
110#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
111#030-7044-00
5/16-18 x ½” HWH unslot (F) tcs zinc
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
115#033-2010-00
3 3/4 Motor Pulley-2009 MZ
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
134#041-6400-00
Pump Belt for ZT, MZ, Avenger
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
136#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
138#043-8930-98
2023 Battery Hold Down Assembly
Qty Used: 1Regular price $24.99 USDRegular priceUnit price per
-
138.1#043-8930-00
2023 Rubber Battery Hold Down Strap
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
138.2#043-8931-00
2023 Battery Tray Only
Qty Used: 1Regular price $18.99 USDRegular priceUnit price per
-
145#051-5401-00
Kohler Oil Drain Hose
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
152#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
-
155#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
156#064-5301-00
14\" Red Battery Cable
Qty Used: 1Regular price $16.04 USDRegular priceUnit price per
-
160#068-8049-00
Battery - All models except Diesel and Revolt
Qty Used: 1Regular price $64.99 USDRegular priceUnit price per
-
162#070-0055-00
Clutch For 1\" Shaft
Qty Used: 1Regular price $279.99 USDRegular priceUnit price per
-
163#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
187#108-0001-00
Solenoid (752-1251-210HP)
Qty Used: 1Regular price $27.49 USDRegular priceUnit price per
