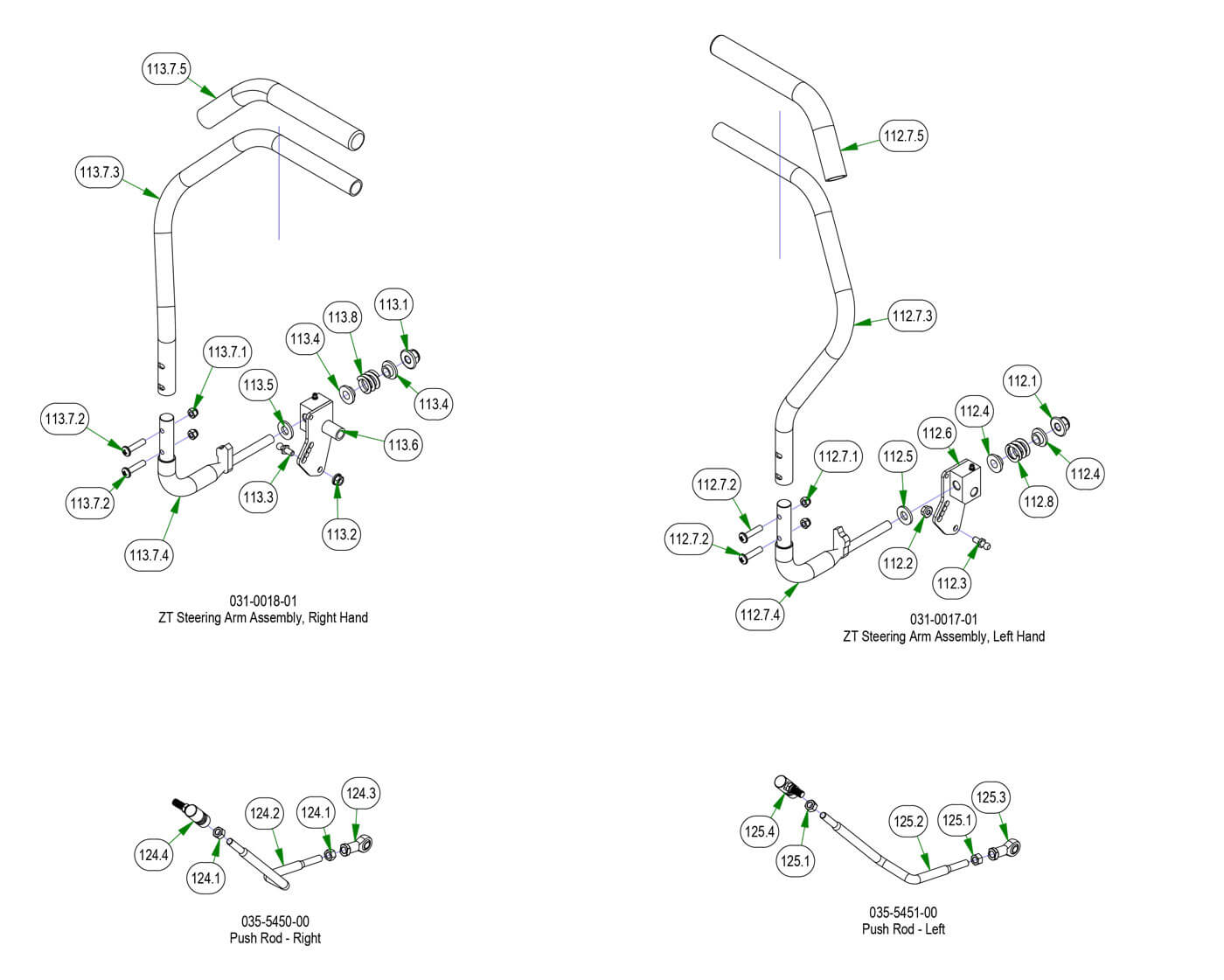

Drive Arm Subassemblies
Parts Index
- 112 2017 ZT LH Arm Assembly (Qty 1)
- 112.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 112.2 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 112.3 10mm Damper Ball Stud- (Qty 1)
- 112.4 .515 ID Plastic Shoulder Washer (Qty 2)
- 112.5 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 112.6 Drive Lever Housing LH (Qty 1)
- 112.7 Orange ZT Steering Arm Left- (Qty 1)
- 112.7.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 112.7.2 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 112.7.3 10mm Damper Ball Stud- (Qty 1)
- 112.7.4 Steering Arm Elbow- Left (Qty 1)
- 112.7.5 Black Steering Grip (Qty 1)
- 112.8 Drive Lever Housing Spring (Qty 1)
- 113 2017 ZT RH Arm Assembly (Qty 1)
- 113.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 113.2 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 113.3 10mm Damper Ball Stud- (Qty 1)
- 113.4 .515 ID Plastic Shoulder Washer (Qty 2)
- 113.5 .505 ID X 1 OD X .128 THK Washer (Qty 1)
- 113.6 Drive Lever Housing RH (Qty 1)
- 113.7 Orange ZT Steering Arm-Right (Qty 1)
- 113.7.1 5/16-18 Nylon Insert Locknut Z (Qty 2)
- 113.7.2 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 2)
- 113.7.3 Steering Arm Right - 5" Tubing (Qty 1)
- 113.7.4 Steering Arm Elbow - Right (Qty 1)
- 113.7.5 Black Steering Grip (Qty 1)
- 113.8 Drive Lever Housing Spring (Qty 1)
- 124 Push Rod RH (Assembly) (Qty 1)
- 124.1 3/8-24 Hex Nut Zinc (Qty 2)
- 124.3 Spherical Rod End (Qty 1)
- 124.4 Quick Release Ball Joint (Qty 1)
- 125 Push Rod LH (Assembly) (Qty 1)
- 125.1 3/8-24 Hex Nut Zinc (Qty 2)
- 125.3 Spherical Rod End (Qty 1)
- 125.4 Quick Release Ball Joint (Qty 1)
-
112#031-0017-01
2017 ZT LH Arm Assembly
Qty Used: 1Regular price $145.99 USDRegular priceUnit price per
-
112.1113.1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
112.2112.7.2113.2#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
112.3112.7.3113.3#018-2050-00
10mm Damper Ball Stud-
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
112.4113.4#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
112.5113.5#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
112.6#031-0017-98
Drive Lever Housing LH
Qty Used: 1Regular price $29.19 USDRegular priceUnit price per
-
112.7#031-8850-70
Black ZT Steering Arm Left-
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
112.7.1113.7.1#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
112.7.4#031-9020-70
Steering Arm Elbow- Left
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
112.7.5113.7.5#069-4010-00
Black Steering Grip
Qty Used: 1Regular price $7.38 USDRegular priceUnit price per
-
112.8113.8#034-8025-00
Drive Lever Housing Spring
Qty Used: 1Regular price $3.70 USDRegular priceUnit price per
-
113#031-0018-01
2017 ZT RH Arm Assembly
Qty Used: 1Regular price $145.99 USDRegular priceUnit price per
-
113.6#031-0018-98
Drive Lever Housing RH
Qty Used: 1Regular price $21.89 USDRegular priceUnit price per
-
113.7#031-8851-70
Black ZT Steering Arm-Right
Qty Used: 1Regular price $87.51 USDRegular priceUnit price per
-
113.7.2#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
113.7.3#031-8851-02
Steering Arm Right - 5" Tubing
Qty Used: 1Regular price $79.55 USDRegular priceUnit price per
-
113.7.4#031-9025-70
Steering Arm Elbow - Right
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
124#035-5450-00
Push Rod RH (Assembly)
Qty Used: 1Regular price $31.73 USDRegular priceUnit price per
-
124.1125.1#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
124.3125.3#048-3000-00
Spherical Rod End-Outlaw Only
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
124.4125.4#099-2009-00
Quick Release Ball Joint
Qty Used: 1Regular price $8.99 USDRegular priceUnit price per
-
125#035-5451-00
Push Rod LH (Assembly)
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
