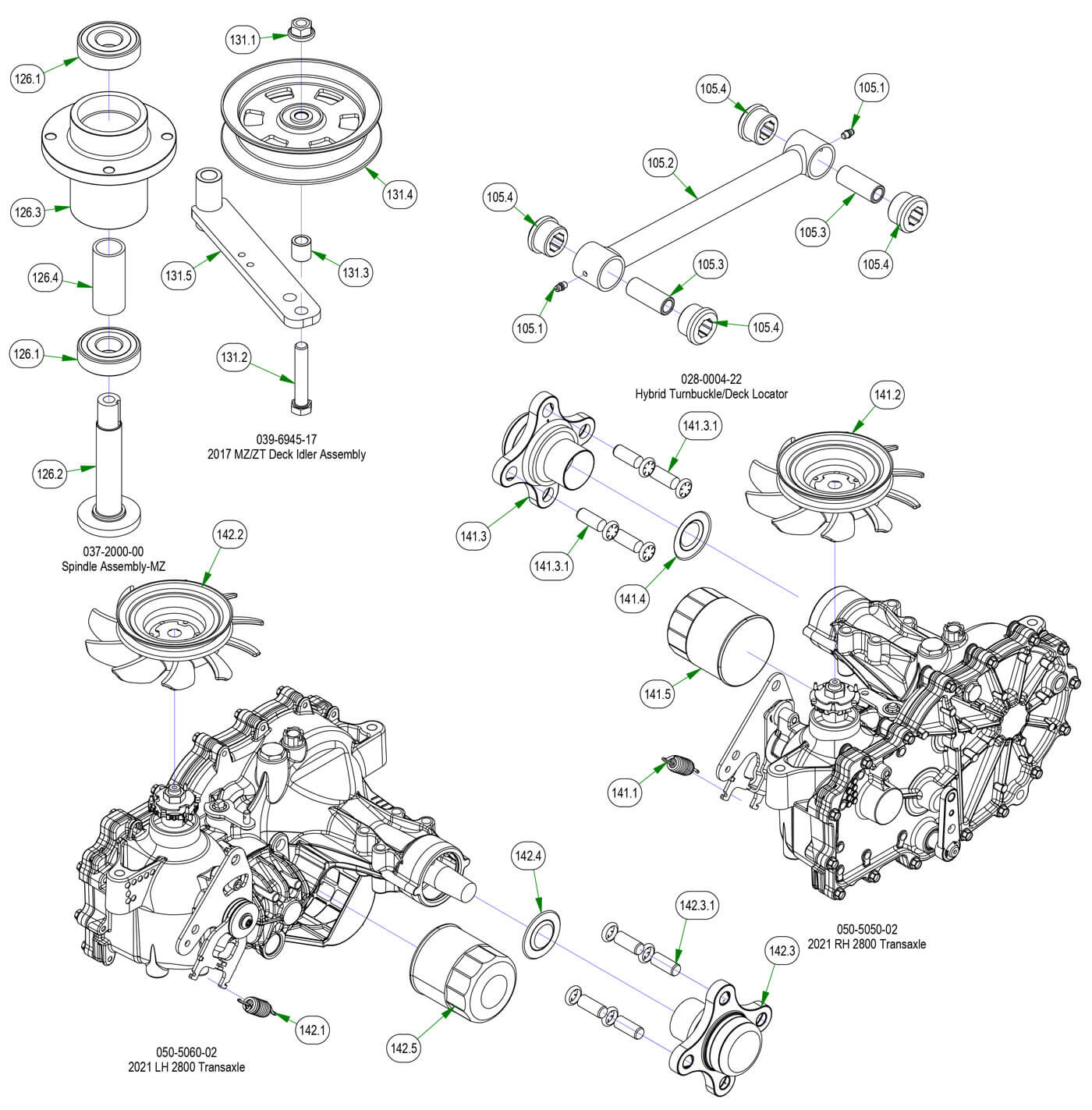

Deck Subassemblies
Parts Index
- 105 Actuator Bar (Front) (Qty 2)
- 105.1 1/4-28 Threaded Grease Fitting (Qty 2)
- 105.3 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 105.4 2018 Maverick Topllink Bushing (Qty 4)
- 126 Spindle Assembly-Magnum Models (Qty 3)
- 126.1 MZ Spindle Bearing (Qty 2)
- 126.2 mz spindle shaft (Qty 1)
- 126.3 MZ Spindle Housing (Qty 1)
- 126.4 MZ Spindle Spacer-Component (Qty 1)
- 131 2017 MZ/ZT Deck Idler Assembly (Qty 2)
- 131.1 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 131.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 131.3 Spacer 3/4ODx1/2IDx0.75 (Qty 1)
- 131.4 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 131.5 Idler Bracket (Qty 1)
- 141 2021 RH 2800 Transaxle (Qty 1)
- 141.1 Gold Transaxle Spring (Qty 1)
- 141.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
- 141.3 ZT Transaxle Wheel Hub (Qty 1)
- 141.3.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 4)
- 141.4 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 141.5 ZT Hydraulic Filter (Qty 1)
- 142 2021 LH 2800 Transaxle (Qty 1)
- 142.1 Gold Transaxle Spring (Qty 1)
- 142.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
- 142.3 ZT Transaxle Wheel Hub (Qty 1)
- 142.3.1 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 4)
- 142.4 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 142.5 ZT Hydraulic Filter (Qty 1)
-
105#028-0002-00
Actuator Bar (Front)
Qty Used: 2Regular price $72.97 USDRegular priceUnit price per
-
105.1#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-
105.3#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
105.4#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
-
126#037-2000-00
Spindle Assembly-Magnum Models
Qty Used: 3Regular price $204.33 USDRegular priceUnit price per
-
126.1#037-6024-00
MZ Spindle Bearing
Qty Used: 2Regular price $32.10 USDRegular priceUnit price per
-
126.2#037-6025-00
mz spindle shaft
Qty Used: 1Regular price $56.99 USDRegular priceUnit price per
-
126.3#037-6027-00
MZ Spindle Housing
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
126.4#037-6028-00
MZ Spindle Spacer-Component
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
131#039-6945-17
2017 MZ/ZT Deck Idler Assembly
Qty Used: 2Regular price $66.33 USDRegular priceUnit price per
-
131.1#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
131.2#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
131.3#025-5203-00
Spacer 3/4ODx1/2IDx0.75
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
131.4#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
131.5#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
141#050-5050-02
2021 RH 2800 Transaxle
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
-
141.1142.1#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
141.2142.2#050-2070-00
2021 ZT/Maverick Transaxle Fan/Pulley Kit
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
141.3142.3#050-2076-00
ZT Transaxle Wheel Hub
Qty Used: 1Regular price $84.64 USDRegular priceUnit price per
-
141.3.1#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 4Regular price $5.10 USDRegular priceUnit price per
-
141.4142.3.1142.4#050-8010-00
2021 ZT/Maverick Transaxle Seal Kit (ZT-2800)
Qty Used: 1Regular price $109.46 USDRegular priceUnit price per
-
141.5142.5#063-1050-00
ZT Hydraulic Filter
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
142#050-5060-02
2021 LH 2800 Transaxle
Qty Used: 1Regular price $699.99 USDRegular priceUnit price per
