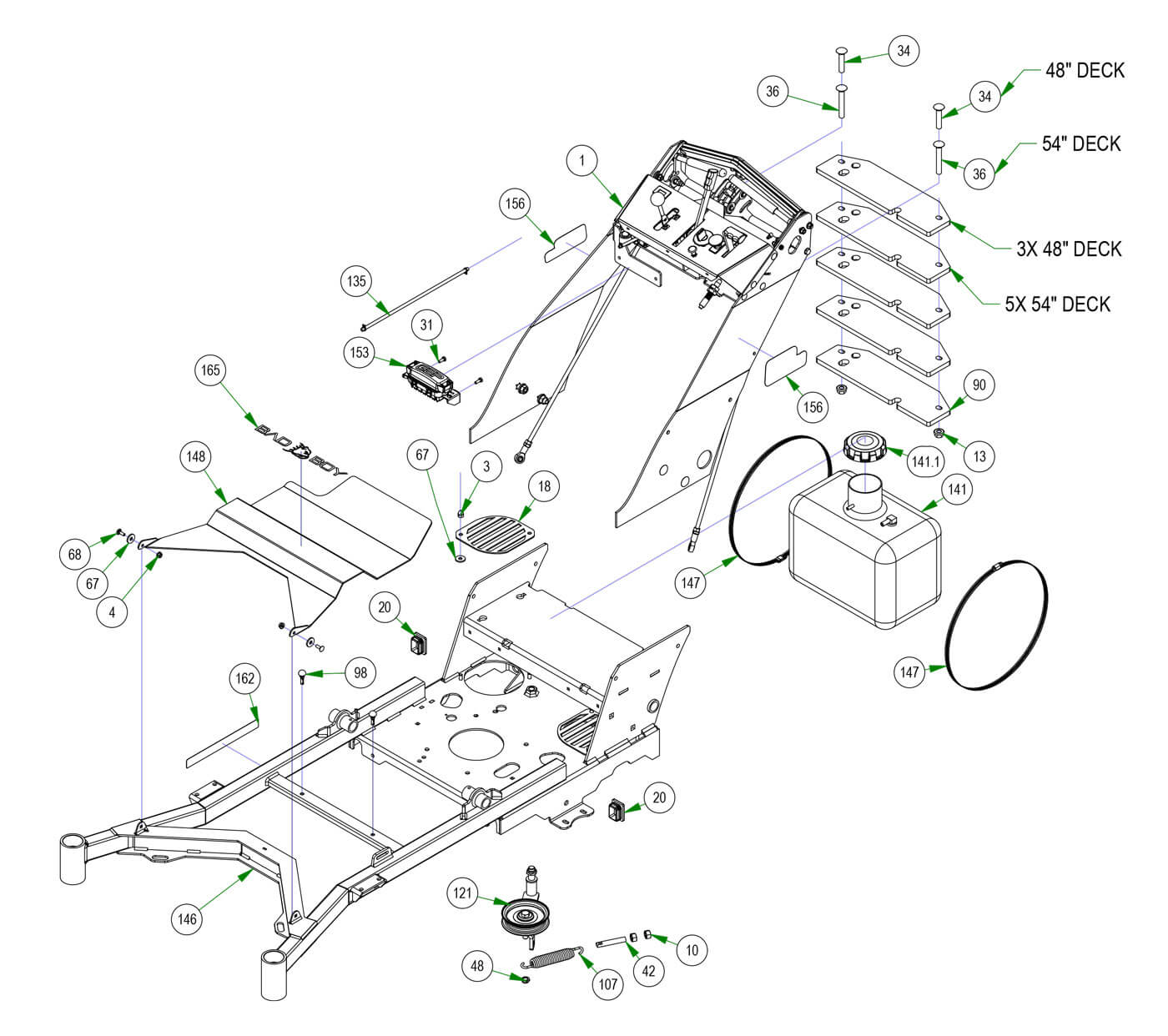

Upper Frame
Parts Index
- 1 2023 Walk Behind Podium Assembly (Qty 1)
- 3 Acorn Nut-Pulley Cover (Qty 2)
- 4 1/4-20 Nylon Insert Flange Nut (Qty 3)
- 10 1/2-13 Hex Nuts Zinc (Qty 2)
- 13 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 18 Walk Behind Bolt On Fan Cover--Orange (Qty 2)
- 31 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 34 2 1/2 X 1/2 Carriage Bolt (Qty 2)
- 42 All Thread (Qty 1)
- 48 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 67 .360 ID Black Plastic Washer (Qty 4)
- 68 1/4 x 3/4 Carriage Bolt (Qty 2)
- 69 5/16 USS Flat Washer Zinc (Qty 1)
- 98 2023 Floor Board Rubber Bumpers (Qty 2)
- 107 2009 Deck/Pump Idler Spring (Qty 1)
- 121 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 135 15" Revolt Fuel Line Assembly (Qty 1)
- 141 2017/18 Walk Behind Black Fuel Tank (Qty 1)
- 141.1 3.5" Tethered Fuel Cap (Qty 1)
- 147 Fuel Tank Clamp-Stand On (Qty 2)
- 148 V2 Floorboard--Black (Qty 1)
- 156 2018 Walk Behind 603cc Back Plate Cluster (Qty 1)
- 162 Long Seat Plate Warning Decal (Qty 1)
- 174 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 1)
-
1#079-0036-23
2023 Walk Behind Podium Assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
3#013-0004-00
Acorn Nut-Pulley Cover
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
4#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 3Regular price $1.39 USDRegular priceUnit price per
-
10#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
13#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-

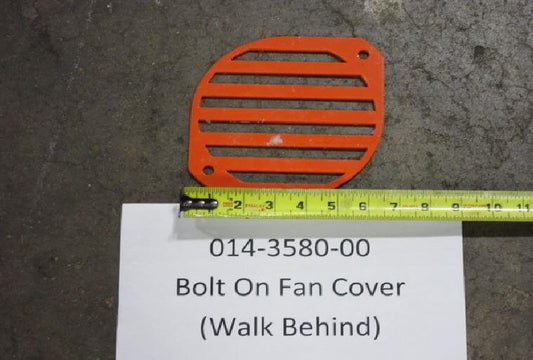

18#014-3580-00
Walk Behind Bolt On Fan Cover--Orange
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
31#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
34#018-0043-00
2 1/2 X 1/2 Carriage Bolt
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
42#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
48#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
67#019-6050-00
.360 ID Black Plastic Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
68#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
69#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
98#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-

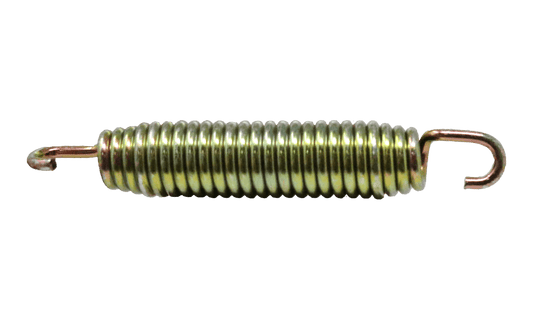

107#034-2009-00
2009 Deck/Pump Idler Spring
Qty Used: 1Regular price $16.99 USDRegular priceUnit price per
-
121#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
No sequence found for SKU:
15\" Revolt Fuel Line Assembly
Regular price $0.00 USDRegular priceUnit price per
-
141#067-0003-00
2017/18 Walk Behind Black Fuel Tank
Qty Used: 1Regular price $290.46 USDRegular priceUnit price per
-
141.1#066-8083-00
3.5" Tethered Fuel Cap
Qty Used: 1Regular price $19.84 USDRegular priceUnit price per
-

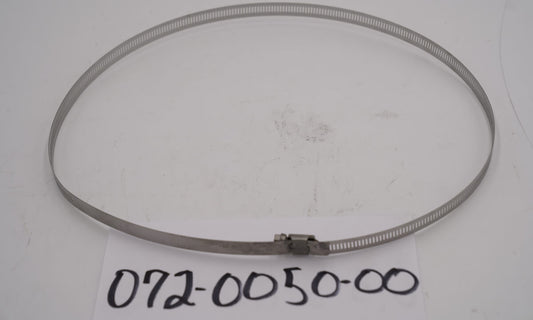

147#072-0050-00
Fuel Tank Clamp-Stand On
Qty Used: 2Regular price $10.60 USDRegular priceUnit price per
-
148#079-0040-00
V2 Floorboard--Black
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
-
156#091-0412-18
2018 Walk Behind 603cc Back Plate Cluster
Qty Used: 1Regular price $16.49 USDRegular priceUnit price per
-
162#091-3150-00
Outlaw Warning Decal
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
174#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
