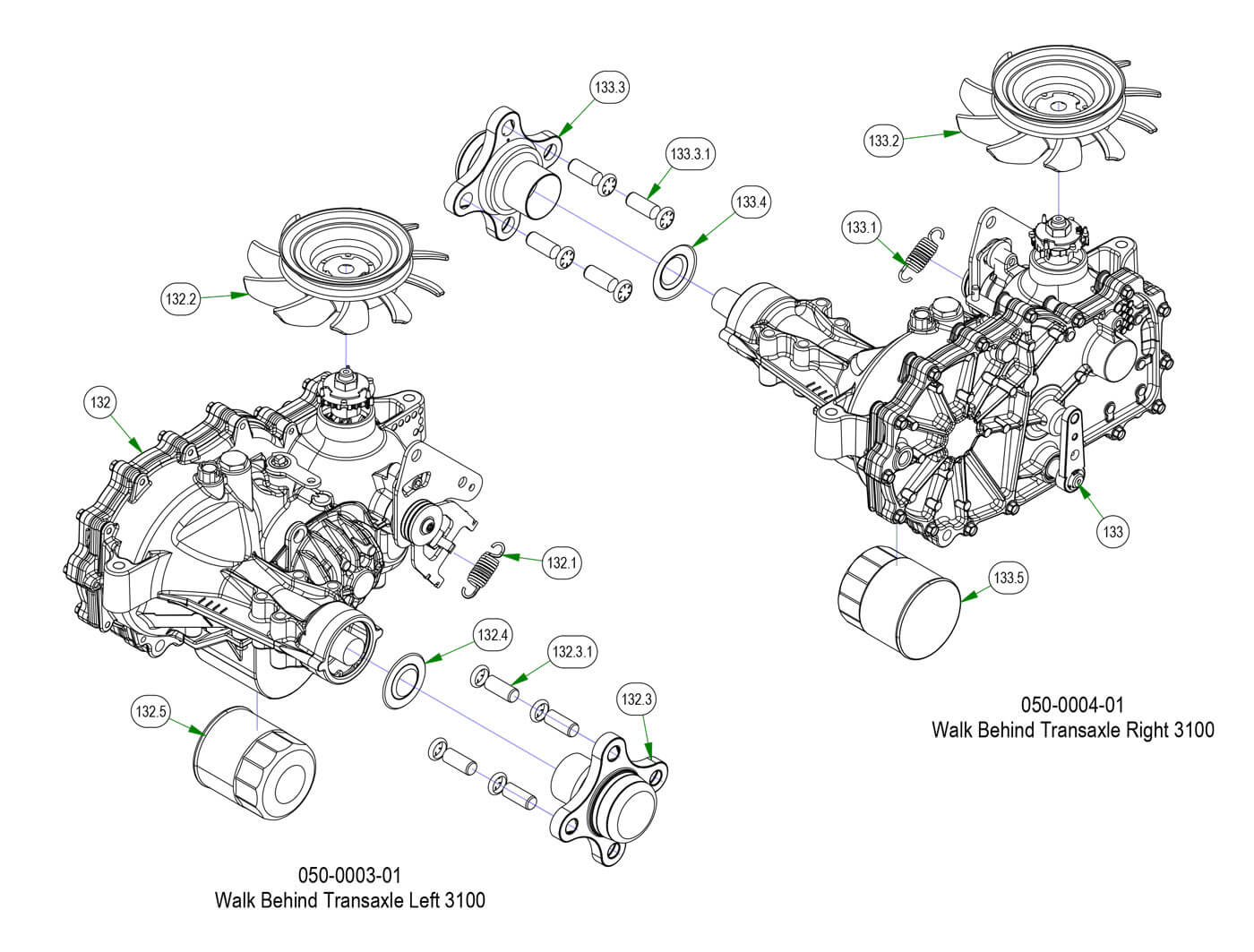

Transaxle Subassemblies
Parts Index
- 122.2 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 122.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 122.5 .502x.750x1.130 Length Spacer (Qty 1)
- 132 Walk Behind Transaxle Left 3100 (Qty 1)
- 132.1 Gold Transaxle Spring (Qty 1)
- 132.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
- 132.3 ZT Transaxle Wheel Hub (Qty 1)
- 132.3.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 4)
- 132.4 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 132.5 ZT Hydraulic Filter (Qty 1)
- 133 Walk Behind Transaxle Right 3100 (Qty 1)
- 133.1 Gold Transaxle Spring (Qty 1)
- 133.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit (Qty 1)
- 133.3 ZT Transaxle Wheel Hub (Qty 1)
- 133.3.1 Transaxle Wheel Studs/ Drum Brake Studs (Qty 4)
- 133.4 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) (Qty 1)
- 133.5 ZT Hydraulic Filter (Qty 1)
- 182 10mm Damper Ball Stud- (Qty 1)
- 183 3/8-16 x 5 Hex Bolt - Grade 5 (Qty 2)
- 184 3/8 USS Flat Washer Zinc (Qty 2)
- 185 2023 4' & 5' Striping Kit Plate--Orange (Qty 3)
- 186 1/4 USS Flat Washer Zinc (Qty 2)
- 187 24 inch Black Cable - MZ/ZT (Qty 1)
-
122.2#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
122.4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
122.5#025-5337-00
.502x.750x1.130 Length Spacer
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
132#050-0003-01
Walk Behind Transaxle Left 3100
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
132.1133.1#034-9080-00
Gold Transaxle Spring
Qty Used: 1Regular price $13.92 USDRegular priceUnit price per
-
132.2133.2#050-2070-00
2021 ZT/Maverick Transaxle Fan/Pulley Kit
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
132.3133.3#050-2076-00
ZT Transaxle Wheel Hub
Qty Used: 1Regular price $84.64 USDRegular priceUnit price per
-
132.3.1133.3.1#050-2012-00
Transaxle Wheel Studs/ Drum Brake Studs
Qty Used: 4Regular price $5.10 USDRegular priceUnit price per
-
132.4133.4#050-8010-00
2021 ZT/Maverick Transaxle Seal Kit (ZT-2800)
Qty Used: 1Regular price $109.46 USDRegular priceUnit price per
-
132.5133.5#063-1050-00
ZT Hydraulic Filter
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
133#050-0004-01
Walk Behind Transaxle Right
Qty Used: 1Regular price $507.49 USDRegular priceUnit price per
-
182#018-2050-00
10mm Damper Ball Stud-
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
183#018-7055-00
3/8-16 x 5 Hex Bolt - Grade 5
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
184#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
185#026-0307-00
2023 4' & 5' Striping Kit Plate--Orange
Qty Used: 3Regular price $9.99 USDRegular priceUnit price per
-
186#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
187#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
