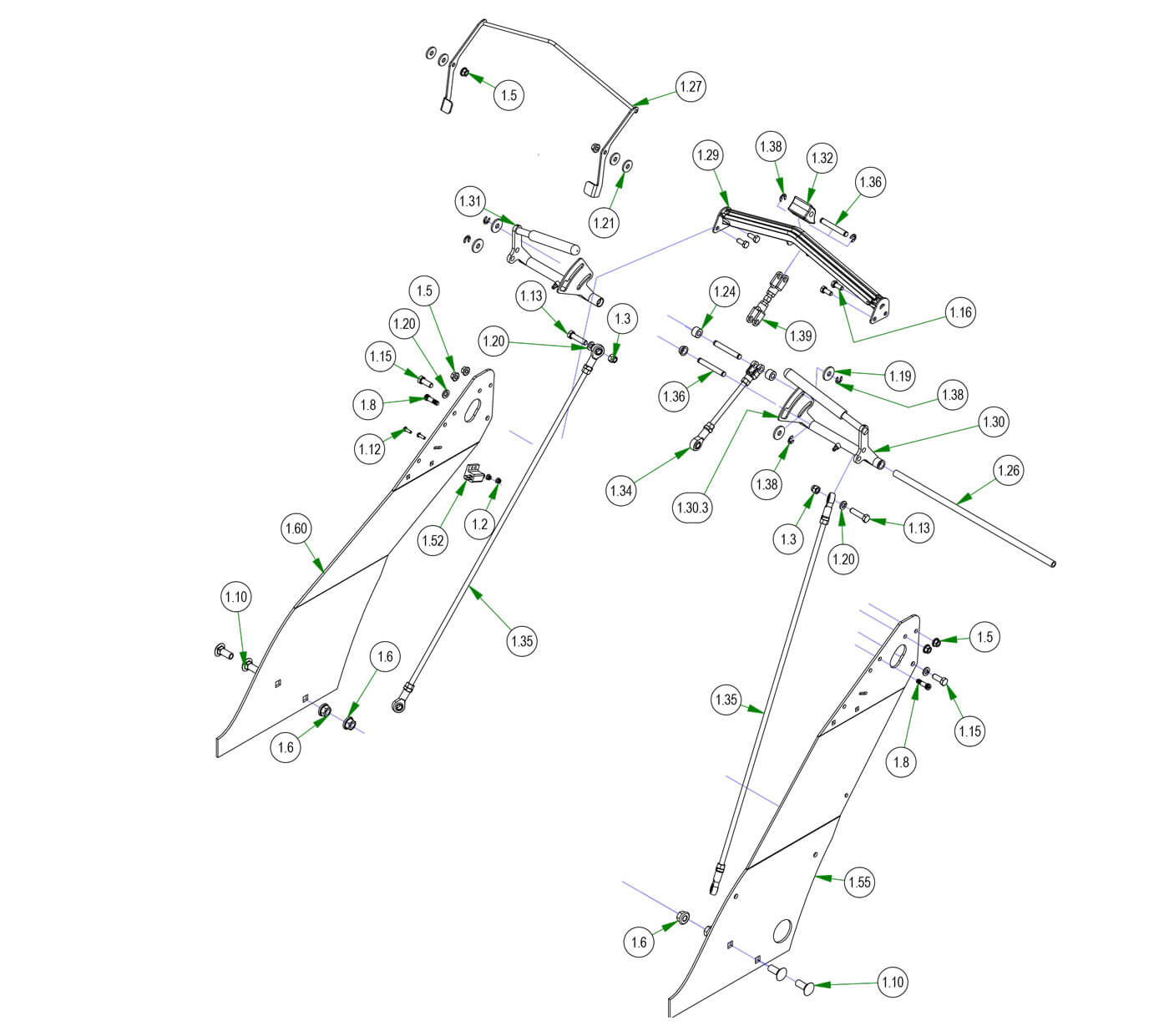

Podium Controls
Parts Index
- 1 2023 Walk Behind Podium Assembly (Qty 1)
- 1.2 10-24 Nylon Insert Locknut Zin (Qty 2)
- 1.3 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 1.5 5/16-18 Nylon Flange Nut (Qty 6)
- 1.6 1/2-13 Nylon Insert Flange Nut (Qty 4)
- 1.8 18-8 Stainless Steel Sholder Screw (Qty 2)
- 1.10 1/2 x 1 1/4 Carriage Bolt (Qty 4)
- 1.12 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 1.13 3/8 x 1 1/2 Bolt (Qty 2)
- 1.15 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 1.16 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 4)
- 1.19 .390 ID Plastic Washer (Qty 4)
- 1.20 3/8 Lockwasher Zinc (Qty 4)
- 1.21 .360 ID Plastic Washer (Qty 4)
- 1.24 MZ Tank Spacer (Qty 4)
- 1.26 2017 Walk Behind Control Pivot Rod (Qty 1)
- 1.27 2020 Walk-Behind Presence-Weldment--Black (Qty 1)
- 1.29 2020 Walk-Behind Presence-Weldment--Black (Qty 1)
- 1.30 2020 Walkbehind Overmolded Bolt on Handle (Qty 1)
- 1.31 2020 Walk-Behind Control Lever Assy-Right (Qty 1)
- 1.32 2020 Walk-Behind Neutral Lever (Qty 1)
- 1.34 2017 Walk Behind Speed Control Rod Assembly (Qty 1)
- 1.35 2020 Walk-Behind Push Rod Assembly (Qty 2)
- 1.36 2020 Walk-Behind Control Pin (Qty 3)
- 1.38 3/8 E Clip (Qty 6)
- 1.39 Adjustable Yoke Male/Female (Qty 1)
- 1.52 2017? Walk Behind-Safety Switch (Qty 1)
- 7 3/8 Nylock Flange Nut (Qty 1)
-
1#079-0036-23
2023 Walk Behind Podium Assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
1.2#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
1.3#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
1.5#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
1.6#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
1.8#018-0076-00
18-8 Stainless Steel Sholder Screw
Qty Used: 2Regular price $21.99 USDRegular priceUnit price per
-
1.10#018-3003-00
1/2 x 1 1/4 Carriage Bolt
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
1.12#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
1.13#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
1.15#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
1.16#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
1.19#019-2073-00
.390 ID Plastic Washer
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
1.20#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
1.21#019-6042-00
.360 ID Plastic Washer
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-

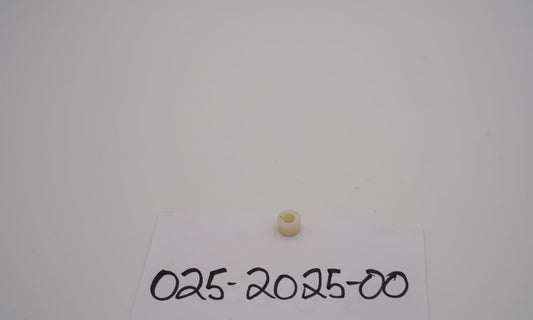

1.24#025-2025-00
MZ Tank Spacer
Qty Used: 4Regular price $1.33 USDRegular priceUnit price per
-
1.26#028-0009-00
2017 Walk Behind Control Pivot Rod
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
1.271.29#028-0043-00
2020 Walk-Behind Presence-Weldment--Black
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-

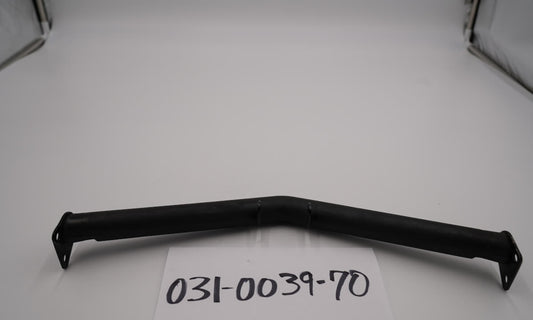

1.30#031-0039-70
2020 Walkbehind Overmolded Bolt on Handle
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-

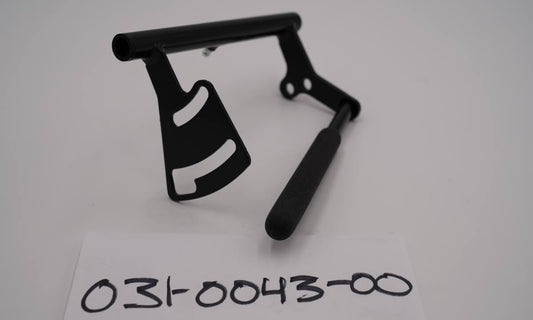

1.31#031-0043-00
2020 Walk-Behind Control Lever Assy-Right
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
1.32#031-0047-00
2020 Walk-Behind Neutral Lever
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
No sequence found for SKU:
2017 Walk Behind Speed Control Rod Assembly
Regular price $0.00 USDRegular priceUnit price per
-
1.35#035-0007-98
2020 Walk-Behind Push Rod Assembly
Qty Used: 2Regular price $39.99 USDRegular priceUnit price per
-
1.36#035-0008-00
2020 Walk-Behind Control Pin
Qty Used: 3Regular price $29.99 USDRegular priceUnit price per
-
1.38#044-2018-00
3/8 E Clip
Qty Used: 6Regular price $1.99 USDRegular priceUnit price per
-
1.39#047-9000-00
Adjustable Yoke Male/Female
Qty Used: 1Regular price $13.20 USDRegular priceUnit price per
-
1.52#077-0002-00
2017? Walk Behind-Safety Switch
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
7#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
