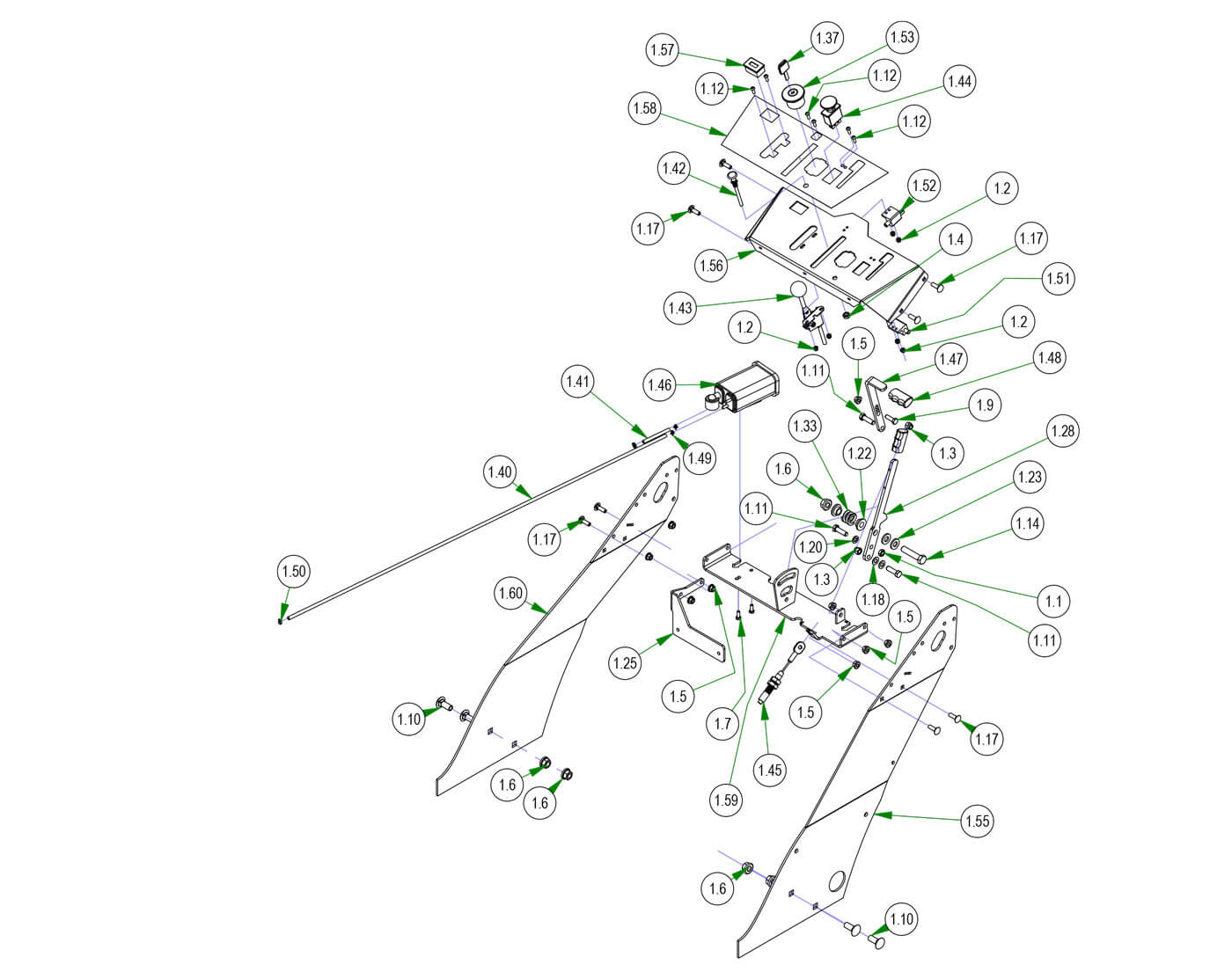

Podium Control Panel
Parts Index
- 1 2023 Walk Behind Podium Assembly (Qty 1)
- 1.1 3/8-16 Centerlock Half Nut (Qty 1)
- 1.2 10-24 Nylon Insert Locknut Zin (Qty 6)
- 1.3 3/8-16 Nylon Insert Locknut Zi (Qty 2)
- 1.4 3/8-24 Hex Nut Zinc (Qty 1)
- 1.5 5/16-18 Nylon Flange Nut (Qty 9)
- 1.6 1/2-13 Nylon Insert Flange Nut (Qty 5)
- 1.7 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 1.9 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 1)
- 1.10 1/2 x 1 1/4 Carriage Bolt (Qty 4)
- 1.11 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 3)
- 1.12 10-24 X 5/8 BS C/S 18-8 SS (Qty 6)
- 1.14 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 1)
- 1.17 5/16-18 X 1 Carriage Bolt Zinc (Qty 8)
- 1.18 .390x.750x.062 Nylon Washer (Qty 4)
- 1.20 3/8 Lockwasher Zinc (Qty 1)
- 1.22 .515 ID Plastic Shoulder Washer (Qty 2)
- 1.23 .505 ID X 1 OD X .128 THK Washer (Qty 2)
- 1.28 Walk Behind Speed Control Lever--Black (Qty 1)
- 1.33 Drive Lever Housing Spring (Qty 1)
- 1.37 Ignition Key (Qty 1)
- 1.40 44" x 3/16" black hose (Qty 1)
- 1.41 Clear 3/16" Magnum Air Line (Qty 1)
- 1.42 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 1.43 ZT/Mav/MZ/Comp Outlaw Throttle-53" (Qty 1)
- 1.44 PTO Engager-Switch for Blades (Qty 1)
- 1.45 Brake Cable Walk Behind/Revolt (Qty 1)
- 1.46 Carbon Canister for Magnum/MZ (Qty 1)
- 1.47 Walk Behind Brake Handle--Black (Qty 1)
- 1.48 Rubber Brake Grip-cZT/ZT 2013 (Qty 2)
- 1.49 5.5 mm Vinyl Hose Clamp (Qty 3)
- 1.50 3/16" Vinyl Hose Clamp (Qty 1)
- 1.51 2017? Walk Behind-Safety Switch Brake (Qty 1)
- 1.52 2017? Walk Behind-Safety Switch (Qty 1)
- 1.53 Ignition Switch (Qty 1)
- 1.57 Tachometer-N310-0100-1018 (Qty 1)
- 1.58 2020 Walkbehind Contol Panel Decal (Qty 1)
- 1.59 2020 Walk Behind Cross Support--Orange (Qty 1)
-
1#079-0036-23
2023 Walk Behind Podium Assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
1.1#013-0012-00
3/8-16 Centerlock Half Nut
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
1.2#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 6Regular price $0.69 USDRegular priceUnit price per
-
1.3#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
1.4#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
1.5#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 9Regular price $0.79 USDRegular priceUnit price per
-
1.6#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 5Regular price $1.39 USDRegular priceUnit price per
-
1.7#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
1.9#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-

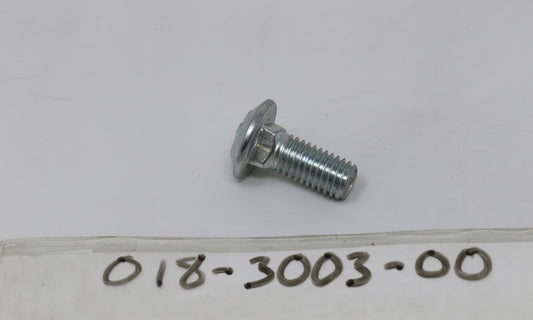

1.10#018-3003-00
1/2 x 1 1/4 Carriage Bolt
Qty Used: 4Regular price $0.89 USDRegular priceUnit price per
-
1.11#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 3Regular price $0.79 USDRegular priceUnit price per
-
1.12#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
1.14#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
1.17#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
1.18#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
1.20#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
1.22#019-8027-00
.515 ID Plastic Shoulder Washer
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
1.23#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
1.28#031-0036-00
Walk Behind Speed Control Lever--Black
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
1.33#034-8025-00
Drive Lever Housing Spring
Qty Used: 1Regular price $3.70 USDRegular priceUnit price per
-
1.37#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
1.40#051-2023-02
44" x 3/16" black hose
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
1.41#051-2027-00
Clear 3/16" Magnum Air Line
Qty Used: 1Regular price $1.31 USDRegular priceUnit price per
-
1.42#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
1.43#055-8020-00
ZT/Mav/MZ/Comp Outlaw Throttle-53\"
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
1.44#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
1.45#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-

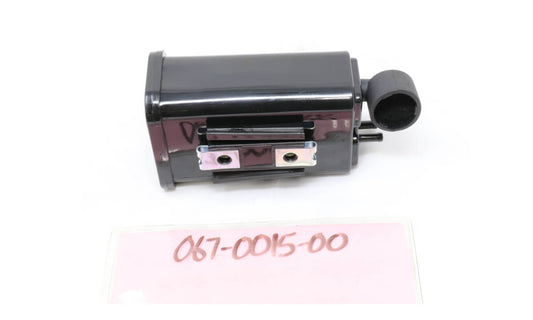

1.46#067-0015-00
Carbon Canister for Magnum/MZ
Qty Used: 1Regular price $43.72 USDRegular priceUnit price per
-
1.47#069-2020-00
Walk Behind Brake Handle--Black
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
1.48#069-7000-00
Rubber Brake Grip-cZT/ZT 2013
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
1.49#072-0002-00
5.5 mm Vinyl Hose Clamp
Qty Used: 3Regular price $2.19 USDRegular priceUnit price per
-
1.50#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-

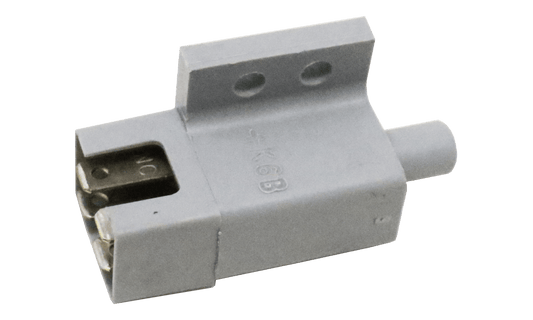

1.51#077-0001-00
2017? Walk Behind-Safety Switch Brake
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
1.52#077-0002-00
2017? Walk Behind-Safety Switch
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
1.53#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
1.57#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
1.58#091-4055-00
2020 Walkbehind Contol Panel Decal
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
1.59#201-1171-00
2020 Walk Behind Cross Support--Orange
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
