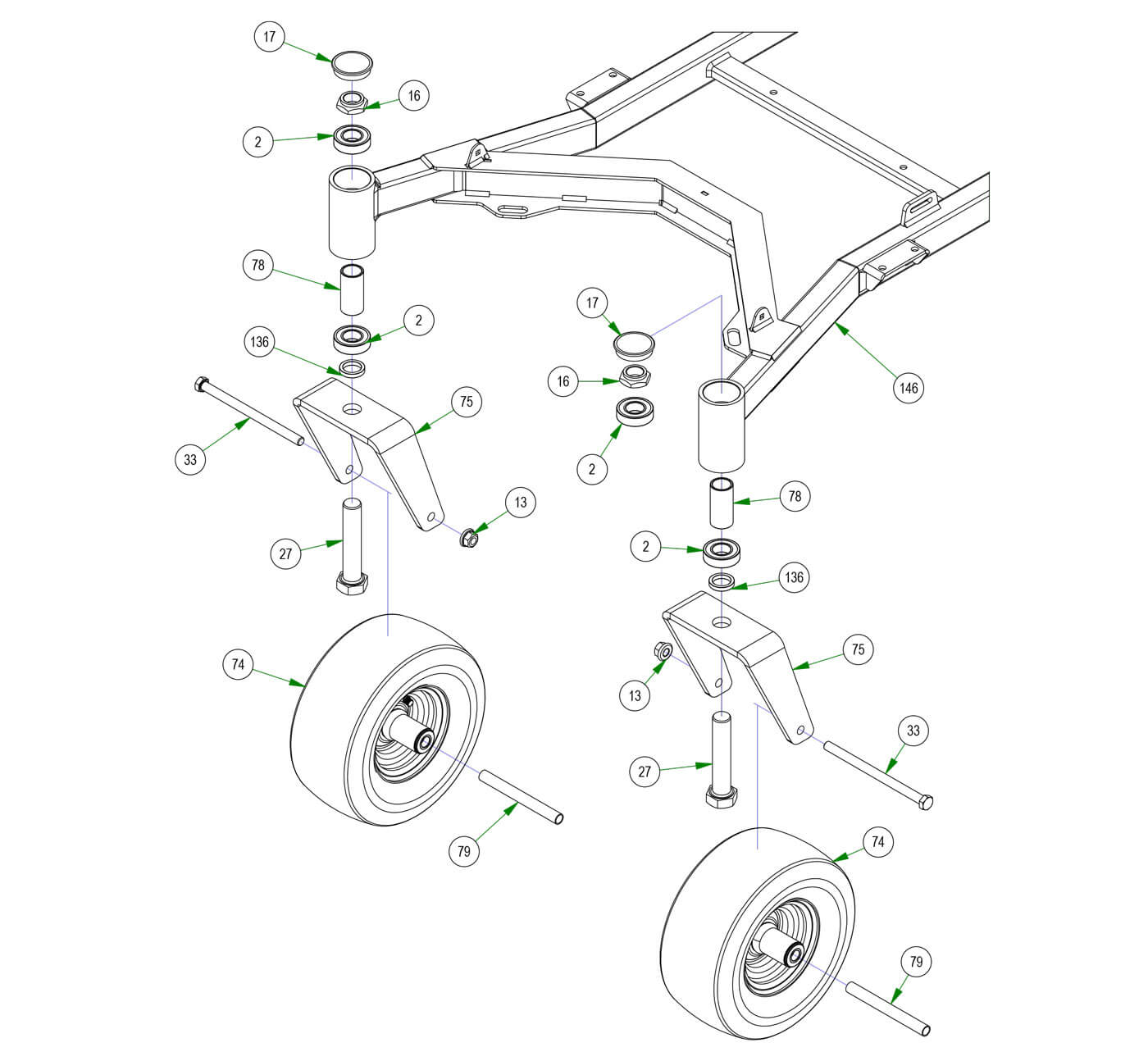

Front End
Parts Index
- 2 Caster Bearing (Qty 4)
- 13 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 16 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 17 Bearing Retainer Cap (Qty 2)
- 27 1-14 X 5 BOLT GR 8 ZC YELLOW (Qty 2)
- 33 1/2-13 x 7 1/2 Grade 5 Hex Bolt (Qty 2)
- 74 11x6.00-5 Front Assembly - Black Wheel (Qty 2)
- 75 Magnum Front Fork (Qty 2)
- 78 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 79 Front Wheel Spanner - MZ (Qty 2)
- 136 Spacer ( Front Fork and Suspension ) (Qty 2)
-
2#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
13#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
16#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
17#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
27#018-0005-00
1-14 X 5 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $5.89 USDRegular priceUnit price per
-
33#018-0035-00
1/2-13 x 7 1/2 Grade 5 Hex Bolt
Qty Used: 2Regular price $4.39 USDRegular priceUnit price per
-
74#022-8049-22
11x6.00-5 Front Assembly - Black Wheel
Qty Used: 2Regular price $92.89 USDRegular priceUnit price per
-
75#023-0002-00
Magnum Front Fork
Qty Used: 2Regular price $29.19 USDRegular priceUnit price per
-
78#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
79#025-0008-00
Front Wheel Spanner - MZ
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
136#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
