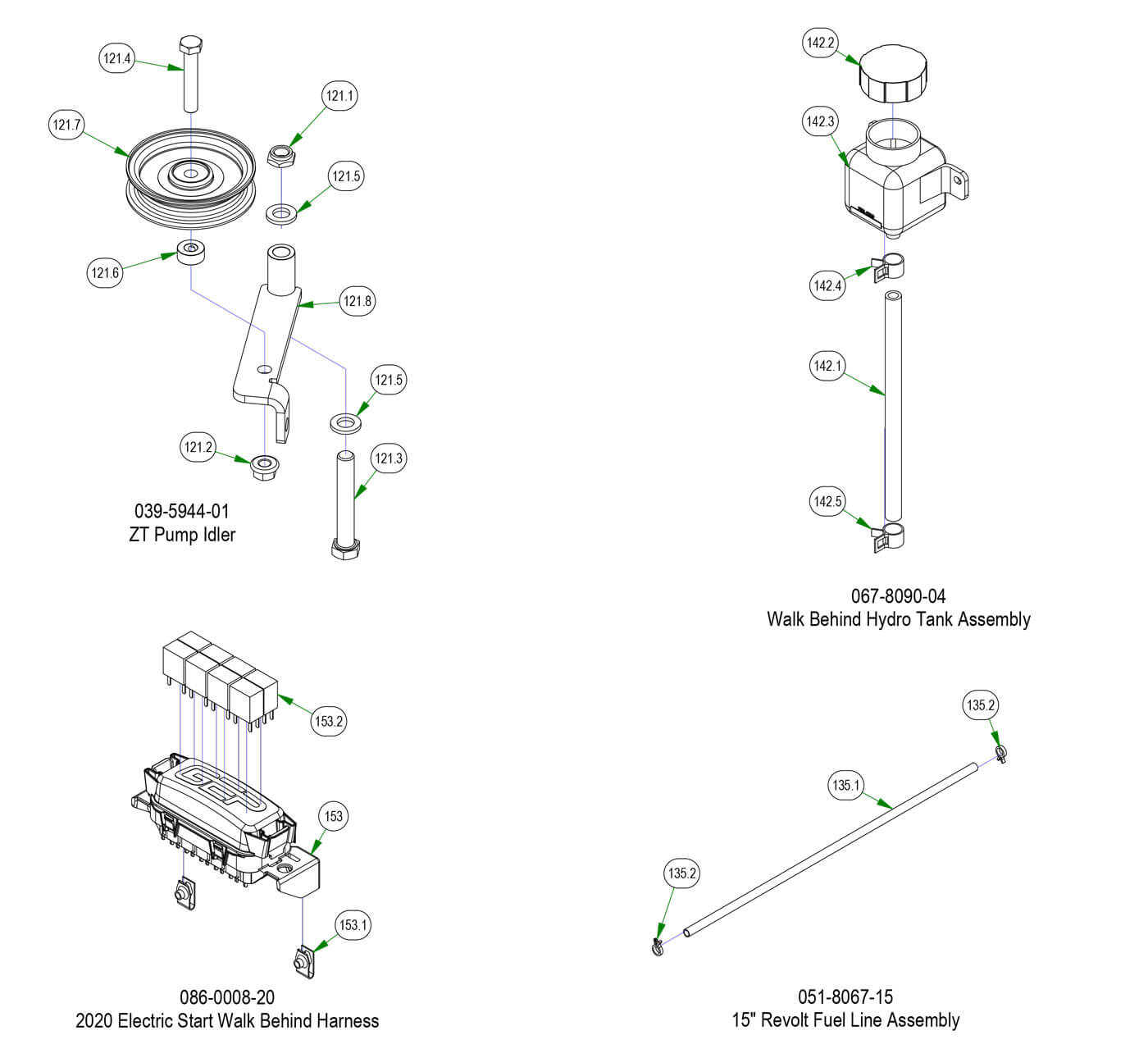

Frame Subassemblies
Parts Index
- 121 Pump Idler Bracket Assembly-ZT, MZ, Aven, Raider (Qty 1)
- 121.1 5/8-11 Nylon Insert Jam Locknu (Qty 1)
- 121.2 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 121.3 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 121.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 121.5 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 121.6 1/2 Set Collar w/set collar (Qty 1)
- 121.7 4 3/4 Idler Pulley - ABFI-76 (Qty 1)
- 121.8 Idler Bracket (Qty 1)
- 122.2 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 122.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 122.5 .502x.750x1.130 Length Spacer (Qty 1)
- 135 15" Revolt Fuel Line Assembly (Qty 1)
- 135.1 1/4 Fuel Line Hose PRICED/FOOT (Qty 1)
- 135.2 1/4 Fuel Line Clamp (Qty 2)
- 142 Walk Behind Hydro Tank Assembly (Qty 2)
- 142.1 3/8 Clear Hose PRICED PER FOOT (Qty 1)
- 142.2 ZT Hydraulic Tank Cap (Qty 1)
- 142.3 71328-Expansion Tank CZT/ZT (Qty 1)
- 142.4 3/8 Hose Clamp - CTB-16-STFS (Qty 1)
- 142.5 1/2 Hose Clamp (Qty 1)
- 153.1 1/4-20 Cage Nut (Qty 2)
- 153.2 2019 Relay Terminal (Qty 8)
- 182 10mm Damper Ball Stud- (Qty 1)
- 183 3/8-16 x 5 Hex Bolt - Grade 5 (Qty 2)
- 184 3/8 USS Flat Washer Zinc (Qty 2)
- 185 2023 4' & 5' Striping Kit Plate--Orange (Qty 2)
- 186 1/4 USS Flat Washer Zinc (Qty 2)
- 187 24 inch Black Cable - MZ/ZT (Qty 1)
-
121#039-5944-01
Pump Idler Bracket Assembly-ZT/MZ/Compact Outlaw
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
121.1#013-5301-00
5/8-11 Nylon Insert Jam Locknu
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
121.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
121.3#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
121.4122.4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
121.5#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
121.6#025-7036-00
1/2 Set Collar w/set collar
Qty Used: 1Regular price $4.18 USDRegular priceUnit price per
-
121.7#033-6001-00
4 3/4 Idler Pulley - ABFI-76
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
121.8#039-5944-00
Idler Bracket
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
122.2#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
122.5#025-5337-00
.502x.750x1.130 Length Spacer
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
No sequence found for SKU:
15\" Revolt Fuel Line Assembly
Regular price $0.00 USDRegular priceUnit price per
-
135.1#051-8067-00
1/4 Fuel Line Hose PRICED/FOOT
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
135.2#072-8069-00
1/4 Fuel Line Clamp
Qty Used: 2Regular price $0.88 USDRegular priceUnit price per
-
142#067-8090-04
Walk Behind Hydro Tank Assembly
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
142.1#051-8063-00
3/8 Clear Hose PRICED PER FOOT
Qty Used: 1Regular price $2.64 USDRegular priceUnit price per
-
142.2#066-5050-00
ZT Hydraulic Tank Cap
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
142.3#067-8090-00
71328-Expansion Tank CZT/ZT
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
142.4#072-8065-00
3/8 Hose Clamp - CTB-16-STFS
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
142.5#072-8066-00
1/2 Hose Clamp
Qty Used: 1Regular price $0.88 USDRegular priceUnit price per
-
153.1#013-0054-00
1/4-20 Cage Nut
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
153.2#086-1202-19
2019 Relay Terminal
Qty Used: 8Regular price $23.34 USDRegular priceUnit price per
-
182#018-2050-00
10mm Damper Ball Stud-
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
183#018-7055-00
3/8-16 x 5 Hex Bolt - Grade 5
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
184#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
185#026-0307-00
2023 4' & 5' Striping Kit Plate--Orange
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
186#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
187#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
