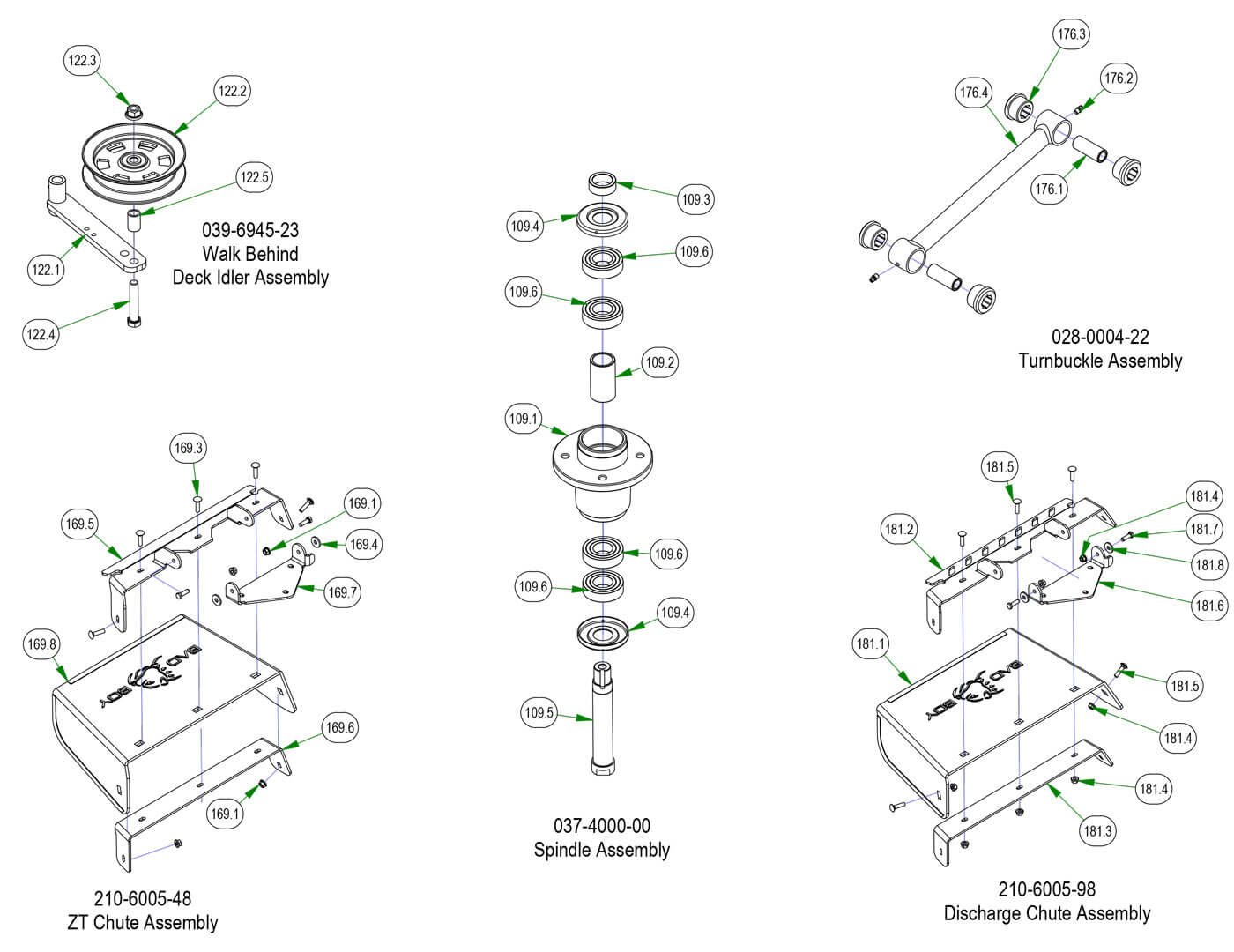

Deck Subassemblies
Parts Index
- 109 Commercial Cast Iron Spindle (Qty 8)
- 109.1 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing (Qty 1)
- 109.2 2015 Spindle Spacer (Qty 1)
- 109.3 Collar Spacer - Top of Spindle (Qty 1)
- 109.4 Dust Cover for 037-8000-00 - (Qty 2)
- 109.5 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 109.6 OBSOLETE USE 037-6029-00 (Qty 4)
- 122 2023 Revolt deck idler assembly (Qty 3)
- 122.1 Idler Bracket (Qty 1)
- 122.2 2017 5" Split Idler Pulley-Tensioner Only (Qty 1)
- 122.3 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 122.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc (Qty 1)
- 122.5 .502x.750x1.130 Length Spacer (Qty 1)
- 169 2013 48" ZT/Chute Assembly (Qty 2)
- 169.1 5/16-18 Nylon Flange Nut (Qty 7)
- 169.2 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 169.3 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 169.4 .360 ID Plastic Washer (Qty 2)
- 169.5 48/52 Discharge Top Bracket (Qty 1)
- 169.6 48/52 Discharge Lower Bracket (Qty 1)
- 169.7 Discharge Chute Hanger-Deck (Qty 1)
- 169.8 Discharge Chute (Rubber Component) (Qty 1)
- 176 Hybrid Turnbuckle (Qty 2)
- 176.1 2018 Maverick Topllink Bushing Sleeve (Qty 2)
- 176.2 1/4-28 Threaded Grease Fitting (Qty 2)
- 176.3 2018 Maverick Topllink Bushing (Qty 4)
- 181 2017 54"/60" ZT/Mav Chute Assembly (Qty 1)
- 181.1 Discharge Chute (Rubber Component) (Qty 1)
- 181.2 60 Discharge Chute Upper (Qty 1)
- 181.3 60 Discharge Lower Bracket (Qty 1)
- 181.4 5/16-18 Nylon Flange Nut (Qty 7)
- 181.5 5/16-18 X 1-1/4 Carriage Bolt (Qty 5)
- 181.6 Discharge Chute Hanger-Deck (Qty 1)
- 181.7 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 2)
- 181.8 .360 ID Plastic Washer (Qty 2)
- 182 10mm Damper Ball Stud- (Qty 1)
- 183 3/8-16 x 5 Hex Bolt - Grade 5 (Qty 2)
- 184 3/8 USS Flat Washer Zinc (Qty 2)
- 185 2023 4' & 5' Striping Kit Plate--Orange (Qty 3)
- 186 1/4 USS Flat Washer Zinc (Qty 2)
- 187 24 inch Black Cable - MZ/ZT (Qty 1)
-
109#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 8Regular price $291.91 USDRegular priceUnit price per
-
109.1#037-4000-01
2017 Outlaw/XP/Diesel Cast Iron Spindle Housing
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
109.2#037-4002-00
2015 Spindle Spacer
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
109.3#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
109.4#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 2Regular price $10.99 USDRegular priceUnit price per
-
109.5#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
109.6#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 4Regular price $39.79 USDRegular priceUnit price per
-
122#039-6945-23
2023 Revolt deck idler assembly
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
122.1#039-6945-00
Idler Bracket
Qty Used: 1Regular price $37.88 USDRegular priceUnit price per
-
122.2#033-8050-00
2017 5" Split Idler Pulley-Tensioner Only
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
122.3#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
122.4#018-6036-00
1/2-13 X 2-3/4 GR 5 Bolt Zinc
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
122.5#025-5337-00
.502x.750x1.130 Length Spacer
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
169#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 2Regular price $169.99 USDRegular priceUnit price per
-
169.1181.4#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 7Regular price $0.79 USDRegular priceUnit price per
-
169.2181.7#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
169.3181.5#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
169.4181.8#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
169.5#039-4870-00
48/52 Discharge Top Bracket
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
169.6#039-4871-00
48/52 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
169.7181.6#206-6017-00
Discharge Chute Hanger-Deck
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
169.8181.1#210-6005-00
Discharge Chute (Rubber Component)
Qty Used: 1Regular price $55.99 USDRegular priceUnit price per
-
176#028-0004-22
Hybrid Turnbuckle/Deck Locator
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
176.1#048-6004-00
2018 Maverick Topllink Bushing Sleeve
Qty Used: 2Regular price $10.55 USDRegular priceUnit price per
-
176.2#024-0001-00
1/4-28 Threaded Grease Fitting
Qty Used: 2Regular price $0.50 USDRegular priceUnit price per
-
176.3#048-6005-00
2018 Maverick Topllink Bushing
Qty Used: 4Regular price $29.99 USDRegular priceUnit price per
-
181#210-6005-98
2017 54"/60" ZT/Mav Chute Assembly
Qty Used: 1Regular price $149.99 USDRegular priceUnit price per
-
181.2#039-4864-00
60 Discharge Chute Upper
Qty Used: 1Regular price $39.74 USDRegular priceUnit price per
-
181.3#039-4863-00
60 Discharge Lower Bracket
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
182#018-2050-00
10mm Damper Ball Stud-
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
183#018-7055-00
3/8-16 x 5 Hex Bolt - Grade 5
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
184#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
185#026-0307-00
2023 4' & 5' Striping Kit Plate--Orange
Qty Used: 3Regular price $9.99 USDRegular priceUnit price per
-
186#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
187#064-0030-00
24 inch Black Cable - MZ/ZT
Qty Used: 1Regular price $17.50 USDRegular priceUnit price per
