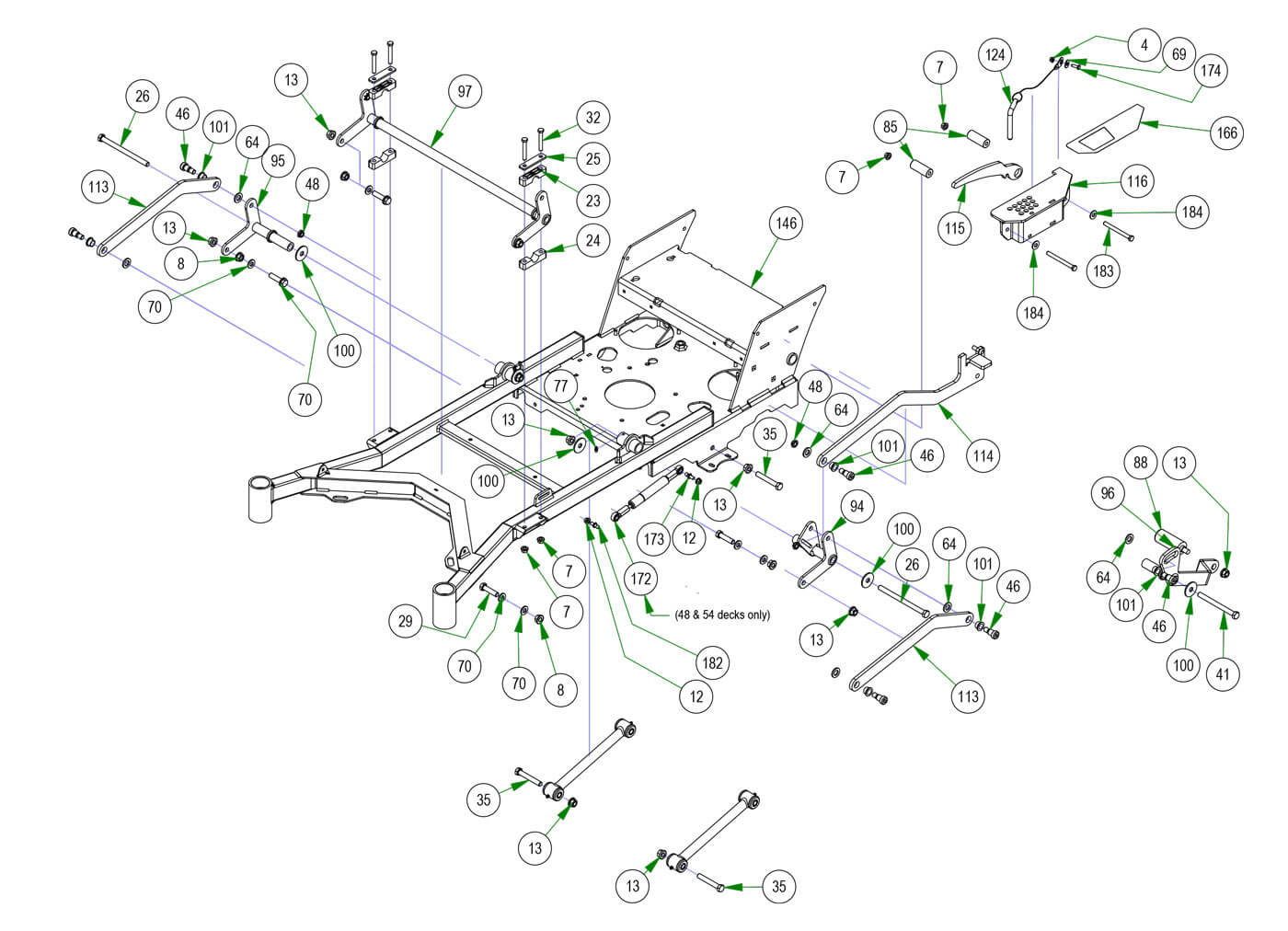

Deck Height Linkage
Parts Index
- 4 1/4-20 Nylon Insert Flange Nut (Qty 1)
- 7 3/8 Nylock Flange Nut (Qty 6)
- 8 1/2-13 Hex Fange Nuts Zinc w/ (Qty 8)
- 12 5/16-18 Nylon Flange Nut (Qty 2)
- 13 1/2-13 Nylon Insert Flange Nut (Qty 16)
- 23 2017 Magnum Pillow Block-Male (Qty 3)
- 24 2017 Magnum Pillow Block-Female (Qty 2)
- 25 2017 Magnum Pillow Block-Metal Plate (Qty 2)
- 26 1/2-13 X 7 Hex Bolt - Grade 5 (Qty 2)
- 29 1/2-13 x 2 Grade 8 Hex Bolt (Qty 8)
- 32 3/8x2 1/2" Hex Bolt (Qty 4)
- 35 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 4)
- 41 1/2-13x5 1/2 Hex Bolt Grade 5 (Qty 1)
- 46 5/8 x 5/8 Shoulder Bolt (Qty 6)
- 48 1/2-13 Nylon Insert Jam Locknut (Qty 6)
- 64 .630 ID X 1.122 OD X .142 THK (Qty 6)
- 69 5/16 USS Flat Washer Zinc (Qty 1)
- 70 .505 ID X 1 OD X .128 THK Washer (Qty 16)
- 77 1/8" Drive-in Grease Fitting No Ball (Qty 2)
- 85 Stand On Spacer 2.5" With Shoulder (Qty 2)
- 88 Knurled Foot Pedal (Qty 1)
- 100 Snubbing Washer-032-4050-00 (Qty 6)
- 101 Bronze Bushing - SF-2024-8 (Qty 6)
- 124 2023 Revolt Deck Height Pin (Qty 1)
- 172 Dampener (200lbs) (Qty 1)
- 173 10mm Ball Stud (Long Thread) (Qty 1)
- 174 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 1)
- 176 Hybrid Turnbuckle (Qty 2)
- 182 10mm Damper Ball Stud- (Qty 1)
- 183 3/8-16 x 5 Hex Bolt - Grade 5 (Qty 2)
- 184 3/8 USS Flat Washer Zinc (Qty 2)
-
4#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
7#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 6Regular price $1.49 USDRegular priceUnit price per
-
8#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
12#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
13#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 16Regular price $1.39 USDRegular priceUnit price per
-
23#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 3Regular price $19.89 USDRegular priceUnit price per
-
24#017-9078-00
2017 Magnum Pillow Block-Female
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-
25#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-
26#018-0004-00
1/2-13 X 7 Hex Bolt - Grade 5
Qty Used: 2Regular price $4.99 USDRegular priceUnit price per
-
29#018-0022-00
1/2-13 x 2 Grade 8 Hex Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
32#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
35#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
41#018-1090-00
1/2-13x5 1/2 Hex Bolt Grade 5
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
46#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 6Regular price $14.59 USDRegular priceUnit price per
-
48#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 6Regular price $1.59 USDRegular priceUnit price per
-
64#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
69#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
70#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 16Regular price $0.69 USDRegular priceUnit price per
-
77#024-3050-00
1/4" Drive-in Grease Fitting
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
85#025-0081-00
Stand On Spacer 2.5" With Shoulder
Qty Used: 2Regular price $13.99 USDRegular priceUnit price per
-
88#026-0026-00
Knurled Foot Pedal
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
100#032-4051-00
Snubbing Washer-032-4050-00
Qty Used: 6Regular price $15.91 USDRegular priceUnit price per
-
101#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 6Regular price $4.37 USDRegular priceUnit price per
-
124#040-4004-00
2023 Revolt Deck Height Pin
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
172#087-5400-00
Damper (200lbs)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
173#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
174#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
176#028-0004-22
Hybrid Turnbuckle/Deck Locator
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
182#018-2050-00
10mm Damper Ball Stud-
Qty Used: 1Regular price $1.99 USDRegular priceUnit price per
-
183#018-7055-00
3/8-16 x 5 Hex Bolt - Grade 5
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
184#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
