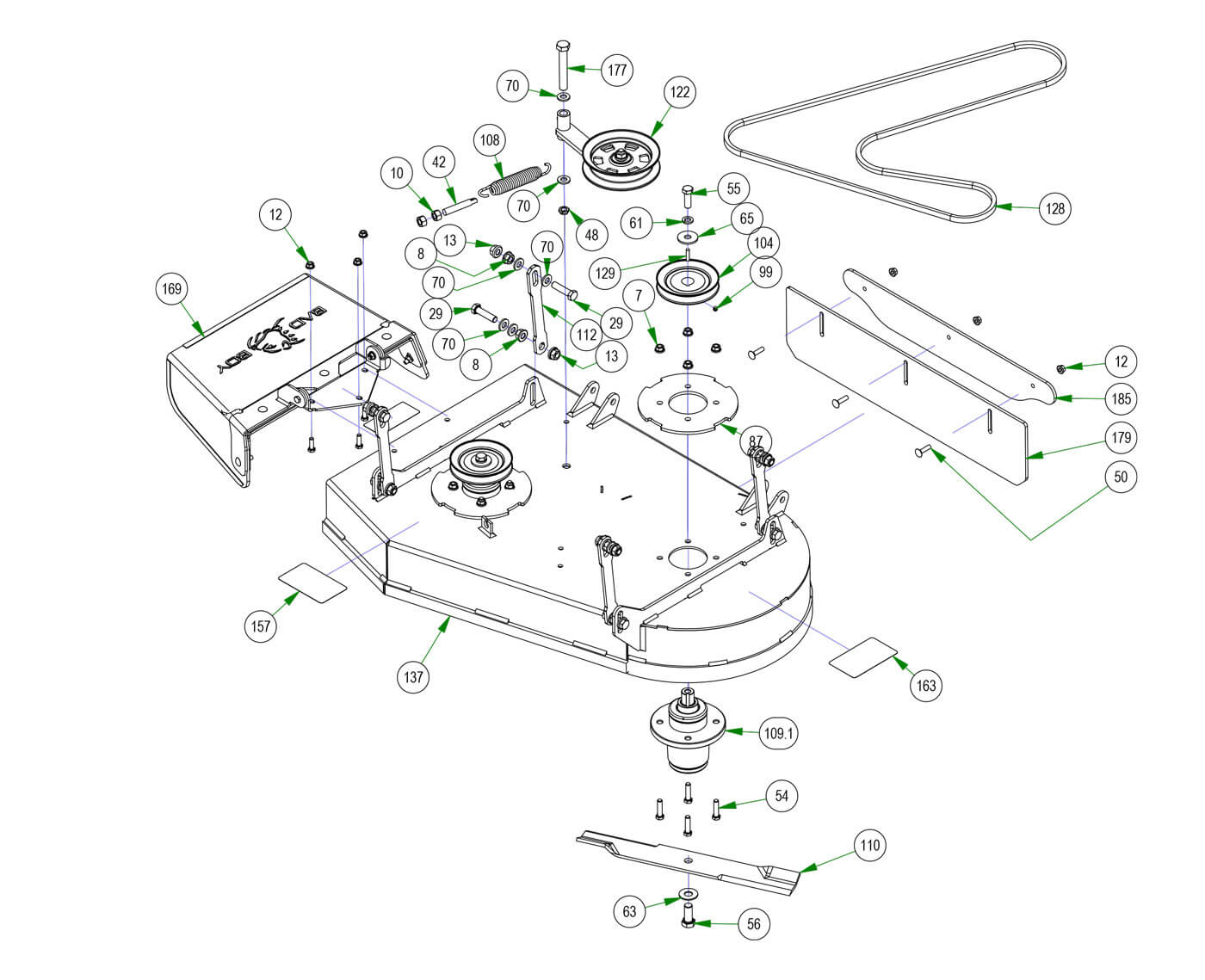

36" Deck Assembly
Parts Index
- 7 3/8 Nylock Flange Nut (Qty 12)
- 8 1/2-13 Hex Fange Nuts Zinc w/ (Qty 8)
- 10 1/2-13 Hex Nuts Zinc (Qty 2)
- 12 5/16-18 Nylon Flange Nut (Qty 6)
- 13 1/2-13 Nylon Insert Flange Nut (Qty 8)
- 29 1/2-13 x 2 Grade 8 Hex Bolt (Qty 8)
- 42 All Thread (Qty 1)
- 43 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 3)
- 48 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 50 5/16-18 X 1-1/4 Carriage Bolt (Qty 3)
- 54 3/8 x 1 1/2 Bolt (Qty 8)
- 55 1/2-20 X 1-1/2 GR 5 Bolts Zinc (Qty 3)
- 56 5/8-18 X 1-1/2 GR 8 Hex Bolts (Qty 2)
- 61 1/2 Lockwasher Zinc (Qty 3)
- 63 5/8 Flat Washer (Qty 2)
- 65 1/2 Belleville Washer #K2000-G (Qty 3)
- 70 .505 ID X 1 OD X .128 THK Washer (Qty 18)
- 87 Deck Spindle Support Plate 60"--Orange (Qty 2)
- 99 5/16-24 x 1/4 Set Screw (Qty 2)
- 104 5" Spindle Deck Pulley - DB-80 (Qty 2)
- 108 2015 Deck Idler Spring (Qty 1)
- 109 Commercial Cast Iron Spindle (Qty 1)
- 109.1 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing (Qty 1)
- 109.2 2015 Spindle Spacer (Qty 1)
- 109.3 Collar Spacer - Top of Spindle (Qty 1)
- 190.4 Dust Cover for 037-8000-00 - (Qty 2)
- 109.5 Short Spindle Shaft for Locking Collar- No Grooved (Qty 1)
- 109.6 OBSOLETE USE 037-6029-00 (Qty 4)
- 110 54" Blade for Avenger/ZT/Mav/Outlaw/Revolt (Qty 2)
- 122 2023 Revolt deck idler assembly (Qty 1)
- 128 2020 36" Revolt / 2020 36" Walk Behind Deck Belt (Qty 1)
- 129 1/4 x 1 Square Key (Qty 2)
- 137 2017 Walk Behind 36" Deck Belt Route (Qty 1)
- 157 Danger Decal-Spindle/Discharge (Qty 1)
- 161 2018 36" Deck Decal (Qty 1)
- 163 2013 48" ZT/Chute Assembly (Qty 1)
- 169 2013 48" ZT/Chute Assembly (Qty 1)
- 177 5/8-11 X 4 GR 8 Hex Bolts Zinc (Qty 1)
- 179 2023 ZT Stripe Kit Rubber (Qty 1)
- 185 2023 4' & 5' Striping Kit Plate--Orange (Qty 1)
-
7#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
8#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
10#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
12#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 6Regular price $0.79 USDRegular priceUnit price per
-
13#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 8Regular price $1.39 USDRegular priceUnit price per
-
29#018-0022-00
1/2-13 x 2 Grade 8 Hex Bolt
Qty Used: 8Regular price $2.69 USDRegular priceUnit price per
-
42#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
43#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
48#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
50#018-4703-00
5/16-18 X 1-1/4 Carriage Bolt
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
54#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
55#018-6019-00
1/2-20 X 1-1/2 GR 5 Bolts Zinc
Qty Used: 3Regular price $1.19 USDRegular priceUnit price per
-
56#018-6020-00
5/8-18 X 1-1/2 GR 8 Hex Bolts
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
61#019-5007-00
1/2 Lockwasher Zinc
Qty Used: 3Regular price $0.00 USDRegular priceUnit price per
-
63#019-5038-00
5/8 Flat Washer
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
65#019-6020-00
1/2 Belleville Washer #K2000-G
Qty Used: 3Regular price $4.69 USDRegular priceUnit price per
-
70#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 18Regular price $0.69 USDRegular priceUnit price per
-
87#026-0025-00
Deck Spindle Support Plate 60\"--Orange
Qty Used: 2Regular price $13.26 USDRegular priceUnit price per
-
99#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
104#033-6003-00
5" Spindle Deck Pulley - DB-80
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
108#034-2020-00
2015 Deck Idler Spring
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
109#037-4000-00
Commercial Cast Iron Spindle
Qty Used: 1Regular price $291.91 USDRegular priceUnit price per
-
109.1#037-4000-01
2017 Outlaw/XP/Diesel Cast Iron Spindle Housing
Qty Used: 1Regular price $119.36 USDRegular priceUnit price per
-
109.2#037-4002-00
2015 Spindle Spacer
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
109.3#037-9050-00
Collar Spacer - Top of Spindle
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
190.4#037-8002-00
Dust Cover for 037-8000-00
Qty Used: 2Regular price $10.99 USDRegular priceUnit price per
-
109.5#037-6026-00
Short Spindle Shaft w/Locking Collar- No Grooved
Qty Used: 1Regular price $78.29 USDRegular priceUnit price per
-
109.6#037-6023-00
OBSOLETE USE 037-6029-00
Qty Used: 4Regular price $39.79 USDRegular priceUnit price per
-
110#038-0001-00
54\" Blade for Avenger/ZT/Mav/Outlaw/Revolt
Qty Used: 2Regular price $21.16 USDRegular priceUnit price per
-
122#039-6945-23
2023 Revolt deck idler assembly
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
128#041-8054-00
2020 36" Revolt / 2020 36" Walk Behind Deck Belt
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
129#042-6030-00
1/4 x 1 Square Key
Qty Used: 2Regular price $4.37 USDRegular priceUnit price per
-
137#091-0418-00
2017 Walk Behind 36" Deck Belt Route
Qty Used: 1Regular price $3.97 USDRegular priceUnit price per
-
157#091-3012-00
Danger Decal-Spindle/Discharge
Qty Used: 1Regular price $2.91 USDRegular priceUnit price per
-
161#091-3601-18
2018 36" Deck Decal
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
163169#210-6005-48
2013 48" ZT/Chute Assembly
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
177#018-5311-00
5/8-11 X 4 GR 8 Hex Bolts Zinc
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
179#084-5006-00
2023 ZT Stripe Kit Rubber
Qty Used: 1Regular price $53.06 USDRegular priceUnit price per
-
185#026-0307-00
2023 4' & 5' Striping Kit Plate--Orange
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
