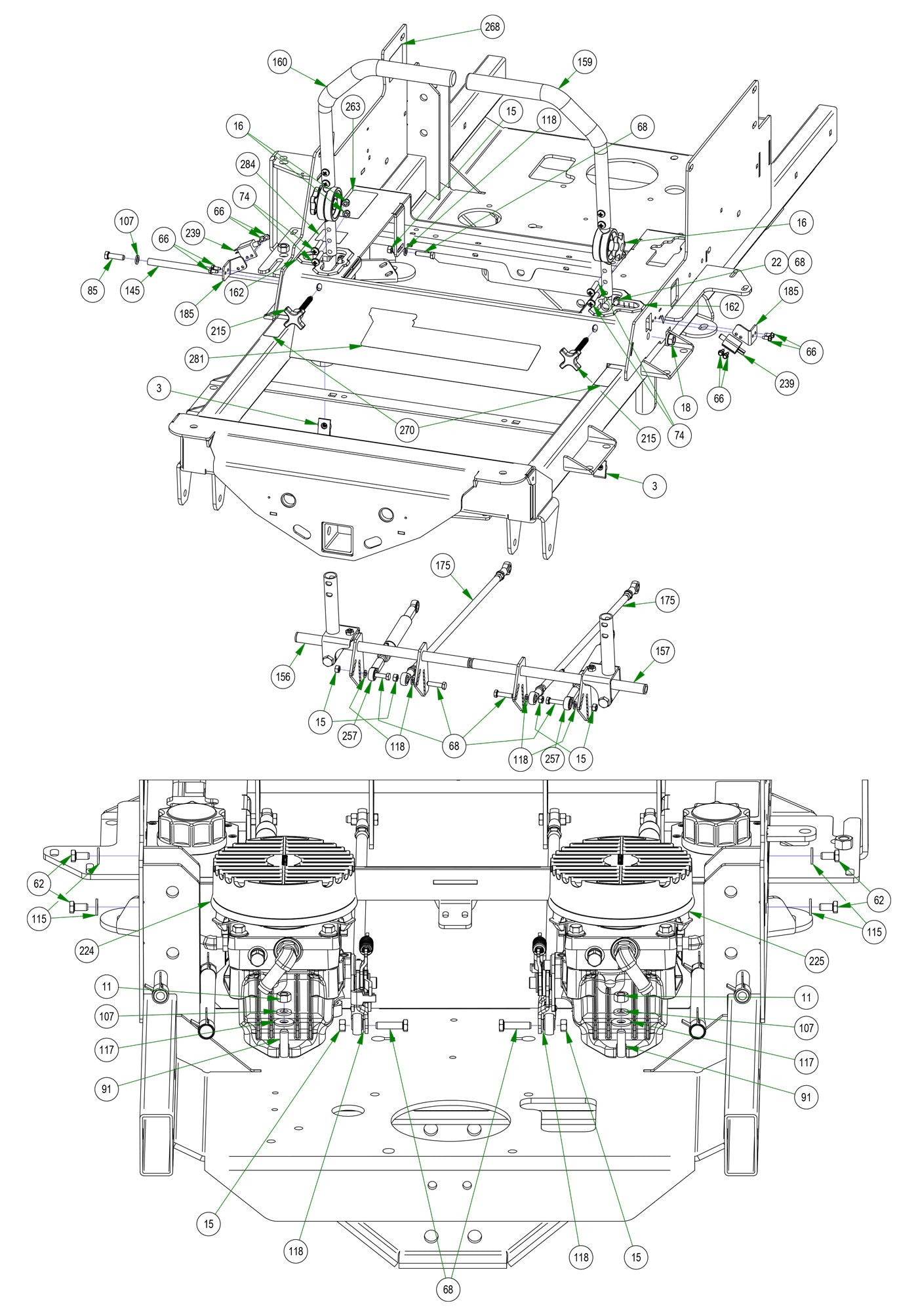

Drive Arms Assembly
Parts Index
- 3 Extruded Nut 3/8"-16 3/4" Hole Center With Patch (Qty 2)
- 11 3/8-16 Hex Nuts Zinc (Qty 4)
- 15 5/16-18 Hex Nuts Zinc (Qty 8)
- 16 5/16-18 Nylon Insert Locknut Z (Qty 4)
- 18 1/2-13 Nylon Insert Flange Nut (Qty 1)
- 22 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 62 5/16-18 x 5/8 Hex Bolt (Qty 4)
- 66 12-24 x 1/2 HWH Bolt (Qty 8)
- 68 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 10)
- 74 5/16-18 x 1 3/8" Button Head Torx Drive Bolt (Qty 4)
- 85 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 91 3/8 x 1 1/2 Bolt (Qty 4)
- 107 3/8 Lockwasher Zinc (Qty 5)
- 115 1/4 USS Flat Washer Zinc (Qty 4)
- 117 5/16 USS Flat Washer Zinc (Qty 4)
- 118 5/16 Lock washer Zinc (Qty 8)
- 145 2019 Steering Actuator Rod (Qty 1)
- 156 2019 R Series RH Arm Rod Assembly (Qty 1)
- 157 2019 R Series LH Arm Rod Assembly (Qty 1)
- 159 Black Steering Arm Kit LH (Qty 1)
- 160 Black Steering Arm Kit RH (Qty 1)
- 162 Drive Arm Bushing (Qty 2)
- 175 2019 Rogue Push Rod Assembly (Qty 2)
- 185 2019 Arm Switch Bracket--Plated (Qty 2)
- 215 Star Knob 3/8- 16 x3" (Qty 2)
- 239 Safety Switch (Qty 2)
- 257 Damper (Heim Ends) (Qty 2)
- 224 2021 LH Rogue Hydro Tank Line Assy (Qty 1)
- 225 2021 RH Rogue Hydro Tank Line Assy (Qty 1)
- 235 2023 Rogue Frame--Orange (Qty 1)
- 263 2023 EPA Build Date Punch Decal (Qty 1)
- 268 Yellow Hydraulic Decal (Qty 2)
- 270 R-Series LH/RH Steering Control Decal (Qty 1)
- 281 2019 Rogue Cooler Cover Decal (Qty 1)
- 284 2019 Deck Release Decal (Qty 1)
-
3#013-0021-00
Extruded Nut 3/8"-16 3/4" Hole Center With Patch
Qty Used: 2Regular price $2.99 USDRegular priceUnit price per
-
11#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 4Regular price $0.00 USDRegular priceUnit price per
-
15#013-8043-00
5/16-18 Hex Nuts Zinc
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
16#013-8047-00
5/16-18 Nylon Insert Locknut Z
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
18#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
22#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
62#018-0068-00
5/16-18 x 5/8 Hex Bolt
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
66#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 8Regular price $1.99 USDRegular priceUnit price per
-
68#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 10Regular price $0.79 USDRegular priceUnit price per
-
74#018-2020-18
5/16-18 x 1 3/8\" Button Head Torx Drive Bolt
Qty Used: 4Regular price $1.49 USDRegular priceUnit price per
-
85#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
91#018-6012-00
3/8 x 1 1/2 Bolt
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
107#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 5Regular price $0.00 USDRegular priceUnit price per
-
115#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
117#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
118#019-8051-00
5/16 Lock washer Zinc
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
145#028-0051-00
2019 Steering Actuator Rod
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
156#031-0030-19
2019 R Series RH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
157#031-0031-19
2019 R Series LH Arm Rod Assembly
Qty Used: 1Regular price $79.60 USDRegular priceUnit price per
-
159#031-9005-70
Black Steering Arm Kit LH
Qty Used: 1Regular price $132.68 USDRegular priceUnit price per
-
160#031-9055-70
Black Steering Arm Kit RH
Qty Used: 1Regular price $115.31 USDRegular priceUnit price per
-
162#032-0002-00
Drive Arm Bushing
Qty Used: 2Regular price $14.53 USDRegular priceUnit price per
-
175#035-0004-00
2019 Rogue Push Rod Assembly
Qty Used: 2Regular price $39.79 USDRegular priceUnit price per
-
185#039-2160-00
2019 Arm Switch Bracket--Plated
Qty Used: 2Regular price $12.99 USDRegular priceUnit price per
-
215#057-5800-00
Star Knob 3/8- 16 x3"
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
239#077-8073-00
Safety Switch
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
257#087-0002-00
Damper (Heim Ends)
Qty Used: 2Regular price $58.37 USDRegular priceUnit price per
-
224#067-8053-21
2021 LH Rogue Hydro Tank Line Assy
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
225#067-8054-21
2021 RH Rogue Hydro Tank Line Assy
Qty Used: 1Regular price $599.99 USDRegular priceUnit price per
-
235#070-2305-00
2023 Rogue Frame--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
263#091-0015-23
2023 EPA Build Date Punch Decal
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
268#091-1020-00
Yellow Hydraulic Decal
Qty Used: 2Regular price $1.46 USDRegular priceUnit price per
-
270#091-1114-00
2018 LH/RH Steering Control Decal Roll
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
281#091-4028-00
2019 Rogue Cooler Cover Decal
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
284#091-4037-00
2019 Deck Release Decal
Qty Used: 1Regular price $7.28 USDRegular priceUnit price per
