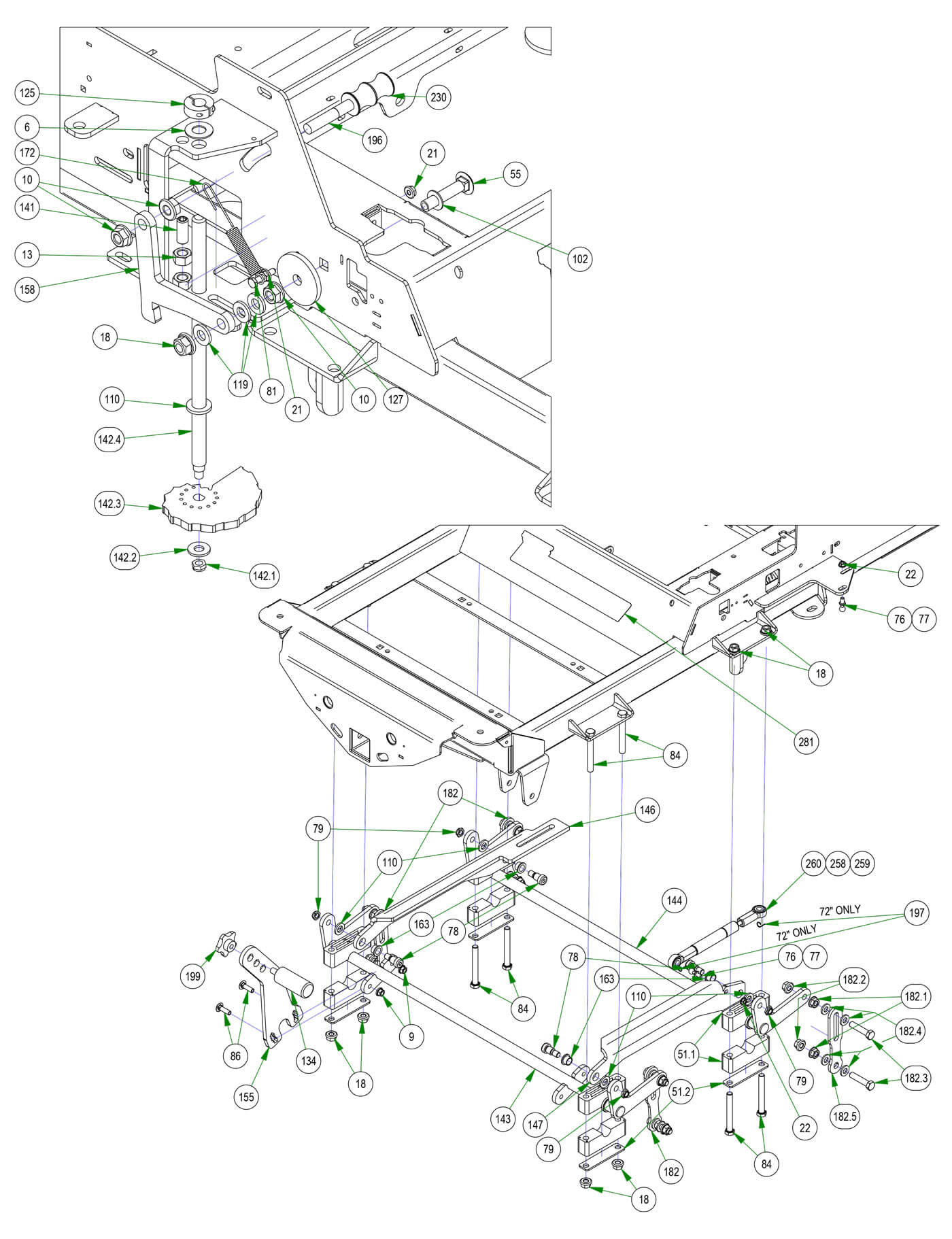

Deck Height Control
Parts Index
- 6 .630 ID x 1.130 OD x .062 THK F/W Nylon Black (Qty 1)
- 9 3/8 Nylock Flange Nut (Qty 2)
- 10 1/2-13 Hex Fange Nuts Zinc w/ (Qty 3)
- 13 1/2-13 Hex Nuts Zinc (Qty 1)
- 18 1/2-13 Nylon Insert Flange Nut (Qty 9)
- 21 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 22 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 51 2015 Outlaw Pillow Block (Qty 4)
- 51.1 Two Piece Pillow Block-Male (Qty 2)
- 51.2 Two Piece Pillow Block-Plate (Qty 1)
- 55 2 1/2 X 1/2 Carriage Bolt (Qty 1)
- 76 13mm Ball Stud (Qty 2)
- 77 10mm Ball Stud (Long Thread) (Qty 2)
- 78 5/8 x 5/8 Shoulder Bolt (Qty 4)
- 79 1/2-13 Nylon Insert Jam Locknut (Qty 4)
- 81 1/4-20 X 1-1/4 GR 5 Hex Bolt (Qty 1)
- 84 1/2-13 X 4 GR 8 Hex Bolt Yellow (Qty 8)
- 86 3/8-16 X 1-1/4 Carriage Bolt (Qty 2)
- 102 .517 Square Hole Round Washer (Qty 1)
- 110 .630 ID X 1.122 OD X .142 THK (Qty 5)
- 119 .505 ID X 1 OD X .128 THK Washer (Qty 3)
- 125 Split Collar (Qty 1)
- 127 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 134 Knurled Foot Pedal (Qty 1)
- 141 Deck Height Cam Plunger (Qty 1)
- 142 R-Series Deck Height Dial Rod Assy (Qty 1)
- 142.1 3/8-24 Nylon Insert Jam Locknu (Qty 1)
- 142.2 3/8 USS Flat Washer Zinc (Qty 1)
- 142.3 Deck Height Cam Plate (Qty 1)
- 142.4 2019 "R" Series Dial Rod (Qty 1)
- 143 Actuator Bar (Front) (Qty 1)
- 144 Actuator Bar (Rear) (Qty 1)
- 146 2019 Actuator Linkage-Right-Black (Qty 1)
- 155 Foot Lift Upright Lever--Orange (Qty 1)
- 158 Deck Travel Lock Lever--Plated (Qty 1)
- 163 Bronze Bushing - SF-2024-8 (Qty 4)
- 172 Brake Spring (Qty 1)
- 182 Outlaw/Extreme/XP Deck Hanger Assy (Qty 4)
- 182.1 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 182.2 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 182.3 1/2-13 X 2-1/4 GR 5 Hex Bolts (Qty 2)
- 182.4 .505 ID X 1 OD X .128 THK Washer (Qty 4)
- 182.5 OBSOLETE USE 039-2125-17 (Qty 1)
- 196 Seat Bracket Pin - 2008 Models (Qty 1)
- 197 Security Ring - PC744 For 72" Deck Dampener (Qty 2)
- 199 Star Knob 1/2-13 (Qty 1)
- 230 Grip (Travel Lock) (Qty 1)
- 235 2023 Rogue Frame--Orange (Qty 1)
- 258 Dampener (200lbs) (Qty 1)
- 259 Dampener (250lbs) (Qty 1)
- 260 Dampener (300lbs) (Qty 1)
- 281 2019 Rogue Cooler Cover Decal (Qty 1)
-
6#013-0080-00
.630 ID x 1.130 OD x .062 THK F/W Nylon Black
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
10182.1#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
13#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
18182.2#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
21#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
22#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
51#017-9075-00
2015 Outlaw Pillow Block
Qty Used: 4Regular price $21.88 USDRegular priceUnit price per
-
51.1#017-9000-00
Two Piece Pillow Block-Male
Qty Used: 2Regular price $9.99 USDRegular priceUnit price per
-
51.2#017-9025-00
Two Piece Pillow Block-Plate
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
55#018-0043-00
2 1/2 X 1/2 Carriage Bolt
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
76#018-2049-00
13mm Ball Stud
Qty Used: 2Regular price $4.39 USDRegular priceUnit price per
-
77#018-2055-00
10mm Ball Stud (Long Thread)
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
78#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 4Regular price $14.59 USDRegular priceUnit price per
-
79#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 4Regular price $1.59 USDRegular priceUnit price per
-
81#018-4702-00
1/4-20 X 1-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
84#018-5019-00
1/2-13 X 4 GR 8 Hex Bolt Yellow
Qty Used: 8Regular price $3.99 USDRegular priceUnit price per
-
86#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 2Regular price $0.99 USDRegular priceUnit price per
-
102#019-0007-00
.517 Square Hole Round Washer
Qty Used: 1Regular price $1.09 USDRegular priceUnit price per
-
110#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 5Regular price $0.79 USDRegular priceUnit price per
-
119182.4#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
125#025-0002-00
Split Collar
Qty Used: 1Regular price $10.20 USDRegular priceUnit price per
-
127#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
134#026-0026-00
Knurled Foot Pedal
Qty Used: 1Regular price $36.48 USDRegular priceUnit price per
-
141#028-0008-00
Deck Height Cam Plunger
Qty Used: 1Regular price $29.13 USDRegular priceUnit price per
-
142#028-0015-19
2019 Outlaw Gen2 Deck Height Dial Rod Assy
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
142.1#018-4011-00
3/8-24 Nylon Insert Jam Locknu
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
142.2#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
142.3#026-1101-00
Deck Height Cam Plate
Qty Used: 1Regular price $14.53 USDRegular priceUnit price per
-
142.4#028-0015-00
2019 "R" Series Dial Rod
Qty Used: 1Regular price $16.49 USDRegular priceUnit price per
-
143#028-0026-00
Actuator Bar (Front)
Qty Used: 1Regular price $119.41 USDRegular priceUnit price per
-
144#028-0027-00
Actuator Bar (Rear)
Qty Used: 1Regular price $76.99 USDRegular priceUnit price per
-
146#028-6075-22
2019 Actuator Linkage-Right-Black
Qty Used: 1Regular price $40.99 USDRegular priceUnit price per
-
155#031-0003-00
Foot Lift Upright Lever--Orange
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
-
158#031-0125-00
Deck Travel Lock Lever--Plated
Qty Used: 1Regular price $26.53 USDRegular priceUnit price per
-
163#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 4Regular price $4.37 USDRegular priceUnit price per
-
172#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
182#039-2125-17
Outlaw/Extreme/XP Deck Hanger Assy
Qty Used: 4Regular price $14.58 USDRegular priceUnit price per
-
182.3#018-6037-00
1/2-13 X 2-1/4 GR 5 Hex Bolts
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
182.5#039-2125-00
OBSOLETE USE 039-2125-17
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
196#044-4000-00
Seat Bracket Pin - 2008 Models
Qty Used: 1Regular price $6.59 USDRegular priceUnit price per
-
197#044-6050-00
Security Ring - PC744
Qty Used: 2Regular price $2.64 USDRegular priceUnit price per
-
199#045-6044-00
Star Knob 1/2-13
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
230#069-4011-00
Grip (Travel Lock)
Qty Used: 1Regular price $7.99 USDRegular priceUnit price per
-
235#070-2305-00
2023 Rogue Frame--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
258#087-5400-00
Damper (200lbs)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
259#087-6100-00
Dampener (250lbs)
Qty Used: 1Regular price $72.91 USDRegular priceUnit price per
-
260#087-7200-00
Damper (300lbs)
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
281#091-4028-00
2019 Rogue Cooler Cover Decal
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
