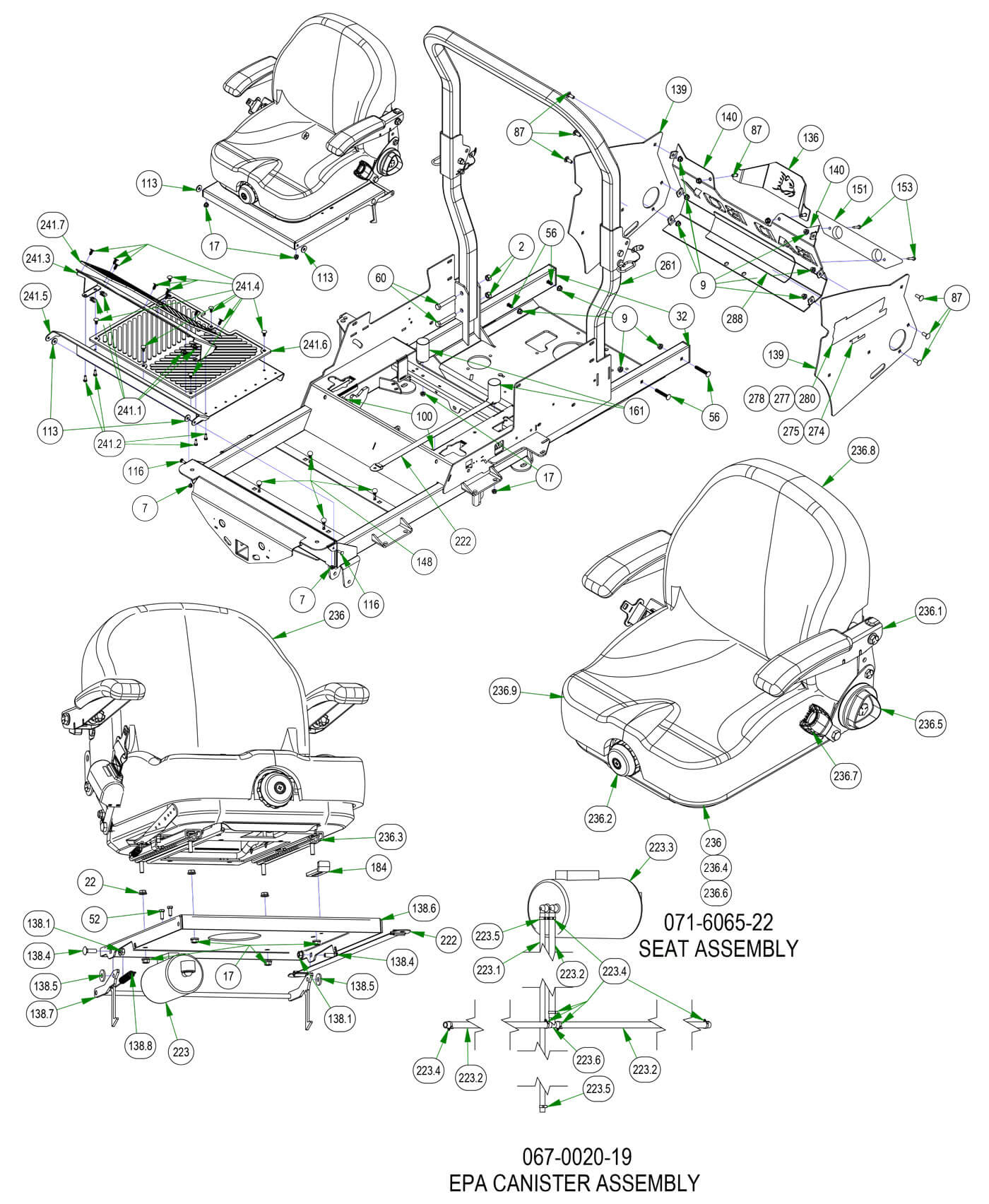

Covers & Seat
Parts Index
- 2 1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC (Qty 4)
- 7 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 9 3/8 Nylock Flange Nut (Qty 12)
- 17 5/16-18 Nylon Flange Nut (Qty 8)
- 22 5/16-18 Hex Flange Nuts Zinc w (Qty 3)
- 32 1 1/2x 3 Frame Plug (Qty 2)
- 52 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 56 3/8 x 2 1/2 Carriage Bolt (Qty 4)
- 60 1/2-13 X 3.25 Hex Bolt-Grade 5 (Qty 4)
- 87 3/8 x 1 Carriage Bolt (Qty 8)
- 100 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 113 .360 ID Plastic Washer (Qty 4)
- 116 1/4 x 3/4 Carriage Bolt (Qty 2)
- 136 Kohler 980 Engine Shield--Orange (Qty 1)
- 138 R-Series Seat Plate Assembly (Qty 1)
- 138.1 5/16-18 Nylon Flange Nut (Qty 2)
- 138.4 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 138.5 .360 ID Plastic Washer (Qty 2)
- 138.6 Seat Plate--Orange (Qty 1)
- 138.7 Seat Latch Rod (Qty 1)
- 138.8 Brake Spring (Qty 1)
- 139 2019 Vertical Suspension Rear Cover Side--Orange (Qty 2)
- 140 2019 Vertical Rear Cover Tailgate-Black (Qty 1)
- 148 2023 Floor Board Rubber Bumpers (Qty 4)
- 151 Bumper (Qty 1)
- 153 14 X 1-1/2 HWA A T/S Zinc (Qty 2)
- 161 Bumper (Seat) (Qty 2)
- 184 Seat Stop--Plated (Qty 1)
- 222 Seat Strap with Buckles (Qty 1)
- 223 2019 R-Series EPA Cannister Assembly (Qty 1)
- 223.1 66" 3/16 Vinyl EPA Line (Qty 1)
- 223.2 38" 1/4 Vinyl Tubing (Qty 3)
- 223.3 Carbon Canister ZT,CZT,Outlaw (Qty 1)
- 223.4 MZ Tank Hose Clamp 1/4 Vinyl (Qty 6)
- 223.5 3/16" Vinyl Hose Clamp (Qty 2)
- 223.6 Fuel Line T (Qty 1)
- 235 2023 Rogue Frame--Orange (Qty 1)
- 236 2022 Seats Inc Suspension Seat with seatbelt (Qty 1)
- 236.1 Arm Kit for 071-6065-00/071-6065-22 (Qty 1)
- 236.2 Weight Adjustment Knob for 071-6065-00/071-6065-22 (Qty 1)
- 236.3 SEAT RAILS for 071-6065-00/071-6065-22 (Qty 1)
- 236.4 Seat Switch for 071-6065-00/071-6065-22 (Qty 1)
- 236.5 Recliner Adjust Knob for 071-6065-00/71-6065-22 (Qty 1)
- 236.6 Bellows w/Hardware for 071-6065-22 (Qty 1)
- 236.7 OBSOLETE USE 071-6063-00 (Qty 1)
- 236.8 Back Cover for I3M - Recl - Logos for 071-6065-22 (Qty 1)
- 236.9 Cushion Cover Kit for I3M - Logo for 071-6065-22 (Qty 1)
- 241.1 1/4-20 Cage Nut (Qty 4)
- 241.2 1/4-20 X 3/4 GR 5 Hex Bolts (Qty 4)
- 241.3 Adjustable Foot Plate--Orange (Qty 1)
- 241.4 Ratchet Fastener - Floorboard (Qty 14)
- 241.5 2019 Outlaw Floorboard--Orange (Qty 1)
- 241.6 Mat (Floor) (Qty 1)
- 241.7 Mat (Foot Plate) (Qty 1)
- 261 2019 2x2 R SERIES Folding Rops (Qty 1)
- 274 2022 Powered by Kawi Decal (Qty 2)
- 275 2022 Powered By Kohler Decal (Qty 2)
- 277 2019 Rogue 852cc Backplate Cluster (Qty 1)
- 278 2019 Rogue 999cc Backplate Cluster (Qty 1)
- 288 Heat Shield (Fiberglass Adhesive) (Qty 1)
-
2#013-0005-00
1/2-13 hex 2-WAY REV CNT L/N (GR.B) ZC
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
7#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
9#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
17138.1#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
22#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 3Regular price $0.69 USDRegular priceUnit price per
-
32#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
52#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
56#018-0044-00
3/8 x 2 1/2 Carriage Bolt
Qty Used: 4Regular price $2.69 USDRegular priceUnit price per
-
60#018-0050-00
1/2-13 X 3.25 Hex Bolt-Grade 5
Qty Used: 4Regular price $1.19 USDRegular priceUnit price per
-
87#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 8Regular price $0.69 USDRegular priceUnit price per
-
100138.4#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
113138.5#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
116#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
136#026-0308-00
Kohler 980 Engine Shield--Orange
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
138#026-2019-21
R-Series Seat Plate Assembly
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
138.6#026-2019-00
Seat Plate--Orange
Qty Used: 1Regular price $92.82 USDRegular priceUnit price per
-
138.7#028-0090-00
Seat Latch Rod
Qty Used: 1Regular price $36.42 USDRegular priceUnit price per
-
138.8#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
139#026-2209-00
2019 Vertical Suspension Rear Cover Side--Orange
Qty Used: 2Regular price $225.56 USDRegular priceUnit price per
-
140#026-2221-22
2019 Vertical Rear Cover Tailgate-Black
Qty Used: 1Regular price $169.99 USDRegular priceUnit price per
-
148#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 4Regular price $1.09 USDRegular priceUnit price per
-
-
153#030-7039-00
14 X 1-1/2 HWA A T/S Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
161#032-0001-00
Bumper (Seat)
Qty Used: 2Regular price $21.88 USDRegular priceUnit price per
-
184#039-2156-00
Seat stop--Plated
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
222#064-8083-00
Seat Strap with Buckles
Qty Used: 1Regular price $22.99 USDRegular priceUnit price per
-
223#067-0020-19
2019 Outlaw EPA Cannister Assembly
Qty Used: 1Regular price $39.95 USDRegular priceUnit price per
-
223.1#051-2025-66
66" 3/16 Vinyl EPA Line
Qty Used: 1Regular price $12.39 USDRegular priceUnit price per
-
223.2#051-8072-38
38" 1/4 Vinyl Tubing
Qty Used: 3Regular price $26.53 USDRegular priceUnit price per
-
223.3#067-0020-00
Carbon Canister ZT,CZT,Outlaw
Qty Used: 1Regular price $58.32 USDRegular priceUnit price per
-
223.4#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 6Regular price $1.45 USDRegular priceUnit price per
-
223.5#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
223.6#073-8068-00
Fuel Line T
Qty Used: 1Regular price $8.82 USDRegular priceUnit price per
-
235#070-2305-00
2023 Rogue Frame--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
236#071-6065-22
2022 Seats Inc Suspension Seat with seatbelt
Qty Used: 1Regular price $829.99 USDRegular priceUnit price per
-
236.1#071-6065-04
Arm Kit for 071-6065-00/071-6065-22
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
236.2#071-6065-05
Weight Adjustment Knob for 071-6065-00/071-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-

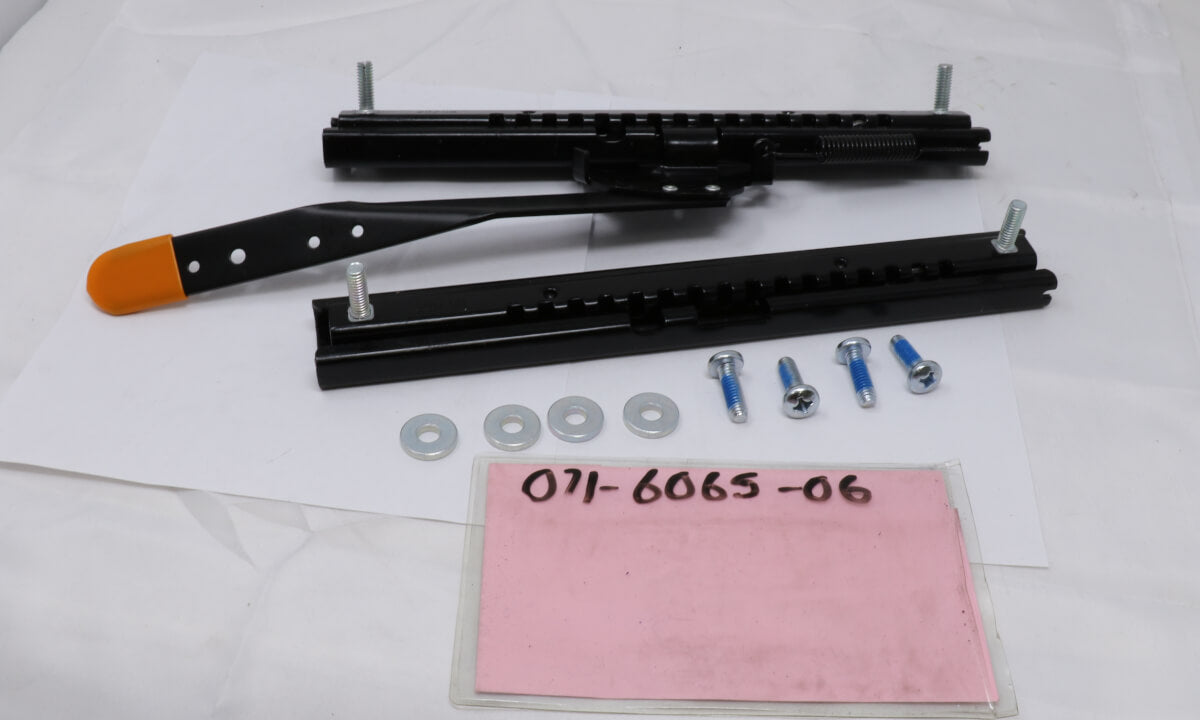

236.3#071-6065-06
SEAT RAILS for 071-6065-00/071-6065-22
Qty Used: 1Regular price $92.87 USDRegular priceUnit price per
-
236.4#071-6065-07
Seat Switch for 071-6065-00/071-6065-22
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-

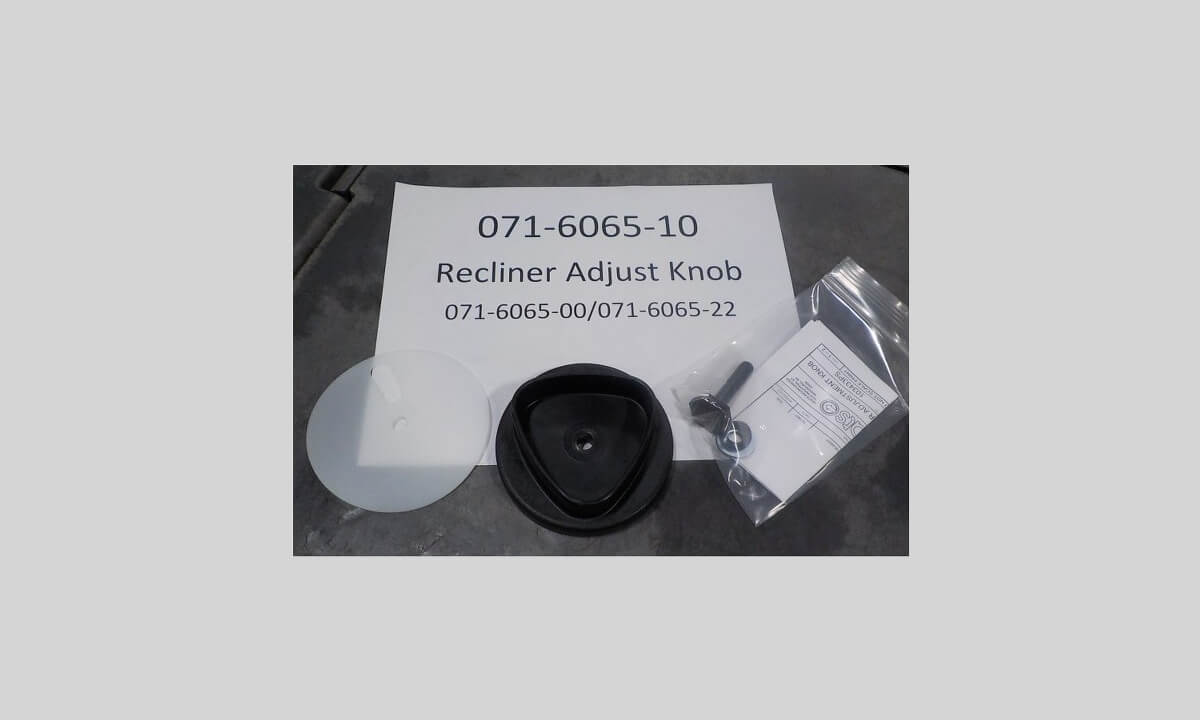

236.5#071-6065-10
Recliner Adjust Knob for 071-6065-00/71-6065-22
Qty Used: 1Regular price $29.99 USDRegular priceUnit price per
-
236.6#071-6065-13
Bellows w/Hardware for 071-6065-22
Qty Used: 1Regular price $59.99 USDRegular priceUnit price per
-
236.7#071-6065-14
OBSOLETE USE 071-6063-00
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
236.8#071-6065-15
Back Cover for I3M - Recl - Logos for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
236.9#071-6065-16
Cushion Cover Kit for I3M - Logo for 071-6065-22
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
241.1#013-0054-00
1/4-20 Cage Nut
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
241.2#018-8052-00
1/4-20 X 3/4 GR 5 Hex Bolts
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
241.3#026-2230-00
Adjustable Foot Plate--Orange
Qty Used: 1Regular price $66.33 USDRegular priceUnit price per
-
241.4#040-6080-00
Ratchet Fastener - Floorboard
Qty Used: 14Regular price $2.91 USDRegular priceUnit price per
-
241.5#079-3155-00
2019 Outlaw Floorboard--Orange
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
241.6#081-0050-00
Mat (Floor)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
241.7#081-0051-00
Mat (Foot Plate)
Qty Used: 1Regular price $72.99 USDRegular priceUnit price per
-
261#089-0006-00
2019 2x2 R SERIES Outlaw Folding Rops
Qty Used: 1Regular price $436.43 USDRegular priceUnit price per
-
274#091-4003-22
2022 Powered by Kawi Decal
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
275#091-4004-22
2022 Powered By Kohler Decal
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
277#091-4025-00
2019 Rogue 852cc Backplate Cluster
Qty Used: 1Regular price $13.12 USDRegular priceUnit price per
-
278#091-4026-00
2019 Rogue 999cc Backplate Cluster
Qty Used: 1Regular price $13.12 USDRegular priceUnit price per
-
288#091-4050-00
Heat Shield (Fiberglass Adhesive)
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
