Control Panels
Parts Index

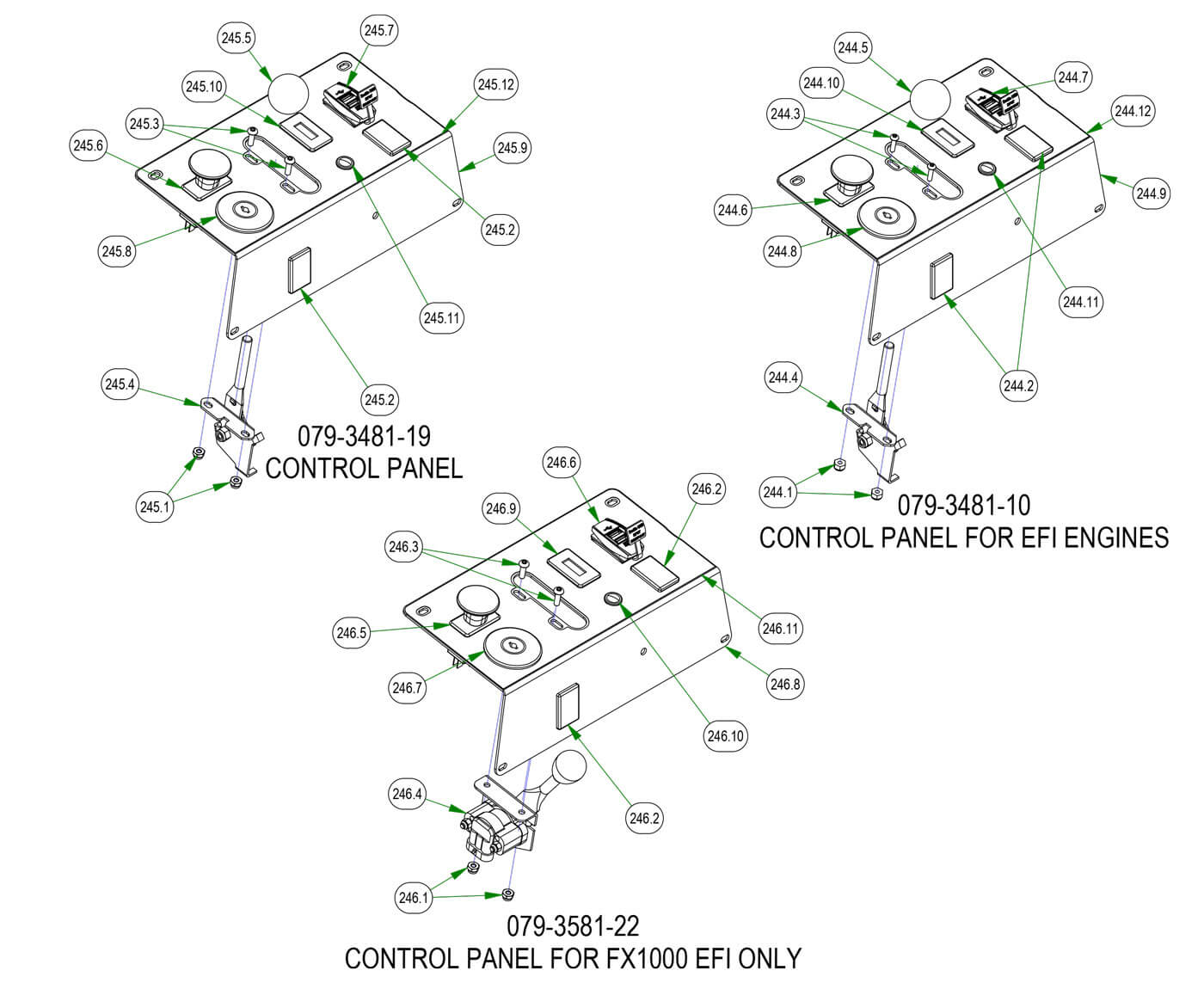

- 244 Rogue/Rebel EFI Control Panel Assy (Qty 1)
- 244.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 244.2 Light Plug (Qty 2)
- 244.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 244.4 Universal Throttle Head - 2012 (Qty 1)
- 244.5 Throttle / Brake Head Ball (Qty 1)
- 244.6 PTO Engager-Switch for Blades (Qty 1)
- 244.7 USB Port (Qty 1)
- 244.8 Ignition Switch (Qty 1)
- 244.9 Ignition Switch (Qty 1)
- 244.10 Tachometer-Kohler/Yamaha EFI (Qty 1)
- 244.11 Oil Light (Qty 1)
- 244.12 2022 Rebel/ Rogue Control Panel Decal (Qty 1)
- 245 Rebel/Rogue Control Panel Assy (Qty 1)
- 245.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 245.2 Light Plug (Qty 2)
- 245.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 245.4 Universal Throttle Head - 2012 (Qty 1)
- 245.5 Throttle / Brake Head Ball (Qty 1)
- 245.6 PTO Engager-Switch for Blades (Qty 1)
- 245.7 USB Port (Qty 1)
- 245.8 Ignition Switch (Qty 1)
- 245.9 2022 Rebel Control Panel--Orange (Qty 1)
- 245.10 Tachometer-N310-0100-1018 (Qty 1)
- 245.11 Oil Light (Qty 1)
- 245.12 2022 Rebel/ Rogue Control Panel Decal (Qty 1)
- 246.1 10-24 Nylon Insert Locknut Zin (Qty 2)
- 246.2 Light Plug (Qty 2)
- 246.3 10-24 X 5/8 BS C/S 18-8 SS (Qty 2)
- 246.4 Kawasaki \ Kohler Drive by Wire Throttle (Qty 1)
- 246.5 PTO Engager-Switch for Blades (Qty 1)
- 246.6 USB Port (Qty 1)
- 246.7 Ignition Switch (Qty 1)
- 246.8 2022 Rebel Control Panel--Orange (Qty 1)
- 246.9 Tachometer-Kohler/Yamaha EFI (Qty 1)
- 246.10 Oil Light (Qty 1)
- 246.11 2022 Rebel/ Rogue Control Panel Decal (Qty 1)
-
No sequence found for SKU:
Rogue/Rebel EFI Control Panel Assy
Regular price $0.00 USDRegular priceUnit price per
-
244.1245.1246.1#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
244.2245.2246.2#018-1040-00
Light Plug
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
244.3245.3246.3#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
244.4245.4#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
244.5245.5#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
244.6245.6246.5#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
-
244.8244.9245.8246.7#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
244.10246.9#083-4050-00
Tachometer-Kohler/Yamaha EFI
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
-
244.12245.12246.11#091-4009-22
2022 Rebel/ Rogue Control Panel Decal
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
245#079-3481-19
Rebel/Rogue Control Panel Assy
Qty Used: 1Regular price $109.00 USDRegular priceUnit price per
-
245.10#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
246.4#055-3001-00
Kawasaki \ Kohler Drive by Wire Throttle
Qty Used: 1Regular price $79.99 USDRegular priceUnit price per
