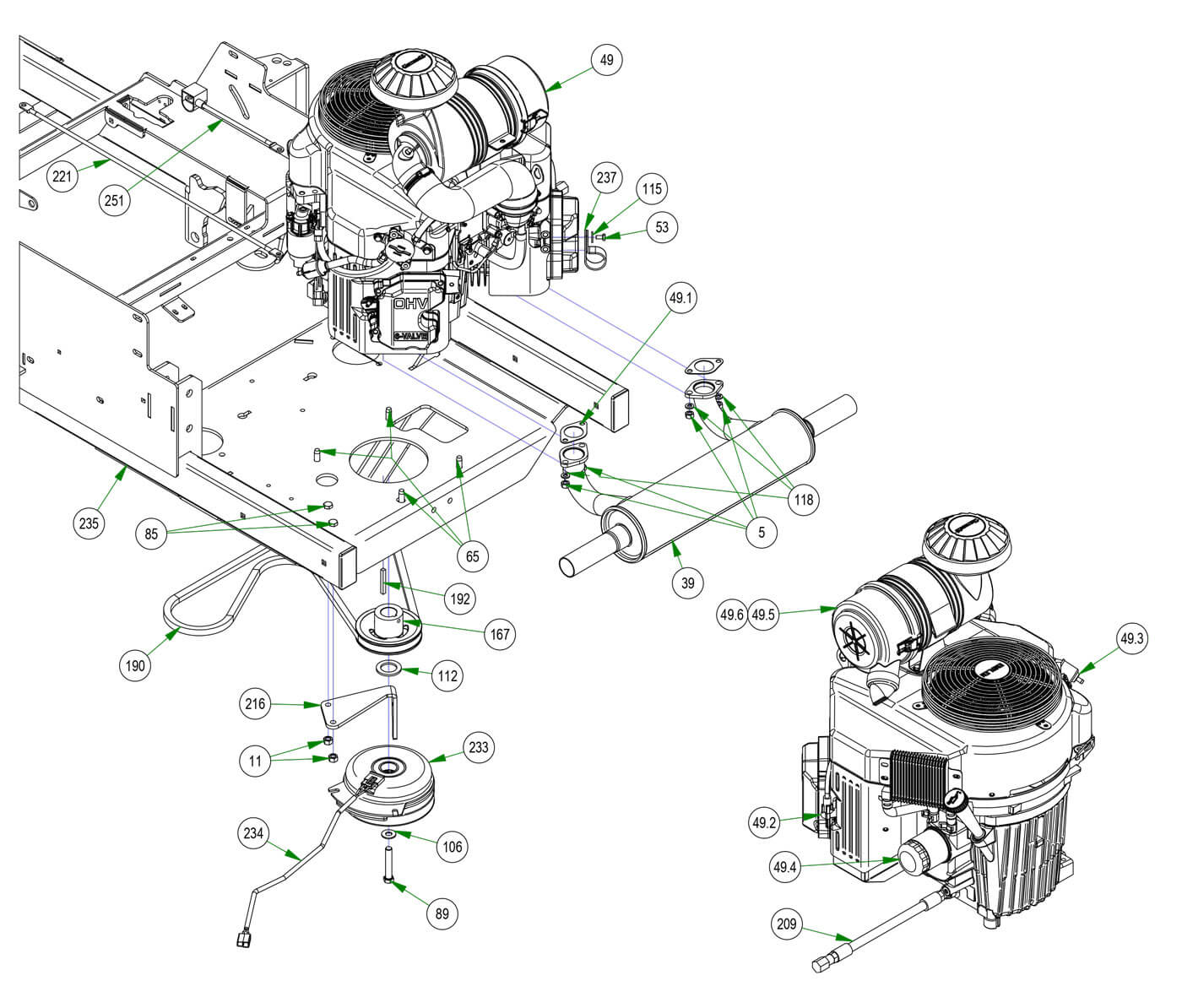

999cc Kawasaki FX-1000
Parts Index
- 5 M8 - 1.25 Stainless Steel Nut (Qty 4)
- 11 3/8-16 Hex Nuts Zinc (Qty 2)
- 32 1 1/2x 3 Frame Plug (Qty 2)
- 39 2019 Rebel/Rogue Kawasaki 1000 Muffler (Qty 1)
- 49 2019 FX1000V Kawasaki Engine (Qty 1)
- 49.1 Exhaust Gasket for FX1000V Kawasaki (Qty 2)
- 49.2 Spark plug-Kawasaki NGKBPR2ES (Qty 2)
- 49.3 Universal Inline Fuel Filter (Qty 1)
- 49.4 Kawasaki Oil Filter (Qty 1)
- 49.5 Canister Air Fil Outer2010&Old (Qty 1)
- 49.6 Canister Air Filter - Inner (Qty 1)
- 53 M6-1.0x12mm Bolt 8.8 (Qty 1)
- 65 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 85 3/8-16 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 89 7/16-20x2.5” Hex Bolt GR 8 W/ Patch (Qty 1)
- 106 3/8 USS Flat Washer Zinc (Qty 1)
- 112 1.140x1.750x .132 Flat Washer (Qty 1)
- 115 1/4 USS Flat Washer Zinc (Qty 1)
- 118 5/16 Lock washer Zinc (Qty 4)
- 167 4 3/4 Motor Pulley (Qty 1)
- 190 2019 & up Rogue Pump Belt 68" (Qty 1)
- 192 1/4 X 2 Square Key Stock (Qty 1)
- 209 12" Kawasaki Oil Drain (Qty 1)
- 216 PTO Engager Holder-Clutch--Plated (Qty 1)
- 221 24 Red Battery Cable (Qty 1)
- 233 Revolt, Rogue, Rebel, HD Clutch (Qty 1)
- 234 Clutch Pigtail (Qty 1)
- 235 2023 Rogue Frame--Orange (Qty 1)
- 237 Diesel Hydraulic Hose Clamp (Qty 1)
- 251 Rebel, Rogue Ground Wire (Qty 1)
- 253 2019 Harness Adaptor-R-Series FX/35KA (Qty 1)
-
5#013-0075-00
M8 - 1.25 Stainless Steel Nut
Qty Used: 4Regular price $2.99 USDRegular priceUnit price per
-
11#013-6014-00
3/8-16 Hex Nuts Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
32#014-9003-00
1 1/2x 3 Frame Plug
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
39#015-1010-00
2019 Rebel/Rogue Kawasaki 1000 Muffler
Qty Used: 1Regular price $199.00 USDRegular priceUnit price per
-
49#015-9911-00
2019 FX1000V Kawasaki Engine
Qty Used: 1Regular price $2,799.99 USDRegular priceUnit price per
-
49.1#015-1010-01
Exhaust Gasket for FX1000V Kawasaki
Qty Used: 2Regular price $7.99 USDRegular priceUnit price per
-
49.2#015-8001-00
Spark plug-Kawasaki NGKBPR2ES
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
49.3#063-6000-00
Universal Inline Fuel Filter
Qty Used: 1Regular price $13.26 USDRegular priceUnit price per
-
49.4#063-8017-00
Kawasaki Oil Filter
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
49.5#063-8019-00
Canister Air Fil Outer2010&Old
Qty Used: 1Regular price $33.50 USDRegular priceUnit price per
-
49.6#063-8020-00
Canister Air Filter - Inner
Qty Used: 1Regular price $30.51 USDRegular priceUnit price per
-
53#018-0025-00
M6-1.0x12mm Bolt 8.8
Qty Used: 1Regular price $2.69 USDRegular priceUnit price per
-
65#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
85#018-5040-00
3/8-16 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
89#018-5300-21
7/16-20x2.5” Hex Bolt GR 8 W/ Patch
Qty Used: 1Regular price $3.39 USDRegular priceUnit price per
-
106#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
112#019-6029-00
1.140x1.750x .132 Flat Washer
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
115#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
118#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
167#033-5035-00
4 3/4 Motor Pulley
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
190#041-8051-00
2019 & up Rogue Pump Belt 68"
Qty Used: 1Regular price $74.99 USDRegular priceUnit price per
-
192#042-5020-00
1/4 X 2 Square Key Stock
Qty Used: 1Regular price $2.92 USDRegular priceUnit price per
-
209#051-5407-00
12" Kawasaki Oil Drain
Qty Used: 1Regular price $39.79 USDRegular priceUnit price per
-
216#057-5906-00
PTO Engager Holder-Clutch--Plated
Qty Used: 1Regular price $19.32 USDRegular priceUnit price per
-
221#064-5300-00
24 Red Battery Cable
Qty Used: 1Regular price $20.42 USDRegular priceUnit price per
-
-
234#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
235#070-2305-00
2023 Rogue Frame--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
237#072-5000-00
Diesel Hydraulic Hose Clamp
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
251#086-0005-00
Starter Cable
Qty Used: 1Regular price $9.28 USDRegular priceUnit price per
-
253#086-9002-19
2019 Harness Adaptor-R-Series FX/35KA
Qty Used: 1Regular price $18.96 USDRegular priceUnit price per
