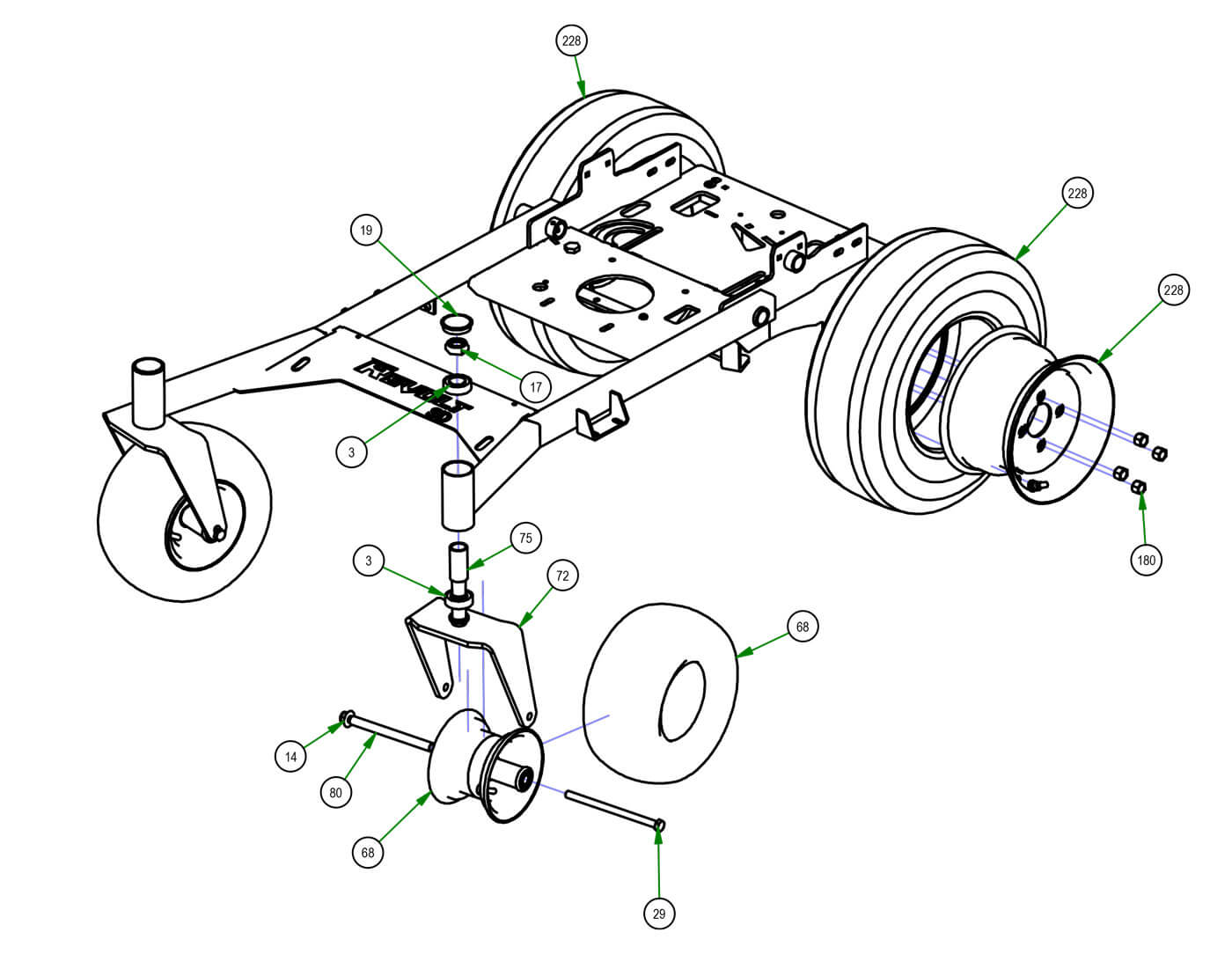

Tires & Front Spindles
Parts Index
- 3 Caster Bearing (Qty 4)
- 14 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 17 1" Nylock Nut 1/2 Nut - Fine (Qty 2)
- 18 5/16-18 Nylock Jam Nut (Qty 2)
- 19 Bearing Retainer Cap (Qty 2)
- 25 1-14 X 5 BOLT GR 8 ZC YELLOW (Qty 2)
- 29 1/2-13x8 1/2 Gr5 Hex Bolt (Qty 2)
- 42 1/2-13 Nylon Insert Jam Locknut (Qty 1)
- 56 1/2 Flat Washer (Qty 1)
- 62 1/4 USS Flat Washer Zinc (Qty 1)
- 68 13x6.50-6 Caster Front (Qty 2)
- 71 Ball Bearing w/clip; 99502H-NR; 5/8" Bore (Qty 4)
- 72 ZT, AVENG Front fork (Qty 2)
- 74 1/8" Drive-in Grease Fitting No Ball (Qty 1)
- 75 MZ/ZT/Mav/ R Series Front Bearing Spacer (Qty 2)
- 80 Front Wheel Spanner-All Models (Qty 2)
- 132 Spacer ( Front Fork and Suspension ) (Qty 2)
- 145 2023 Revolt SD Frame Weldment--Orange (Qty 1)
- 180 Acorn Lug Nut (Qty 8)
- 228 36" Revolt Reaper Wheel Assy. 21x7x10 (Qty 2)
-
68#022-2017-00
13x6.50-6 Caster Front
Qty Used: 2Regular price $87.99 USDRegular priceUnit price per
-
228#022-4041-00
36" Revolt Reaper Wheel Assy. 21x7x10
Qty Used: 2Regular price $165.99 USDRegular priceUnit price per
-
180#013-3000-00
Acorn Lug Nut
Qty Used: 8Regular price $2.99 USDRegular priceUnit price per
-
145#070-5223-00
2023 Revolt SD Frame Weldment--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
132#058-1000-00
Spacer ( Front Fork and Suspension )
Qty Used: 2Regular price $5.83 USDRegular priceUnit price per
-
80#025-5202-00
Front Wheel Spanner-All Models
Qty Used: 2Regular price $9.49 USDRegular priceUnit price per
-
75#025-0003-00
MZ/ZT/Mav/ R Series Front Bearing Spacer
Qty Used: 2Regular price $13.12 USDRegular priceUnit price per
-
74#024-3050-00
1/4" Drive-in Grease Fitting
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
72#023-0003-00
ZT, AVENG Front fork
Qty Used: 2Regular price $36.49 USDRegular priceUnit price per
-
71#022-7009-00
Ball Bearing w/clip; 99502H-NR; 5/8" Bore
Qty Used: 4Regular price $12.49 USDRegular priceUnit price per
-
3#010-1050-00
Caster Bearing
Qty Used: 4Regular price $17.19 USDRegular priceUnit price per
-
62#019-7040-00
1/4 USS Flat Washer Zinc
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
56#019-2040-00
1/2 Flat Washer
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
42#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
29#018-0040-00
1/2-13x8 1/2 Gr5 Hex Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
25#018-0005-00
1-14 X 5 BOLT GR 8 ZC YELLOW
Qty Used: 2Regular price $5.89 USDRegular priceUnit price per
-
19#014-2025-00
Bearing Retainer Cap
Qty Used: 2Regular price $2.49 USDRegular priceUnit price per
-
18#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
17#013-9004-00
1" Nylock Nut 1/2 Nut - Fine
Qty Used: 2Regular price $3.29 USDRegular priceUnit price per
-
14#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
