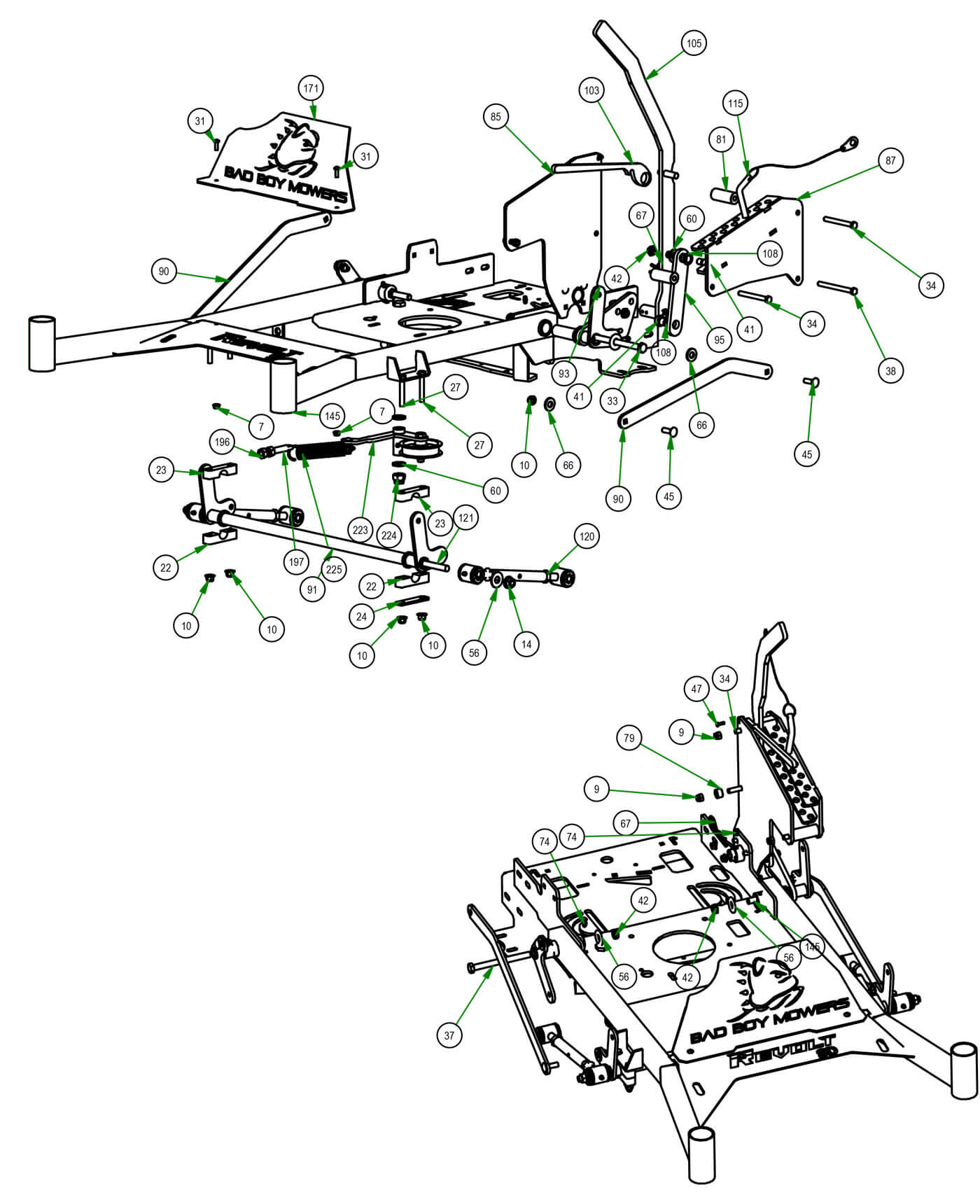

SD Frame
Parts Index
- 7 1/4-20 Nylon Insert Flange Nut (Qty 2)
- 8 10-24 Nylon Insert Locknut Zin (Qty 1)
- 9 3/8-16 Nylon Insert Locknut Zi (Qty 5)
- 10 3/8 Nylock Flange Nut (Qty 8)
- 13 5/16-18 Nylon Flange Nut (Qty 2)
- 14 1/2-13 Nylon Insert Flange Nut (Qty 2)
- 22 2017 Magnum Pillow Block-Male (Qty 2)
- 23 2017 Magnum Pillow Block-Female (Qty 2)
- 24 2017 Magnum Pillow Block-Metal Plate (Qty 1)
- 27 3/8x2 1/2" Hex Bolt (Qty 4)
- 31 1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head (Qty 2)
- 33 1/2-13 X 6 HEX CAP SCREW GR 5 ZC/ROHS 2 INCH MINIM (Qty 1)
- 34 3/8-16x3-1/2 Grade 5 Hex Bolt (Qty 2)
- 37 1/2-13x5 1/2 Hex Bolt Grade 5 (Qty 1)
- 38 3/8-16 X 4-1/4 GR 5 Hex Bolt (Qty 1)
- 41 5/8 x 5/8 Shoulder Bolt (Qty 2)
- 42 1/2-13 Nylon Insert Jam Locknut (Qty 5)
- 45 3/8-16 X 1-1/4 Carriage Bolt (Qty 4)
- 47 10-24 X 5/8 BS C/S 18-8 SS (Qty 1)
- 53 5/16-18 X 1 Carriage Bolt Zinc (Qty 2)
- 56 1/2 Flat Washer (Qty 7)
- 60 .630 ID X 1.122 OD X .142 THK (Qty 4)
- 66 .505 ID X 1 OD X .128 THK Washer (Qty 4)
- 74 1/8" Drive-in Grease Fitting No Ball (Qty 4)
- 79 ACS Spacer 3/4x3/8x1/2 (Qty 1)
- 81 Revolt Spacer 2.5" (Qty 3)
- 85 2023 SD Inner Adjustment Plate--Orange (Qty 1)
- 91 Revolt Front Actuator Bar Weldment--Black (Qty 1)
- 92 Revolt Rear Actuator Bar Weldment-RH--Black (Qty 1)
- 95 Lever Secondary Linkage--Black (Qty 1)
- 103 2019 Stand On Deck Lever Lock--Black (Qty 1)
- 108 Bronze Bushing - SF-2024-8 (Qty 2)
- 115 2023 Revolt Deck Height Pin (Qty 1)
- 120 Toplink (Qty 2)
- 121 2020 36" Stand On Turnbuckle Rod (Qty 1)
- 145 2023 Revolt SD Frame Weldment--Orange (Qty 1)
- 196 1/2-13 Hex Nuts Zinc (Qty 2)
- 197 All Thread (Qty 1)
- 223 2020 36" Stand On Drive Pulley Assembly (Qty 1)
- 224 5/8-11 Nylon Insert Locknut Zi (Qty 1)
- 225 2019 Deck Spring - Big Diameter (Qty 1)
-
7#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
8#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
9#013-5041-00
3/8-16 Nylon Insert Locknut Zi
Qty Used: 5Regular price $0.69 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 8Regular price $1.49 USDRegular priceUnit price per
-
13#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
14#013-8050-00
1/2-13 Nylon Insert Flange Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
22#017-9077-00
2017 Magnum Pillow Block-Male
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-
23#017-9078-00
2017 Magnum Pillow Block-Female
Qty Used: 2Regular price $19.89 USDRegular priceUnit price per
-
24#017-9079-00
2017 Magnum Pillow Block-Metal Plate
Qty Used: 1Regular price $19.89 USDRegular priceUnit price per
-
27#018-0028-00
3/8x2 1/2" Hex Bolt
Qty Used: 4Regular price $3.99 USDRegular priceUnit price per
-
No sequence found for SKU:
1/4"-20 x 3/4 Black Oxide 18-8 Stainless Pan Head
Regular price $0.00 USDRegular priceUnit price per
-
33#018-0062-00
1/2-13 X 6" Hex Head Bolt Gr5
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
34#018-1010-00
3/8-16x3-1/2 Grade 5 Hex Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
37#018-1090-00
1/2-13x5 1/2 Hex Bolt Grade 5
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
38#018-2005-00
3/8-16 X 4-1/4 GR 5 Hex Bolt
Qty Used: 1Regular price $2.59 USDRegular priceUnit price per
-
41#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
42#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 5Regular price $1.59 USDRegular priceUnit price per
-
45#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
47#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 1Regular price $0.79 USDRegular priceUnit price per
-
53#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
56#019-2040-00
1/2 Flat Washer
Qty Used: 7Regular price $1.39 USDRegular priceUnit price per
-
60#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
66#019-8054-00
.505 ID X 1 OD X .128 THK Washer
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
74#024-3050-00
1/4" Drive-in Grease Fitting
Qty Used: 4Regular price $0.99 USDRegular priceUnit price per
-
79#025-2004-00
ACS Spacer 3/4x3/8x1/2
Qty Used: 1Regular price $14.58 USDRegular priceUnit price per
-
81#025-5343-00
Revolt Spacer 2.5"
Qty Used: 3Regular price $10.29 USDRegular priceUnit price per
-
91#028-0036-00
Revolt Front Actuator Bar Weldment--Black
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
92#028-0037-00
Revolt Rear Actuator Bar Weldment-RH--Black
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
103#031-0093-00
2019 Stand On Deck Lever Lock--Black
Qty Used: 1Regular price $22.54 USDRegular priceUnit price per
-
108#032-5052-00
Bronze Bushing - SF-2024-8
Qty Used: 2Regular price $4.37 USDRegular priceUnit price per
-
115#040-4004-00
2023 Revolt Deck Height Pin
Qty Used: 1Regular price $14.99 USDRegular priceUnit price per
-
-
121#048-6058-00
2020 36" Stand On Turnbuckle Rod
Qty Used: 1Regular price $39.99 USDRegular priceUnit price per
-
145#070-5223-00
2023 Revolt SD Frame Weldment--Orange
Qty Used: 1Regular price $899.99 USDRegular priceUnit price per
-
196#013-7018-00
1/2-13 Hex Nuts Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
197#018-2004-50
All Thread
Qty Used: 1Regular price $12.09 USDRegular priceUnit price per
-
223#039-6947-20
2020 36" Stand On Drive Pulley Assembly
Qty Used: 1Regular price $54.99 USDRegular priceUnit price per
-
224#013-7021-00
5/8-11 Nylon Insert Locknut Zi
Qty Used: 1Regular price $1.19 USDRegular priceUnit price per
-
225#034-9050-00
2019 Deck Spring - Big Diameter
Qty Used: 1Regular price $15.99 USDRegular priceUnit price per
