Podium

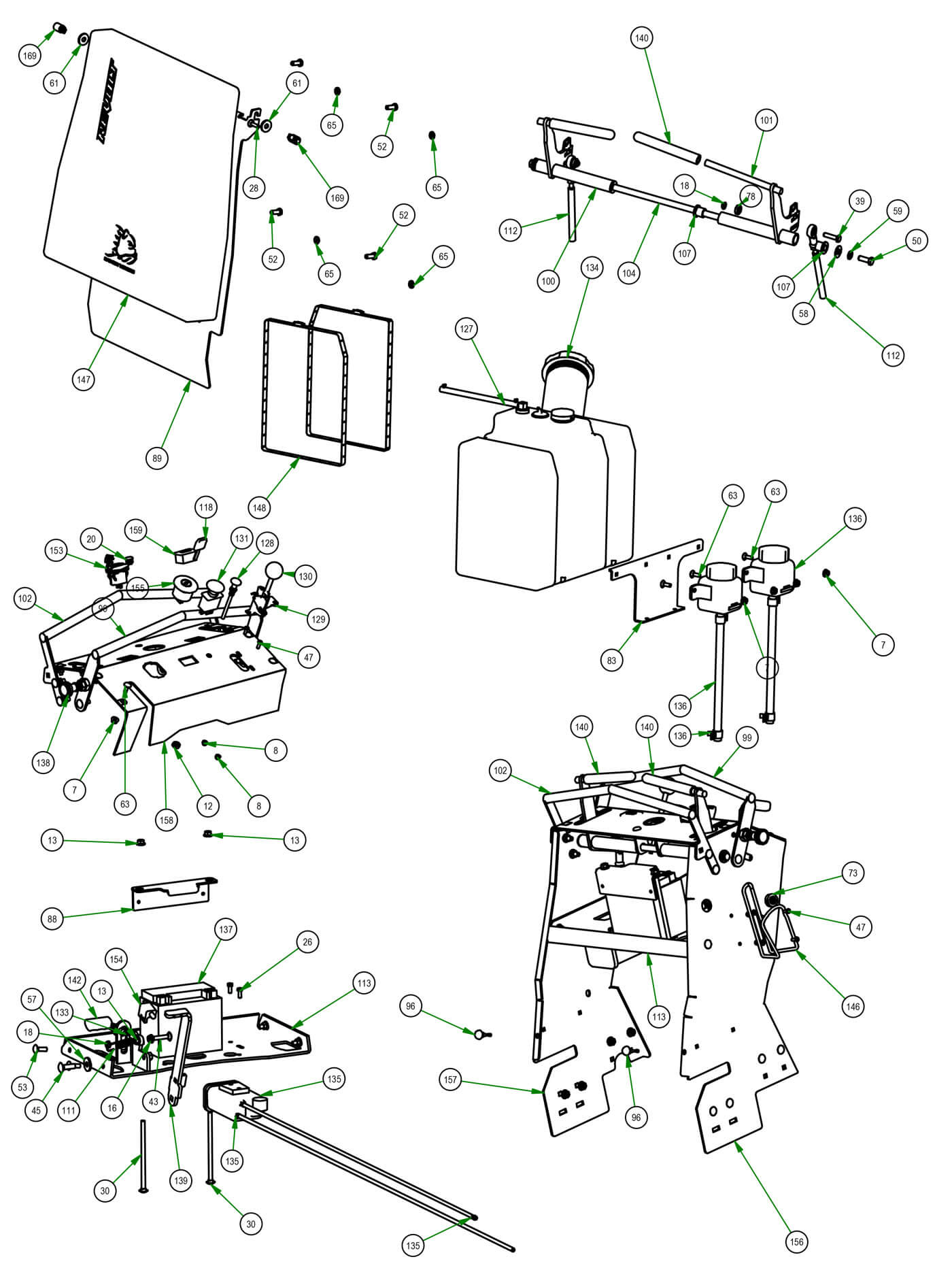

Parts Index
- 4 8-32 Hex M/S Nut (Qty 2)
- 7 1/4-20 Nylon Insert Flange Nut (Qty 12)
- 8 10-24 Nylon Insert Locknut Zin (Qty 4)
- 10 3/8 Nylock Flange Nut (Qty 1)
- 12 3/8-24 Hex Nut Zinc (Qty 1)
- 13 5/16-18 Nylon Flange Nut (Qty 21)
- 16 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 18 5/16-18 Nylock Jam Nut (Qty 2)
- 20 5/8 Round Insert - Deck (Qty 1)
- 26 M6-1.0 X 16MM HEX BOLT CL 8 (Qty 2)
- 28 1/4 - 20 x 1 Carriage Bolt (Qty 2)
- 30 5/16x6 Carriage Bolt-Grade 5 (Qty 2)
- 36 12-24 x 1/2 HWH Bolt (Qty 2)
- 39 5/16-18 X 1-1/4 GR 5 Hex Bolt (Qty 2)
- 43 5/16-18 X 1-1/2 Carriage Bolt (Qty 1)
- 45 3/8-16 X 1-1/4 Carriage Bolt (Qty 1)
- 47 10-24 X 5/8 BS C/S 18-8 SS (Qty 4)
- 50 3/8-16 X 1 GR 5 Hex Bolts Zinc (Qty 2)
- 52 5/16-18 X 3/4 GR 5 Hex Bolts Z (Qty 4)
- 53 5/16-18 X 1 Carriage Bolt Zinc (Qty 18)
- 55 .390x.750x.062 Nylon Washer (Qty 4)
- 57 .390 ID Plastic Washer (Qty 1)
- 58 3/8 USS Flat Washer Zinc (Qty 2)
- 59 3/8 Lockwasher Zinc (Qty 2)
- 61 .360 ID Plastic Washer (Qty 2)
- 63 1/4 x 3/4 Carriage Bolt (Qty 12)
- 65 5/16 Lock washer Zinc (Qty 4)
- 78 ACS Spacer 3/4x3/8x1/4 (Qty 2)
- 89 2023 36-SD Pad Plate--Orange (Qty 1)
- 96 2023 Floor Board Rubber Bumpers (Qty 2)
- 99 36" Front Control Arm Stop Weldment--Black (Qty 1)
- 102 36-SD Control Arm Stop Weldment--Black (Qty 1)
- 104 2020 36" Stand On Drive Pivot Bar (Qty 1)
- 107 2023 Revolt Drive Arm Bushings (Qty 4)
- 111 Brake Spring (Qty 1)
- 112 2019 Stand On Push Rod Assembly (Qty 2)
- 118 Ignition Key (Qty 1)
- 124 1/4 Vinyl 46" EPA Line (Qty 1)
- 125 3/16 Vinyl 55" EPA Line (Qty 1)
- 127 Revolt Fuel Line Assy (Qty 1)
- 128 Choke - All MZ/ZT/Mav/Rebel/Rogue (Qty 1)
- 129 Universal Throttle Head - 2012 (Qty 1)
- 130 Throttle / Brake Head Ball (Qty 1)
- 131 PTO Engager-Switch for Blades (Qty 1)
- 133 Brake Cable Walk Behind/Revolt (Qty 1)
- 134 Fuel Kelch Cap - 3.5 Neck (Qty 1)
- 135 MZ/Revolt Kawasaki EPA Cannister Assy (Qty 1)
- 136 2017 ZT Hydro Tank Assembly (Qty 2)
- 137 Revolt Battery (Qty 1)
- 138 Plunger 5/8-11 All Stainless Steel (Qty 1)
- 139 2019 Stand On Brake Handle--Black (Qty 1)
- 140 2019 Revolt Cushioned hand Grip (Qty 2)
- 142 Rubber Brake Grip-cZT/ZT 2013 (Qty 1)
- 146 2019 Stand-On Cup Holder (Qty 1)
- 147 2023 Revolt SD Pad (Qty 1)
- 148 Band 13.5" (Qty 2)
- 149 MZ Tank Hose Clamp 1/4 Vinyl (Qty 2)
- 150 3/16" Vinyl Hose Clamp (Qty 2)
- 152 Magnet-Steering Arm-Stand ON (Qty 2)
- 153 USB Port (Qty 1)
- 154 Safety Switch (Qty 1)
- 155 Ignition Switch (Qty 1)
- 158 36" Podium Front Panel Weldment--Orange (Qty 1)
- 159 Tachometer-N310-0100-1018 (Qty 1)
- 160 Safety Switch Harness (Qty 2)
- 163 36" Control Panel (upper) (Qty 1)
- 164 36" Control Panel (lower) (Qty 1)
- 169 2023 Revolt Platform adjustable handles (Qty 2)
-
142#069-7000-00
Rubber Brake Grip-cZT/ZT 2013
Qty Used: 1Regular price $5.83 USDRegular priceUnit price per
-
146#071-6005-00
2019 Stand-On Cup Holder
Qty Used: 1Regular price $21.22 USDRegular priceUnit price per
-
147#071-6017-00
2023 Revolt SD Pad
Qty Used: 1Regular price $199.99 USDRegular priceUnit price per
-
148#072-0051-00
Band 13.5"
Qty Used: 2Regular price $10.60 USDRegular priceUnit price per
-
149#072-8070-00
MZ Tank Hose Clamp 1/4 Vinyl
Qty Used: 2Regular price $1.45 USDRegular priceUnit price per
-
150#072-8073-00
3/16\" Vinyl Hose Clamp
Qty Used: 2Regular price $2.91 USDRegular priceUnit price per
-
152#077-1000-00
Magnet-Steering Arm-Stand ON
Qty Used: 2Regular price $13.85 USDRegular priceUnit price per
-
-
154#077-8073-00
Safety Switch
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
155#077-8076-00
Ignition Switch
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
158#079-4113-00
36" Podium Front Panel Weldment--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
159#083-4013-00
Tachometer-N310-0100-1018
Qty Used: 1Regular price $69.99 USDRegular priceUnit price per
-
160#086-0015-00
Safety Switch Harness
Qty Used: 2Regular price $65.67 USDRegular priceUnit price per
-
163#091-4056-00
36" Control Panel (upper)
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
164#091-4057-00
36" Control Panel (lower)
Qty Used: 1Regular price $9.99 USDRegular priceUnit price per
-
169#045-0001-00
2023 Revolt Platform adjustable handles
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
4#013-0001-00
8-32 Hex M/S Nut
Qty Used: 2Regular price $1.39 USDRegular priceUnit price per
-
7#013-2050-00
1/4-20 Nylon Insert Flange Nut
Qty Used: 12Regular price $1.39 USDRegular priceUnit price per
-
8#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
12#013-6051-00
3/8-24 Hex Nut Zinc
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
13#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 21Regular price $0.79 USDRegular priceUnit price per
-
16#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
18#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
20#014-3010-00
5/8 Round Insert - Deck
Qty Used: 1Regular price $1.39 USDRegular priceUnit price per
-
26#018-0024-00
M6-1.0 X 16MM HEX BOLT CL 8
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
28#018-0034-00
1/4 - 20 x 1 Carriage Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
30#018-0056-00
5/16x6 Carriage Bolt-Grade 5
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
36#018-1080-00
12-24 x 1/2 HWH Bolt
Qty Used: 2Regular price $1.99 USDRegular priceUnit price per
-
39#018-2006-00
5/16-18 X 1-1/4 GR 5 Hex Bolt
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
43#018-5020-00
5/16-18 X 1-1/2 Carriage Bolt
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
45#018-5043-00
3/8-16 X 1-1/4 Carriage Bolt
Qty Used: 1Regular price $0.99 USDRegular priceUnit price per
-
47#018-5200-00
10-24 X 5/8 BS C/S 18-8 SS
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
50#018-6049-00
3/8-16 X 1 GR 5 Hex Bolts Zinc
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
52#018-8063-00
5/16-18 X 3/4 GR 5 Hex Bolts Z
Qty Used: 4Regular price $0.69 USDRegular priceUnit price per
-
53#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 18Regular price $0.79 USDRegular priceUnit price per
-
55#019-2003-00
.390x.750x.062 Nylon Washer
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
57#019-2073-00
.390 ID Plastic Washer
Qty Used: 1Regular price $1.49 USDRegular priceUnit price per
-
58#019-5029-00
3/8 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
59#019-5037-00
3/8 Lockwasher Zinc
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
61#019-6042-00
.360 ID Plastic Washer
Qty Used: 2Regular price $0.00 USDRegular priceUnit price per
-
63#019-8040-00
1/4 x 3/4 Carriage Bolt
Qty Used: 12Regular price $1.49 USDRegular priceUnit price per
-
65#019-8051-00
5/16 Lock washer Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
78#025-2001-00
ACS Spacer 3/4x3/8x1/4
Qty Used: 2Regular price $14.58 USDRegular priceUnit price per
-
96#029-4011-00
2023 Floor Board Rubber Bumpers
Qty Used: 2Regular price $1.09 USDRegular priceUnit price per
-
99#031-0034-00
36" Front Control Arm Stop Weldment--Black
Qty Used: 1Regular price $0.00 USDRegular priceUnit price per
-
104#031-0094-00
2020 36" Stand On Drive Pivot Bar
Qty Used: 1Regular price $19.99 USDRegular priceUnit price per
-
107#032-0005-00
2023 Revolt Drive Arm Bushings
Qty Used: 4Regular price $1.89 USDRegular priceUnit price per
-
111#034-1025-00
Compact Outlaw Brake Spring
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
112#035-0006-19
2019 Stand On Push Rod Assembly
Qty Used: 2Regular price $43.78 USDRegular priceUnit price per
-
118#042-9000-00
Ignition Key
Qty Used: 1Regular price $3.69 USDRegular priceUnit price per
-
124#051-2020-01
1/4 Vinyl 46" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
125#051-2025-02
3/16 Vinyl 55" EPA Line
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
No sequence found for SKU:
Revolt Fuel Line Assy
Regular price $0.00 USDRegular priceUnit price per
-
128#054-8017-00
Choke - All MZ/ZT/Mav/Rebel/Rogue
Qty Used: 1Regular price $24.11 USDRegular priceUnit price per
-
129#055-2012-00
Universal Throttle Head - 2012
Qty Used: 1Regular price $23.87 USDRegular priceUnit price per
-
130#055-2013-00
Throttle Head Ball
Qty Used: 1Regular price $11.66 USDRegular priceUnit price per
-
131#056-8058-00
PTO Engager-Switch for Blades
Qty Used: 1Regular price $32.05 USDRegular priceUnit price per
-
133#064-3000-00
Brake Cable Walk Behind/Revolt
Qty Used: 1Regular price $29.18 USDRegular priceUnit price per
-
134#066-8076-00
Fuel Kelch Cap - 3.5 Neck
Qty Used: 1Regular price $29.95 USDRegular priceUnit price per
-
135#067-0015-02
MZ Kohler/Kawasaki EPA Cannister Assy
Qty Used: 1Regular price $53.01 USDRegular priceUnit price per
-
136#067-8090-03
2017 ZT Hydro Tank Assembly
Qty Used: 2Regular price $39.68 USDRegular priceUnit price per
-
137#068-8051-00
2019 Stand-On Battery
Qty Used: 1Regular price $119.99 USDRegular priceUnit price per
-
138#069-0002-00
Plunger 5/8-11 All Stainless Steel
Qty Used: 1Regular price $58.37 USDRegular priceUnit price per
-
139#069-2013-00
2019 Stand On Brake Handle--Black
Qty Used: 1Regular price $109.99 USDRegular priceUnit price per
-
140#069-2014-00
2019 Revolt Cushioned hand Grip
Qty Used: 2Regular price $7.28 USDRegular priceUnit price per
