Fenders

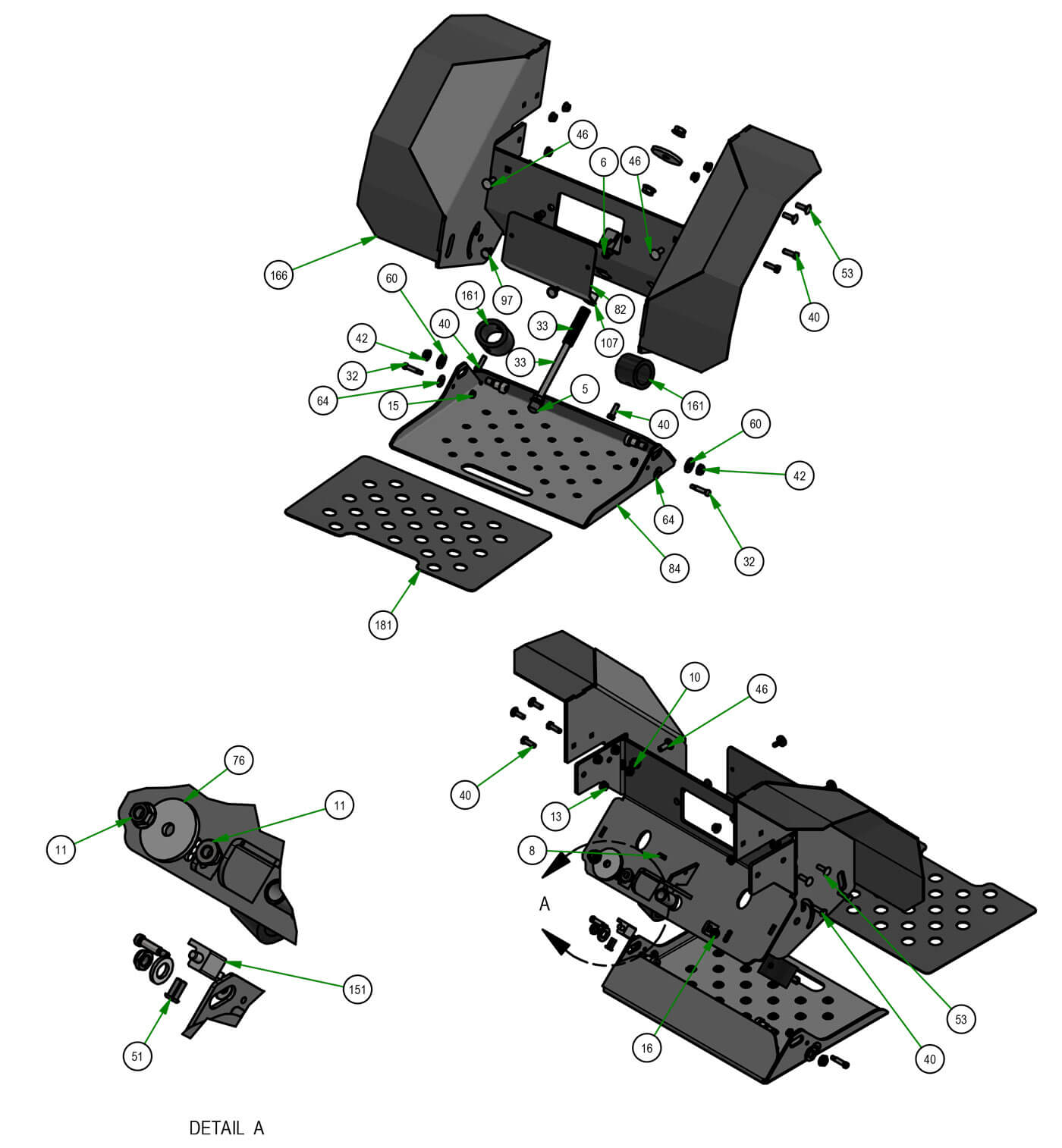

Parts Index
- 5 Hex Nut Cap (Qty 1)
- 6 Wellnut 1/4-20 x 5/8 (Qty 2)
- 8 10-24 Nylon Insert Locknut Zin (Qty 2)
- 10 3/8 Nylock Flange Nut (Qty 2)
- 11 1/2-13 Hex Fange Nuts Zinc w/ (Qty 2)
- 13 5/16-18 Nylon Flange Nut (Qty 8)
- 15 1/4-20 Hex Flange Nuts Zinc w/ (Qty 2)
- 16 5/16-18 Hex Flange Nuts Zinc w (Qty 2)
- 32 Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16" (Qty 2)
- 33 1/2-13 X 6 HEX CAP SCREW GR 5 ZC/ROHS 2 INCH MINIM (Qty 1)
- 40 5/16-18 X 1 GR 5 Hex Bolt Zinc (Qty 6)
- 41 5/8 x 5/8 Shoulder Bolt (Qty 2)
- 42 1/2-13 Nylon Insert Jam Locknut (Qty 2)
- 46 3/8 x 1 Carriage Bolt (Qty 2)
- 51 10-24 X 3/4 BS C/S 18-8 SS (Qty 2)
- 53 5/16-18 X 1 Carriage Bolt Zinc (Qty 4)
- 60 .630 ID X 1.122 OD X .142 THK (Qty 2)
- 64 5/16 USS Flat Washer Zinc (Qty 2)
- 76 ZT/CZT Deck Round Spacer Idler--Plated (Qty 1)
- 82 2019 Stand On Access Panel Plate--Black (Qty 1)
- 84 2020 36" Platform Plate--Orange (Qty 1)
- 97 1/4-20 x 3/4 Knurled Thumb Screw (Qty 2)
- 107 2023 Revolt Drive Arm Bushings (Qty 1)
- 110 3-1/8" x 0.75 OD x 0.568 ID Compression Spring (Qty 1)
- 151 2017? Walk Behind-Safety Switch (Qty 1)
- 161 2019 Revolt Platform Dampener (Qty 2)
- 181 Grip Tape for 026-0158-00 (Qty 1)
-
5#013-0029-00
Hex Nut Cap
Qty Used: 1Regular price $3.99 USDRegular priceUnit price per
-
6#013-0057-00
Wellnut 1/4-20 x 5/8
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
8#013-5019-00
10-24 Nylon Insert Locknut Zin
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
10#013-5202-00
3/8 Nylock Flange Nut
Qty Used: 2Regular price $1.49 USDRegular priceUnit price per
-
11#013-5300-00
1/2-13 Hex Fange Nuts Zinc w/
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
13#013-8049-00
5/16-18 Nylon Flange Nut
Qty Used: 8Regular price $0.79 USDRegular priceUnit price per
-
15#013-9001-00
1/4-20 Hex Flange Nuts Zinc w/
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
16#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
32#018-0059-00
Steel Shoulder Screw 1/4"-20 x 7/8" Diameter 5/16"
Qty Used: 2Regular price $3.99 USDRegular priceUnit price per
-
33#018-0062-00
1/2-13 X 6" Hex Head Bolt Gr5
Qty Used: 1Regular price $2.99 USDRegular priceUnit price per
-
40#018-2007-00
5/16-18 X 1 GR 5 Hex Bolt Zinc
Qty Used: 6Regular price $0.00 USDRegular priceUnit price per
-
41#018-3001-00
5/8 x 5/8 Shoulder Bolt
Qty Used: 2Regular price $14.59 USDRegular priceUnit price per
-
42#018-4010-00
1/2-13 Nylon Insert Jam Locknut
Qty Used: 2Regular price $1.59 USDRegular priceUnit price per
-
46#018-5044-00
3/8 x 1 Carriage Bolt
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
51#018-8057-00
10-24 X 3/4 BS C/S 18-8 SS
Qty Used: 2Regular price $0.69 USDRegular priceUnit price per
-
53#018-8065-00
5/16-18 X 1 Carriage Bolt Zinc
Qty Used: 4Regular price $0.79 USDRegular priceUnit price per
-
60#019-6017-00
.630 ID X 1.122 OD X .142 THK
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
64#019-8044-00
5/16 USS Flat Washer Zinc
Qty Used: 2Regular price $0.79 USDRegular priceUnit price per
-
76#025-0025-00
ZT/CZT Deck Round Spacer Idler--Plated
Qty Used: 1Regular price $6.62 USDRegular priceUnit price per
-
82#026-0063-00
2019 Stand On Access Panel Plate--Black
Qty Used: 1Regular price $33.16 USDRegular priceUnit price per
-
84#026-0158-00
2020 36" Platform Plate--Orange
Qty Used: 1Regular price $99.99 USDRegular priceUnit price per
-
97#030-0015-00
1/4-20 x 3/4 Knurled Thumb Screw
Qty Used: 2Regular price $14.99 USDRegular priceUnit price per
-
107#032-0005-00
2023 Revolt Drive Arm Bushings
Qty Used: 1Regular price $1.89 USDRegular priceUnit price per
-
110#034-1001-00
3-1/8" x 0.75 OD x 0.568 ID Compression Spring
Qty Used: 1Regular price $11.99 USDRegular priceUnit price per
-
151#077-0002-00
2017? Walk Behind-Safety Switch
Qty Used: 1Regular price $21.88 USDRegular priceUnit price per
-
161#087-0003-00
2019 Revolt Platform Dampener
Qty Used: 2Regular price $79.60 USDRegular priceUnit price per
-
181#088-0051-00
Grip Tape for 026-0158-00
Qty Used: 1Regular price $23.99 USDRegular priceUnit price per
