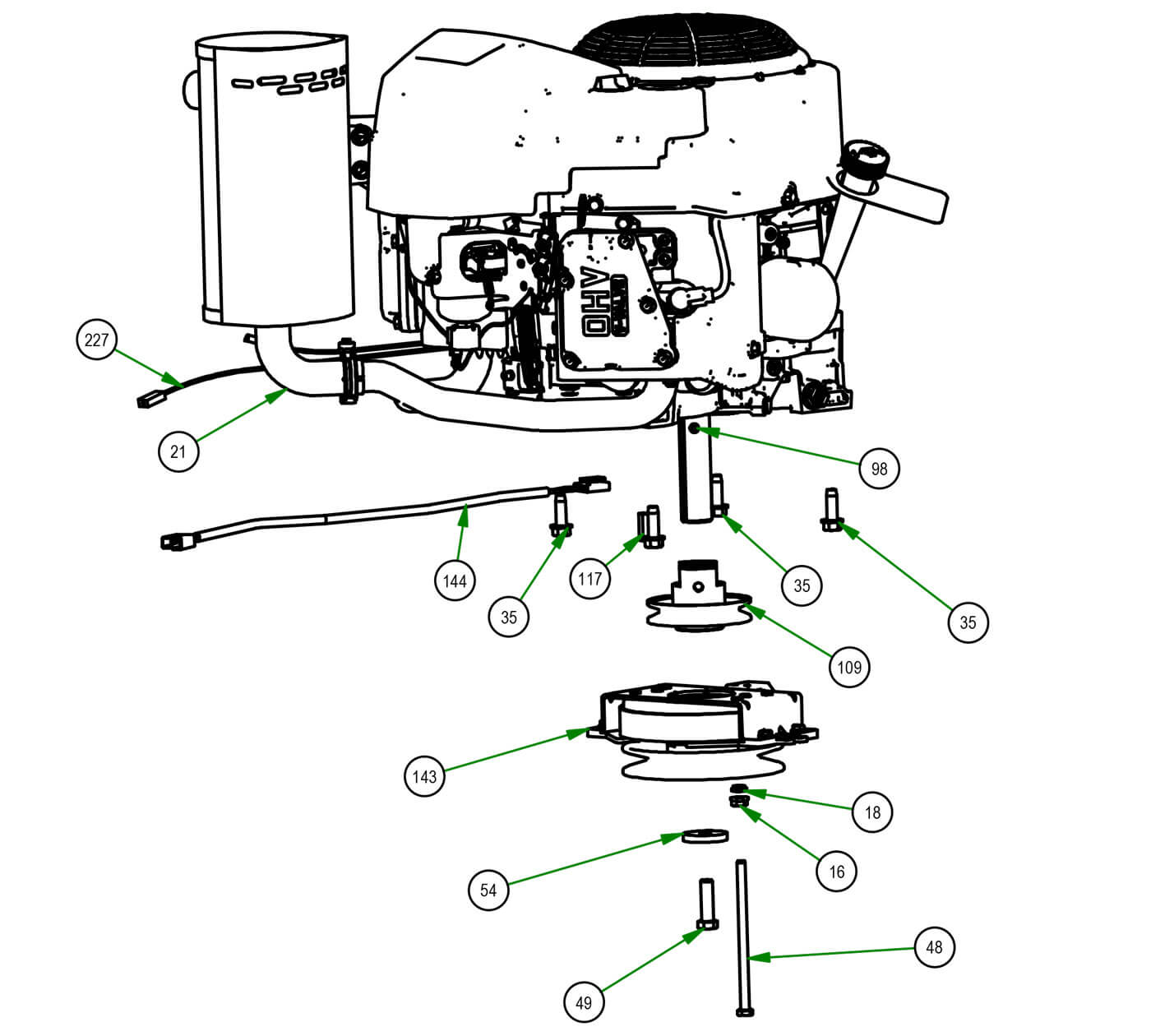

Engine
Parts Index
- 16 5/16-18 Hex Flange Nuts Zinc w (Qty 1)
- 18 5/16-18 Nylock Jam Nut (Qty 2)
- 21 Exhaust Assembly-2018 Kawasaki Walk Behind (Qty 1)
- 35 3/8 x 1 1/8 Engine Mounting Bolt (Qty 4)
- 48 5/16-18 X 5-1/2 GR 5 Hex Bolt (Qty 1)
- 49 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch (Qty 1)
- 54 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC (Qty 1)
- 98 5/16-24 x 1/4 Set Screw (Qty 1)
- 117 1/4 x 1 Square Key (Qty 1)
- 143 Clutch For 1-1/8" Shaft (Qty 1)
- 144 Clutch Pigtail (Qty 1)
- 227 Harness Adaptor-FX691, FX730 HD (Qty 1)
-
16#013-9002-00
5/16-18 Hex Flange Nuts Zinc w
Qty Used: 1Regular price $0.69 USDRegular priceUnit price per
-
18#013-9005-00
5/16-18 Nylock Jam Nut
Qty Used: 2Regular price $2.69 USDRegular priceUnit price per
-
21#015-0543-00
Exhaust Assembly-2018 Kawasaki Walk Behind
Qty Used: 1Regular price $219.99 USDRegular priceUnit price per
-
35#018-1075-00
3/8 x 1 1/8 Engine Mounting Bolt
Qty Used: 4Regular price $1.39 USDRegular priceUnit price per
-
48#018-5350-00
5/16-18 X 5-1/2 GR 5 Hex Bolt
Qty Used: 1Regular price $1.79 USDRegular priceUnit price per
-
49#018-5450-21
7/16-20 x 1.5\" Hex bolt GR 8 w/ Patch
Qty Used: 1Regular price $1.25 USDRegular priceUnit price per
-
54#019-0010-00
7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC
Qty Used: 1Regular price $5.39 USDRegular priceUnit price per
-
98#030-0050-00
5/16-24 x 1/4 Set Screw
Qty Used: 1Regular price $1.59 USDRegular priceUnit price per
-
117#042-6030-00
1/4 x 1 Square Key
Qty Used: 1Regular price $4.37 USDRegular priceUnit price per
-
-
144#070-2000-00
Clutch Pigtail
Qty Used: 1Regular price $19.85 USDRegular priceUnit price per
-
227#086-9002-00
Harness Adaptor-Outlaw FX-All
Qty Used: 1Regular price $43.78 USDRegular priceUnit price per
